Headlamp: Service and Repair

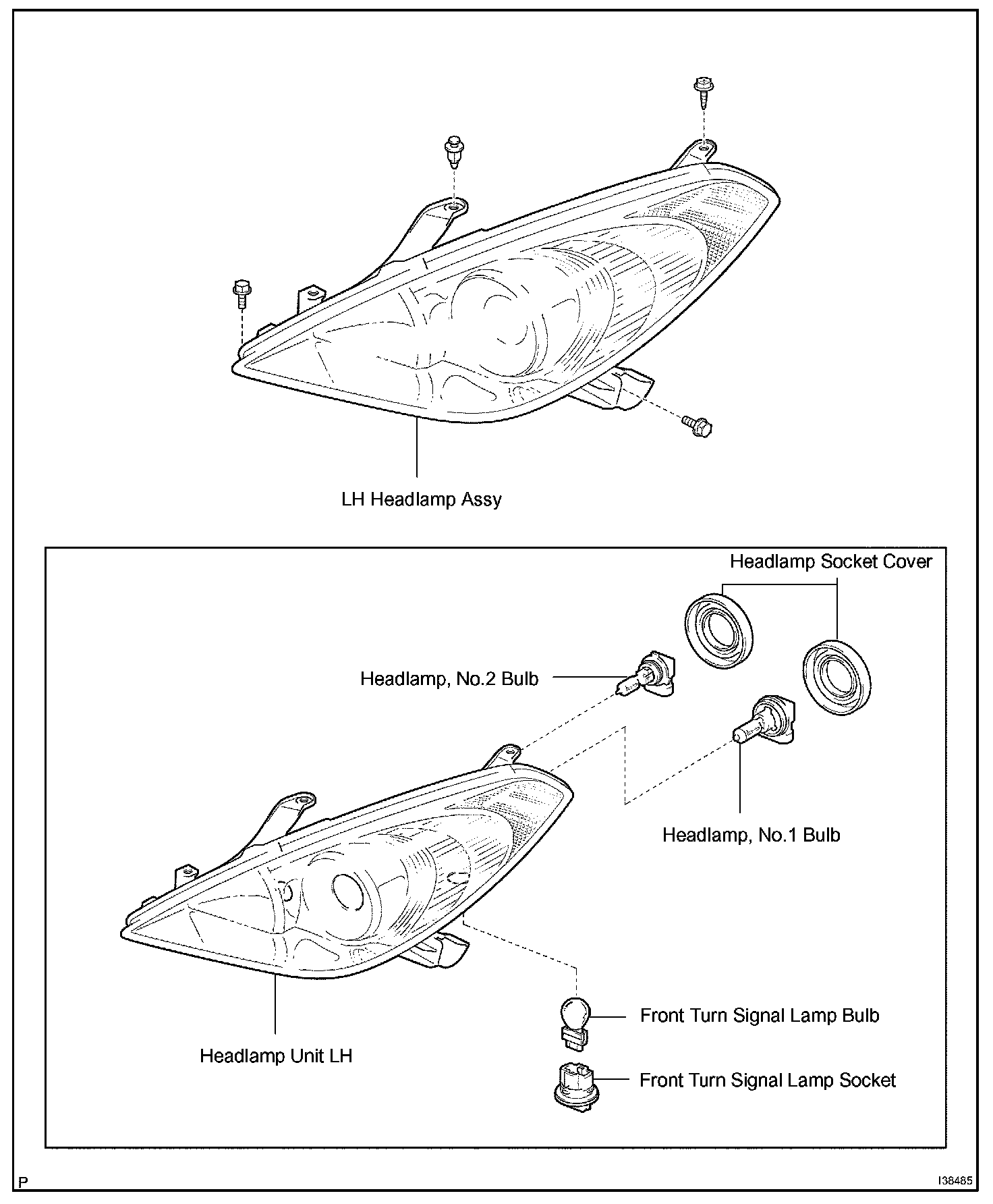

LH Headlamp Assy:

OVERHAUL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- Installation is in the reverse order of removal.

1. REMOVE RADIATOR GRILLE SUB-ASSY
2. REMOVE FRONT FENDER LINER LH
3. REMOVE FRONT FENDER LINER RH
4. REMOVE FRONT BUMPER COVER




5. REMOVE LH HEADLAMP ASSY
a. Remove the 2 bolts, screw and the clip.
b. Disconnect the connectors, and remove the LH headlamp assy.




6. REMOVE HEADLAMP, NO.1 BULB
a. Remove the headlamp, No.1 bulb as shown in the illustration.




7. REMOVE HEADLAMP, NO.2 BULB
a. Remove the headlamp, No.2 bulb as shown in the illustration.




8. REMOVE FRONT TURN SIGNAL LAMP BULB
a. Remove the front turn signal lamp socket as shown in the illustration.
b. Remove the turn signal lamp bulb from the front turn signal lamp socket.

9. REMOVE FRONT TURN SIGNAL LAMP SOCKET
10. REMOVE HEADLAMP SOCKET COVER
11. REMOVE HEADLAMP UNIT LH
12. HEADLIGHT AIM ONLY
