Tail Lamp: Service and Repair

REAR COMBINATION LAMP ASSY LH

OVERHAUL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- Installation is in the reverse order of removal.




1. REMOVE REAR COMBINATION LAMP ASSY LH

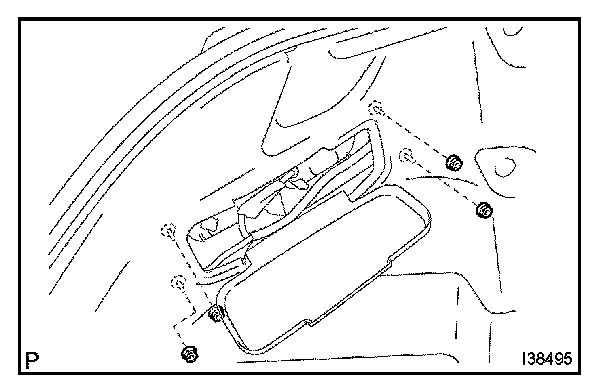

a. Disconnect the connector, and remove the 4 nuts.

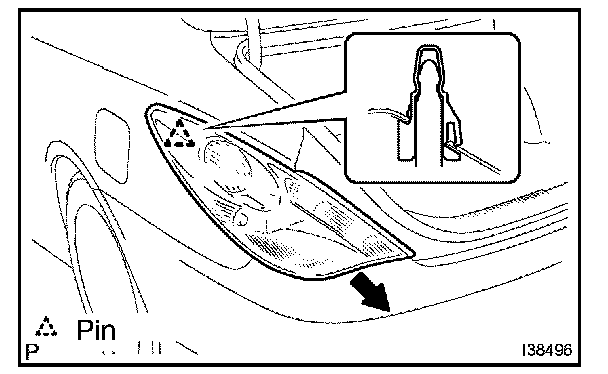

b. Disengage the pin, and remove the rear combination lamp assy LH as shown in the illustration.

2. REMOVE REAR COMBINATION LAMP BODY GASKET LH




3. REMOVE REAR COMBINATION LAMP BULB

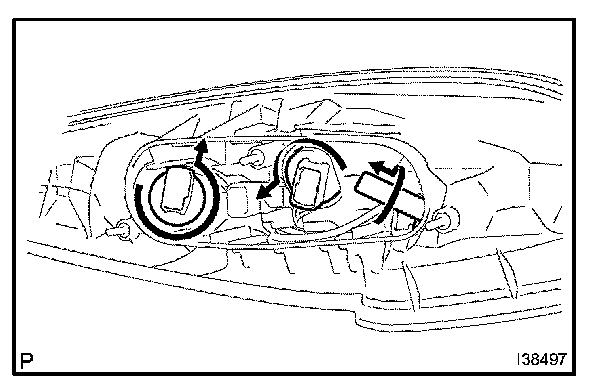

a. Remove the 3 rear combination lamp sockets as shown in the illustration.
b. Remove the 3 rear combination lamp bulbs from the 3 rear combination lamp sockets.

4. REMOVE REAR COMBINATION LAMP SOCKET AND WIRE SUB-ASSY LH
