Canada - Body - Tonneau Cover Improvement

Bulletin
TSB2058

Issue Date
July 21, 2004

Title
TONNEAU COVER IMPROVEMENT

Component
BODY COMPONENT

Models
'04 Solara Convertible

MARKET
Canada

To ease the installation effort of the tonneau cover to the vehicle, the following procedure has been developed.

APPLICABLE VEHICLES:
- 2004 model year Solara vehicles equipped with convertible top produced BEFORE the Production Change Effective VIN shown below.

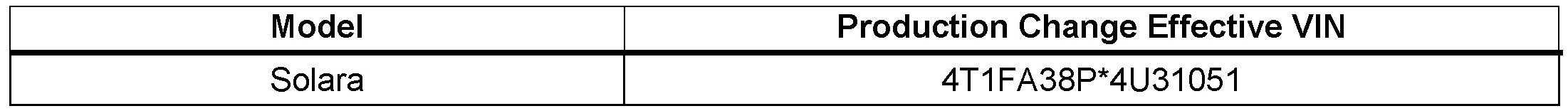

PRODUCTION CHANGE INFORMATION:

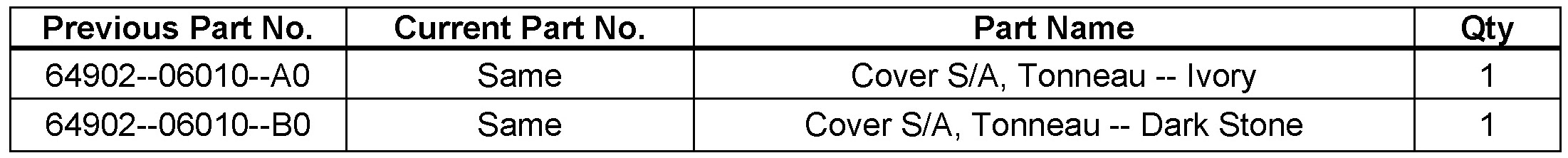

PARTS INFORMATION:





WARRANTY INFORMATION:

REPAIR PROCEDURE:





To adjust the tonneau cover, increase the RH and LH side hook bracket over-lap to 27 - 30 mm (1.05 - 1.2 in.).

1. Remove the Tonneau Cover from trunk.





2. Place a socket with an outside diameter of 14.2 mm (0.55 in.) (approximately an 11 mm socket) between bracket and boot (vinyl material).





3. Using a "C"--clamp, compress the socket until it is seated on the bottom surface of the bracket.


NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
