C1201

DTC C1201 ENGINE CONTROL SYSTEM MALFUNCTION

CIRCUIT DESCRIPTION

DTC Detecting Condition:

If a malfunction in the engine control system is detected, the operations of VSC and TRAC are prohibited by the fail-safe function. When the signals from the engine are input normally, the fail-safe is cancelled and the DTC is not stored.

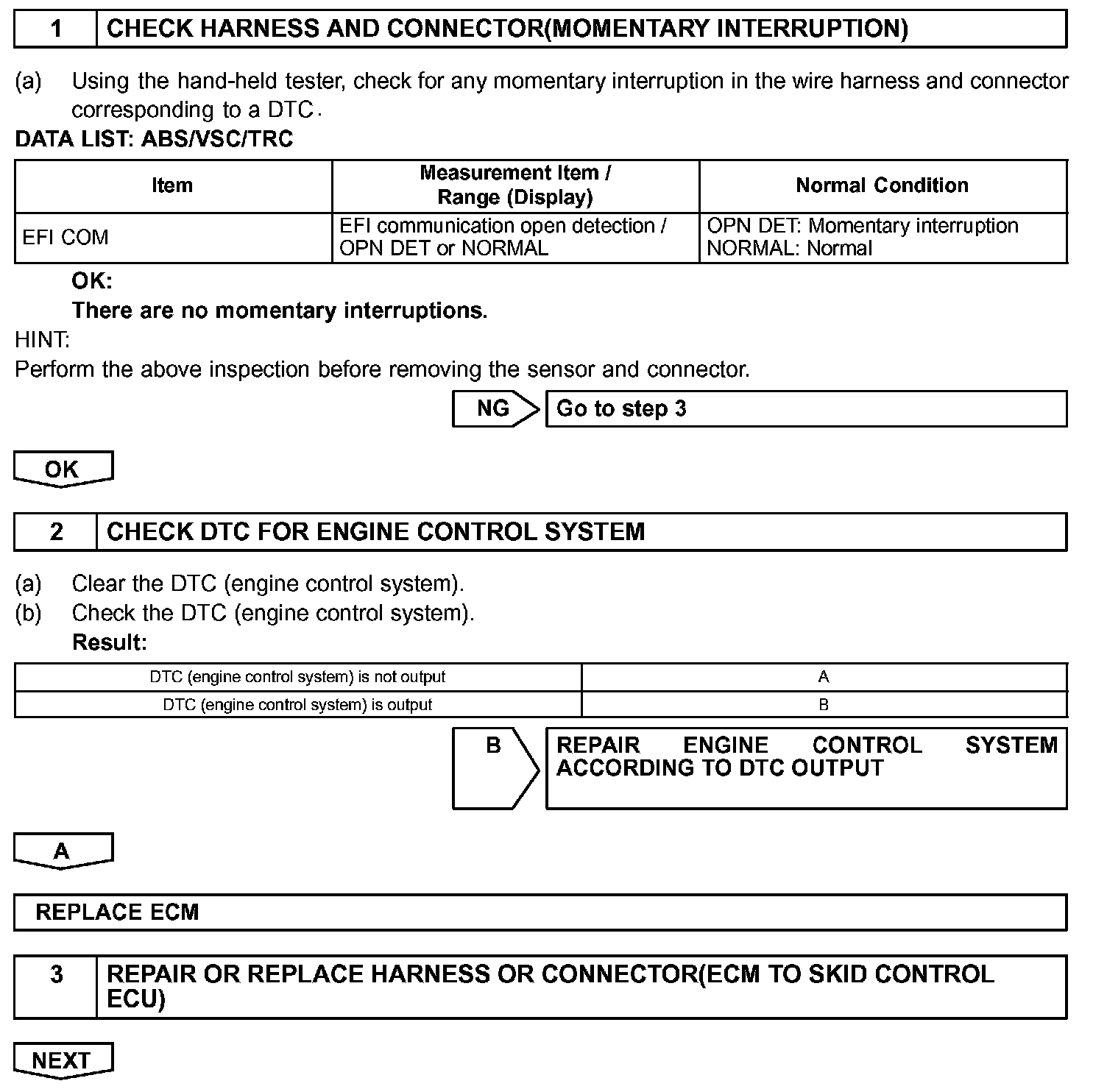

Step 1 - 3:

Step 4:

INSPECTION PROCEDURE
