C1239

DTC C1239 METAL STICK TO SPEED SENSOR (RL)

CIRCUIT DESCRIPTION

DTC Detecting Condition:

Refer to DTCs C0200/31, C0205/32.
DTCs C1273/73, C1274/74, C1277/77 and C1278/78 are output only in the test mode (SIGNAL CHECK).

HINT:
- DTC C0210/33 and C1238/38 are for the right rear speed sensor.
- DTC C0215/34 and C1239/39 are for the left rear speed sensor.

Wiring Diagram:

Step 1:

Step 2 - 3:

Step 4 - 5:

Step 6 - 7:

Step 8:

Step 9 - 10:

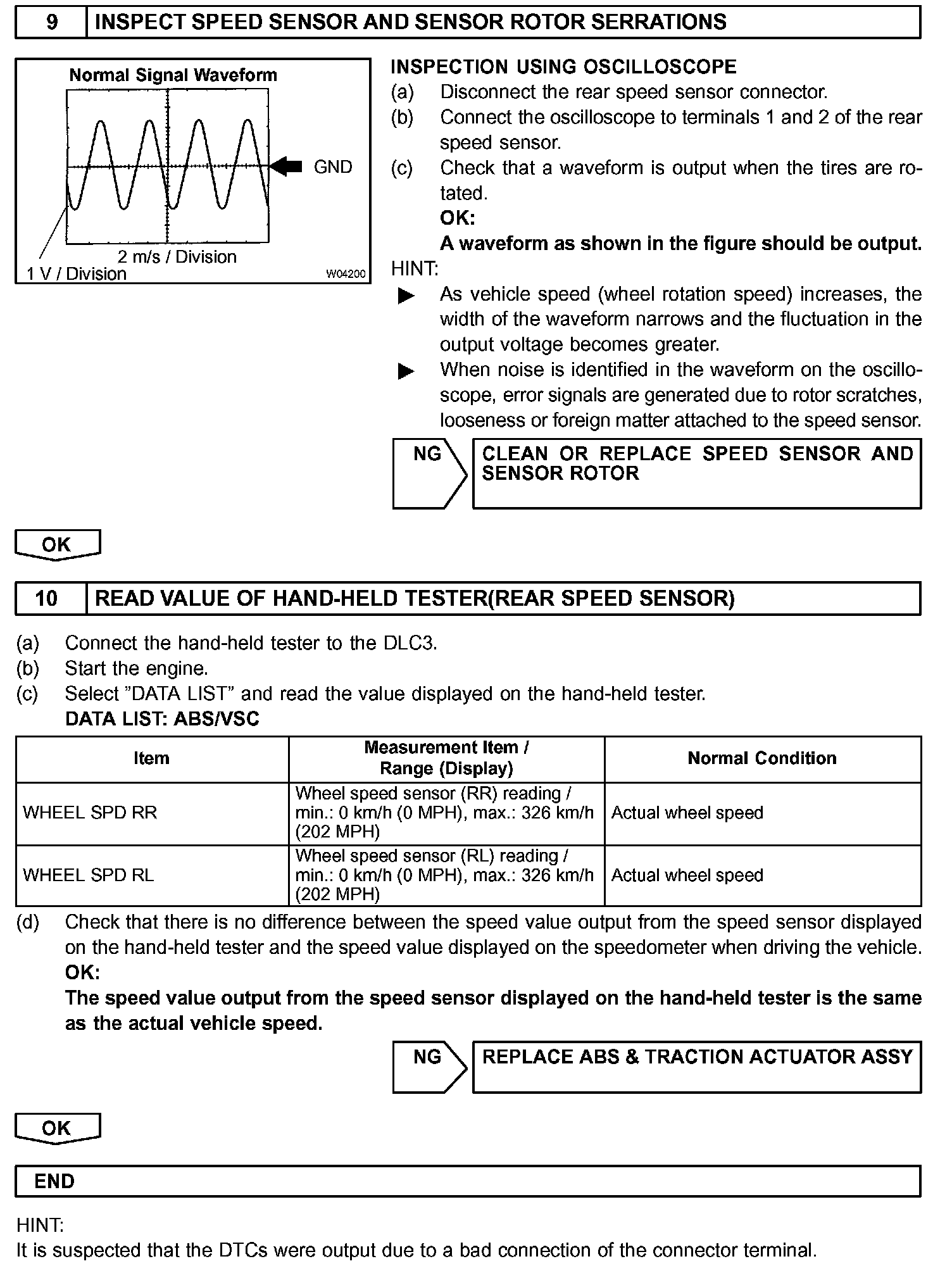

INSPECTION PROCEDURE

NOTE: When replacing the ABS & TRACTION actuator assembly, perform zero point calibration.

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 3 when not using the hand-held tester.
