C1246

DTC C1246 MALFUNCTION IN MASTER CYLINDER PRESSURE SENSOR

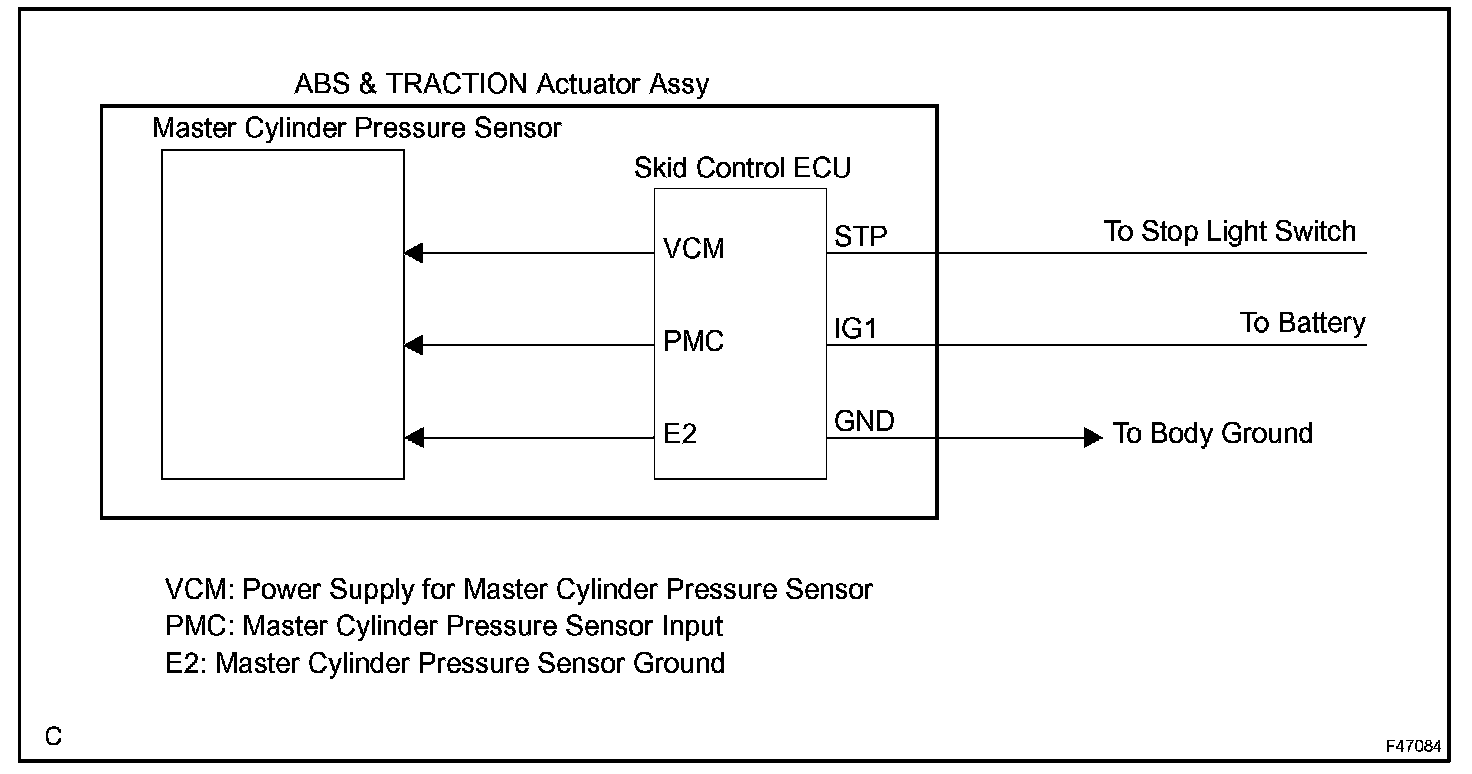

CIRCUIT DESCRIPTION

DTC Detecting Condition:

Master cylinder pressure sensor is connected to the skid control ECU in the ABS & TRACTION actuator assembly.

DTC C1281/81 is output only in the test mode (SIGNAL CHECK).

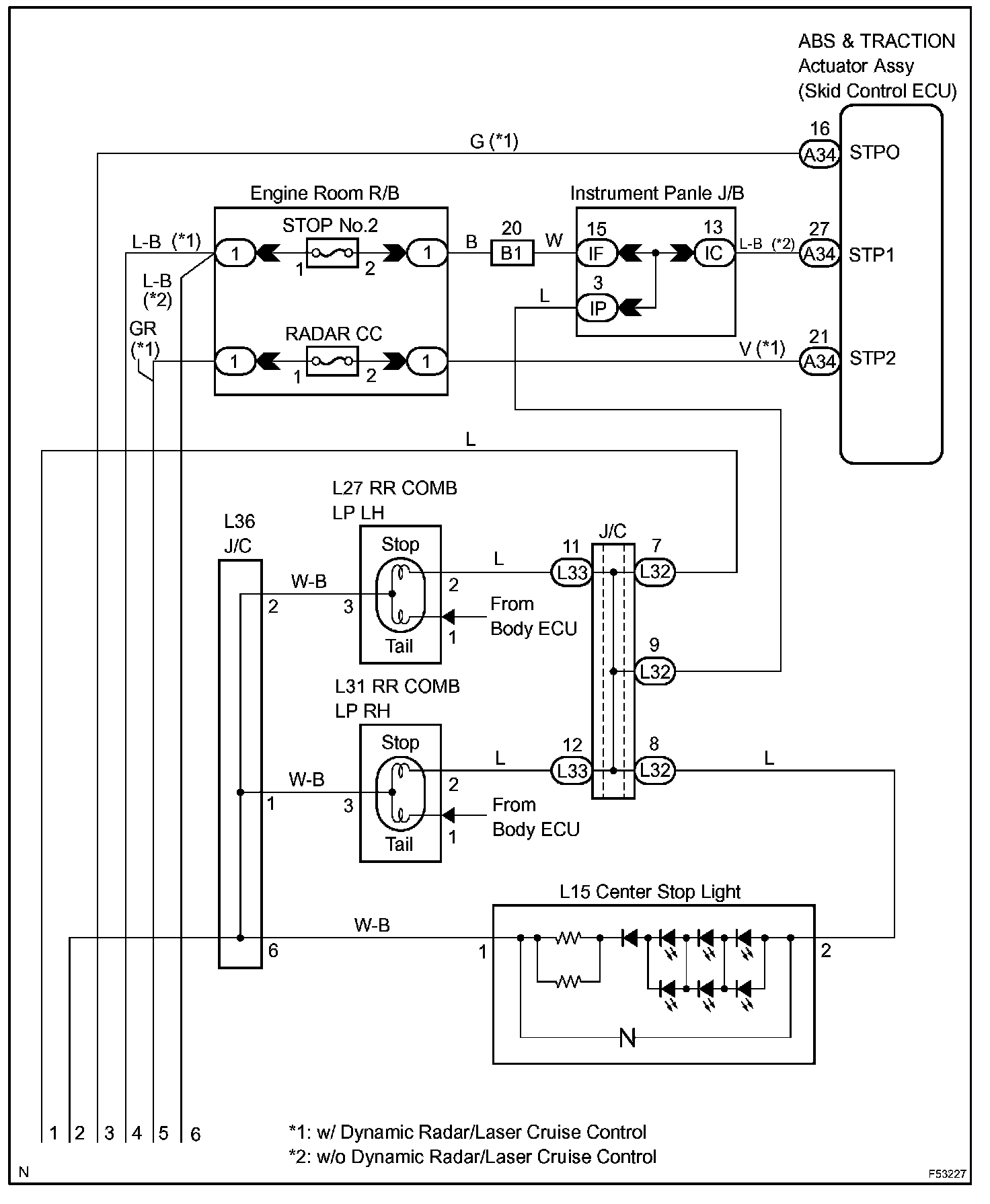

Wiring Diagram:

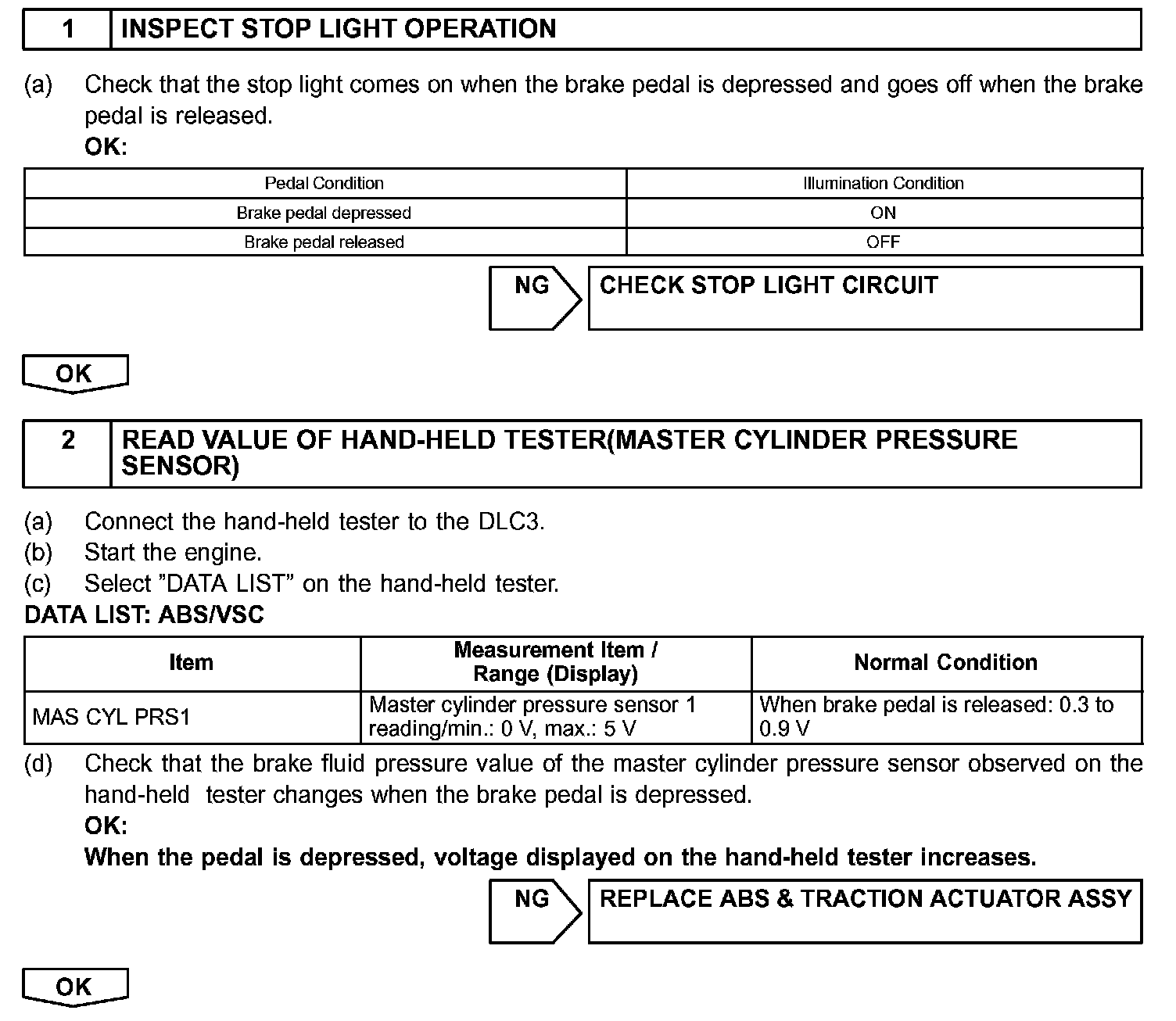

Step 1 - 2:

Step 3 - 4:

INSPECTION PROCEDURE

NOTE: When replacing the ABS & TRACTION actuator assembly, perform zero point calibration.
