C1251

DTC C1251 PUMP MOTOR CIRCUIT MALFUNCTION

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The pump motor is located inside the ABS & TRACTION actuator assembly.

Wiring Diagram:

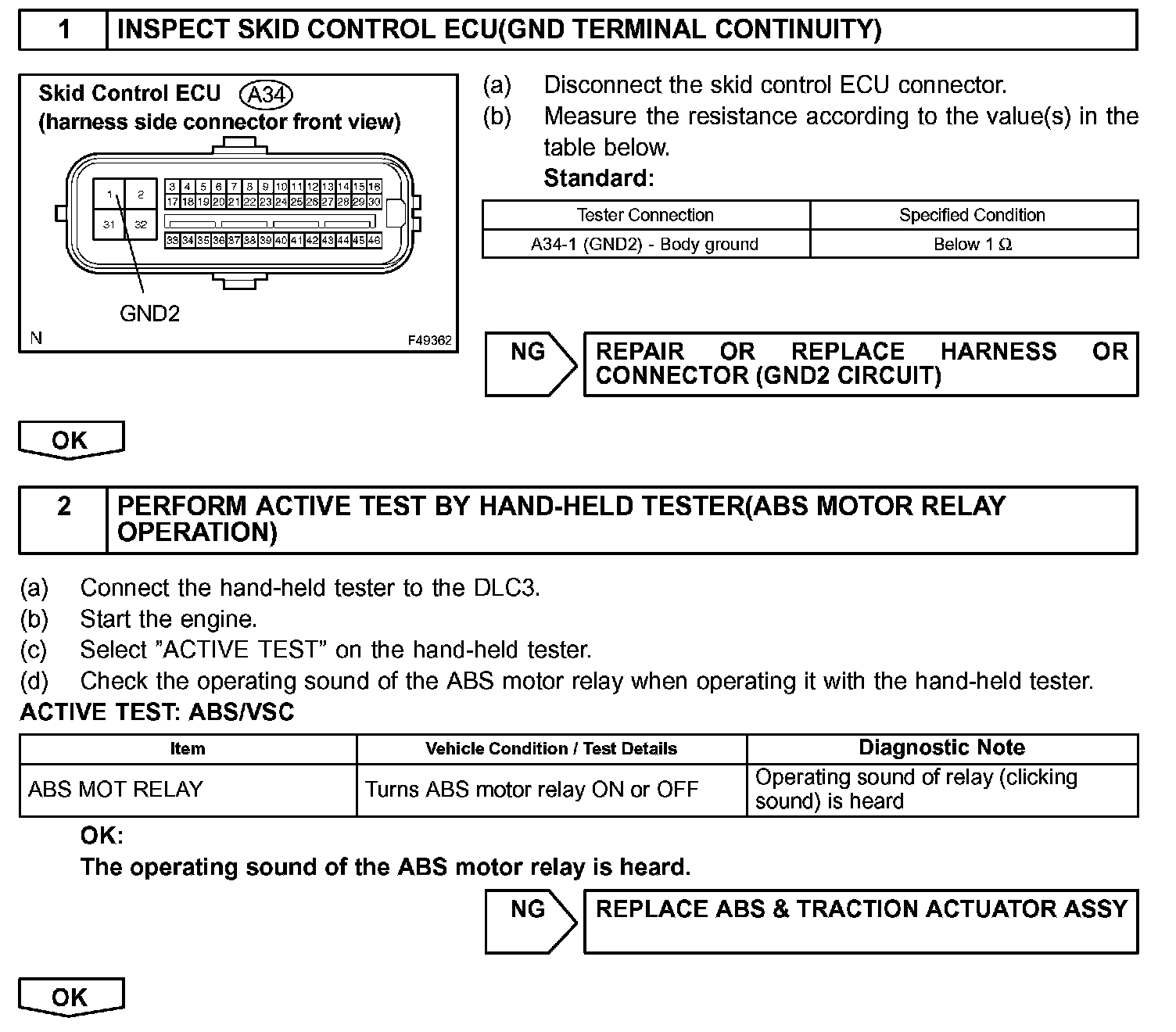

Step 1 - 2:

Step 3:

INSPECTION PROCEDURE

NOTE: When replacing the ABS & TRACTION actuator assembly, perform zero point calibration.
