ABS w/ EBD System

DIAGNOSTIC TROUBLE CODE CHART

C0200/31 - C1241/41:

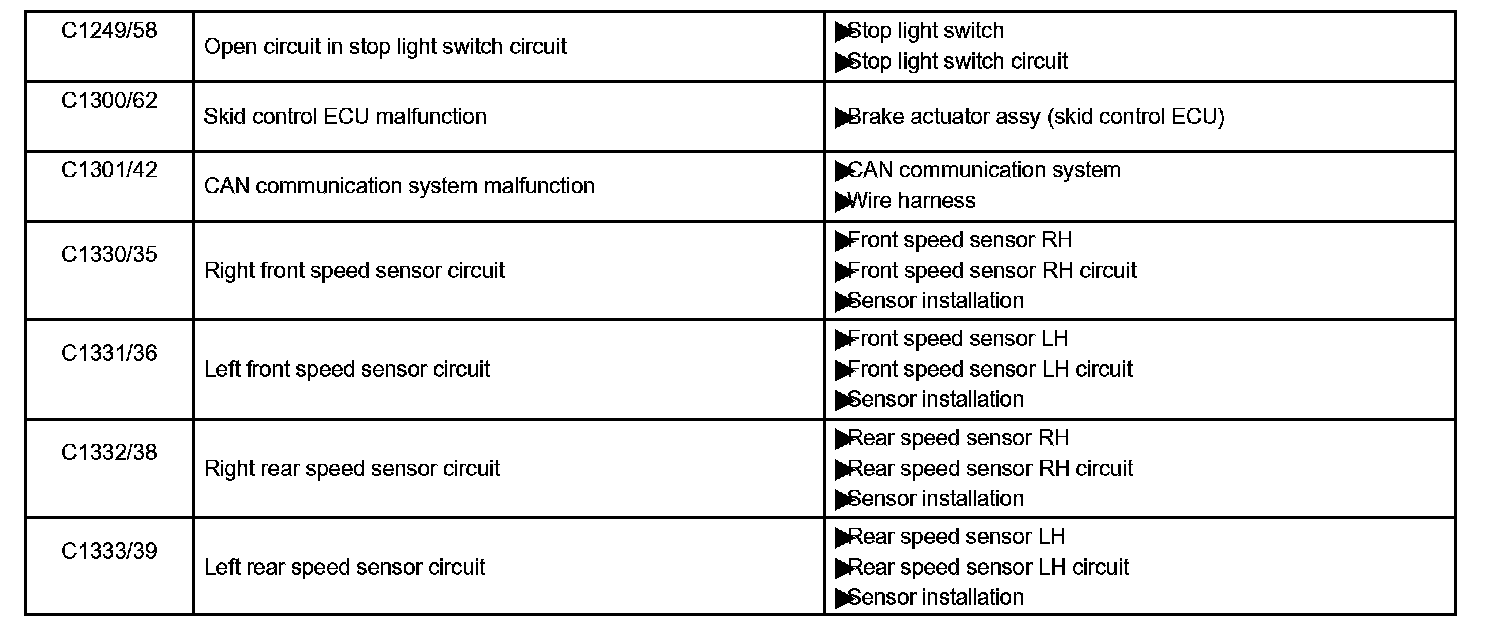

C1249/58 - C1333/39:

NOTE: Turn the ignition switch off before removing parts.

HINT:
- If no abnormality is found when inspecting parts, inspect the skid control ECU and ground points for poor contact.
- If a malfunction code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, refer to respective DTC No. in the DTC chart.
- When 2 or more DTCs are detected, perform circuit inspection one by one until the problem is identified.

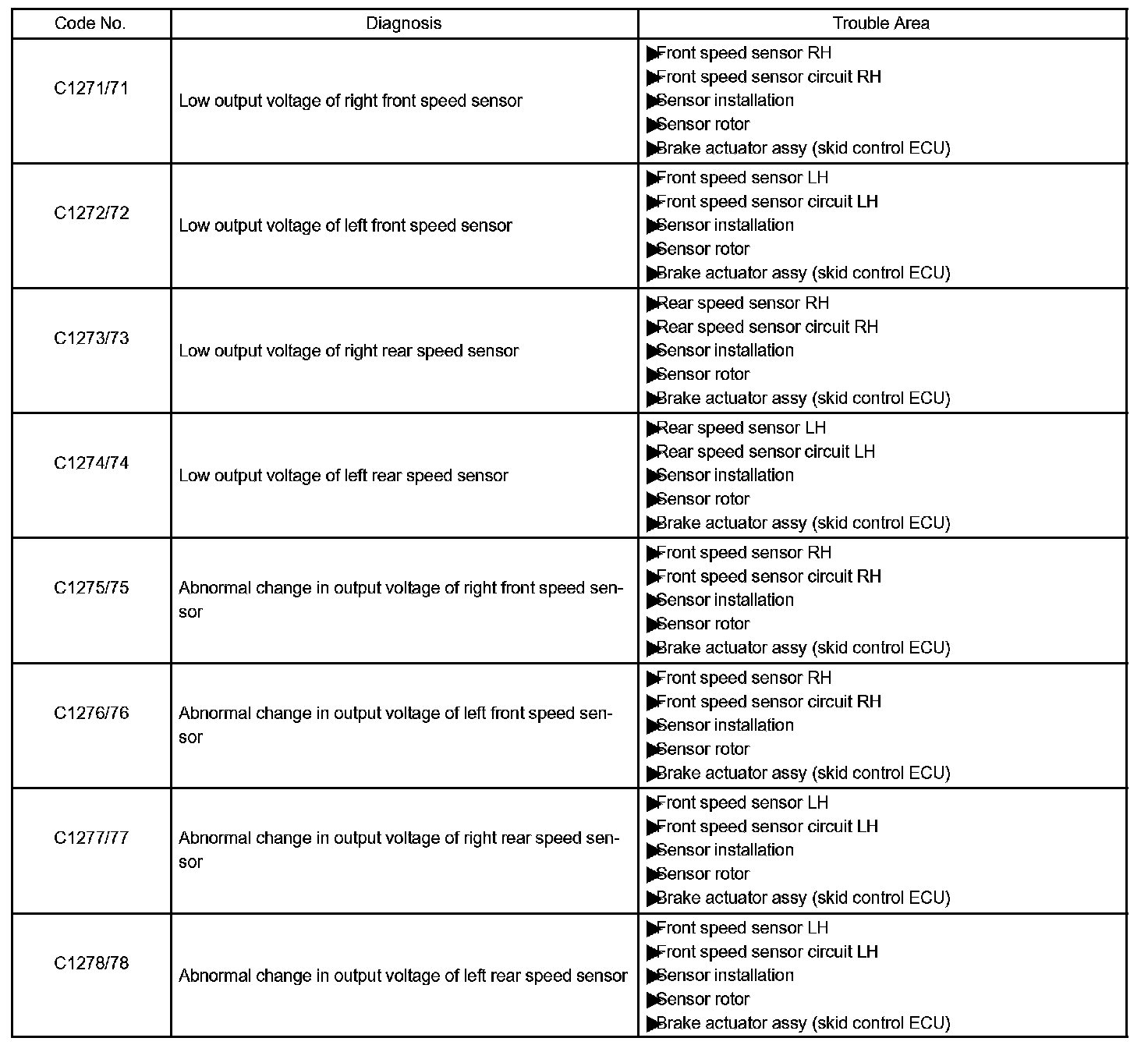

DTC OF SIGNAL CHECK FUNCTION (test mode)

C1271/71 - C1278/78:

HINT: The codes in this table are output only in signal check function (test mode).
