U0073

DTC U0073 CONTROL MODULE COMMUNICATION BUS OFF

CIRCUIT DESCRIPTION

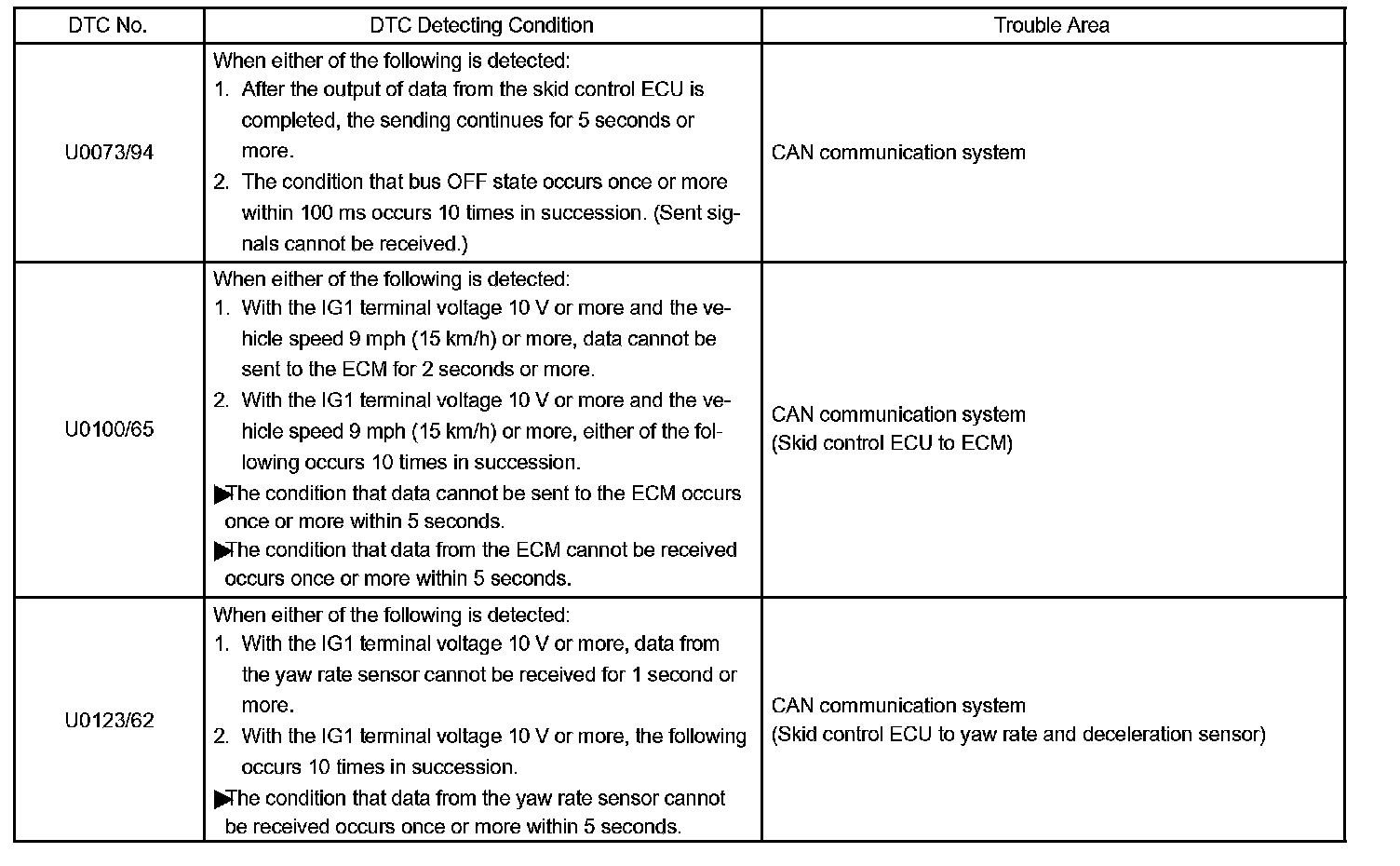

DTC Detecting Condition:

DTC Detecting Condition:

The skid control ECU inputs the signals from the ECM, steering sensor, and yaw rate sensor via CAN communication system.

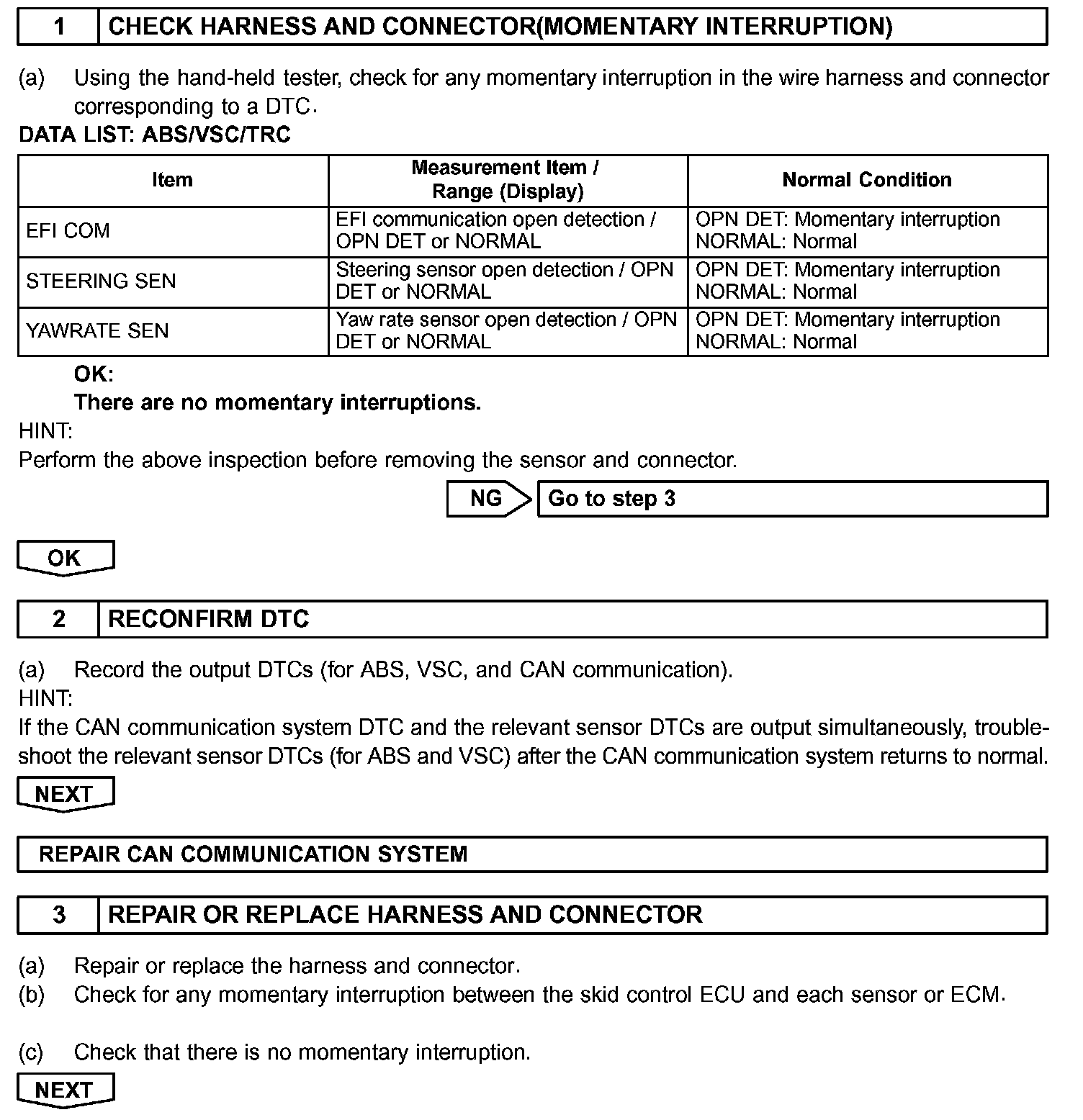

Step 1 - 3:

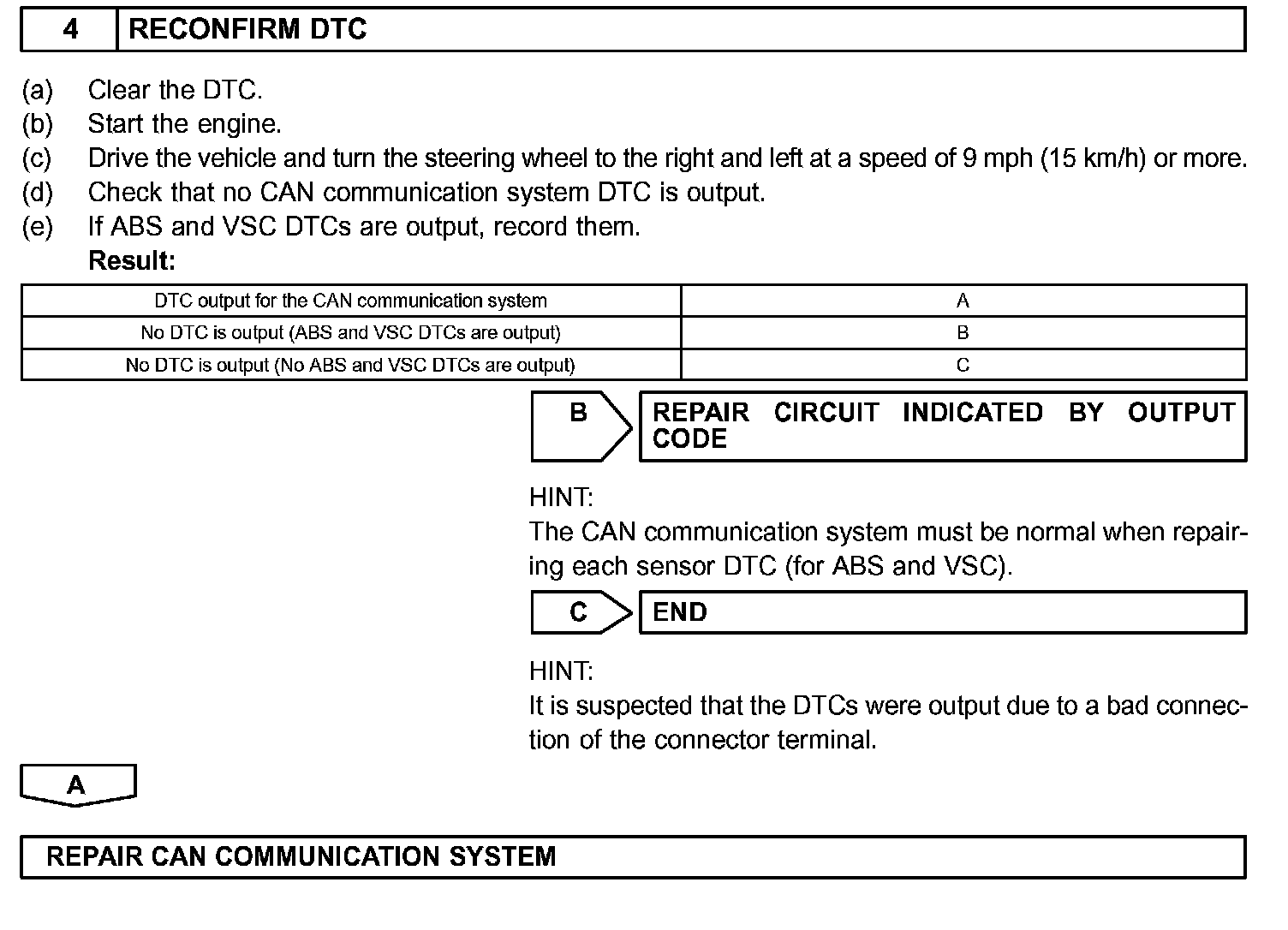

Step 4:

INSPECTION PROCEDURE
