Body Control Systems: Testing and Inspection

CUSTOMIZE PARAMETERS

HINT: The following can be customized.

NOTE:
- After confirming whether the items of the customer's request are applicable or not for the customized items, perform the customize operation.
- Be sure to record the current value before customizing.
- In case of performing the troubleshooting, pay attention as there is a possibility that the function is OFF by customizing. (Example: In case of the symptom in which "The wireless operation does not function" is displayed, check that the wireless operation is not OFF by customizing, then perform the troubleshooting.)




1. AIR CONDITIONING SYSTEM

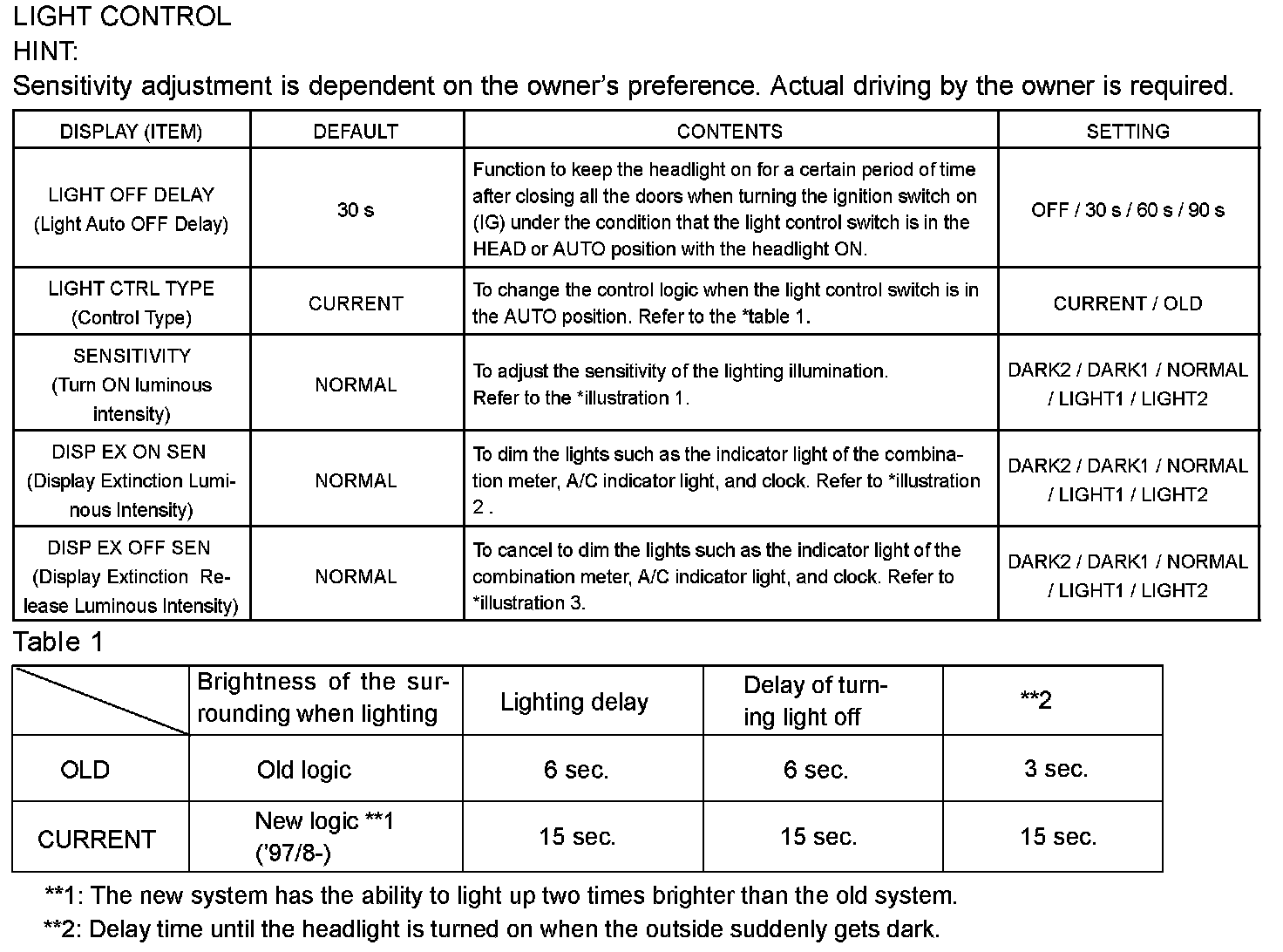

2. LIGHTING SYSTEM

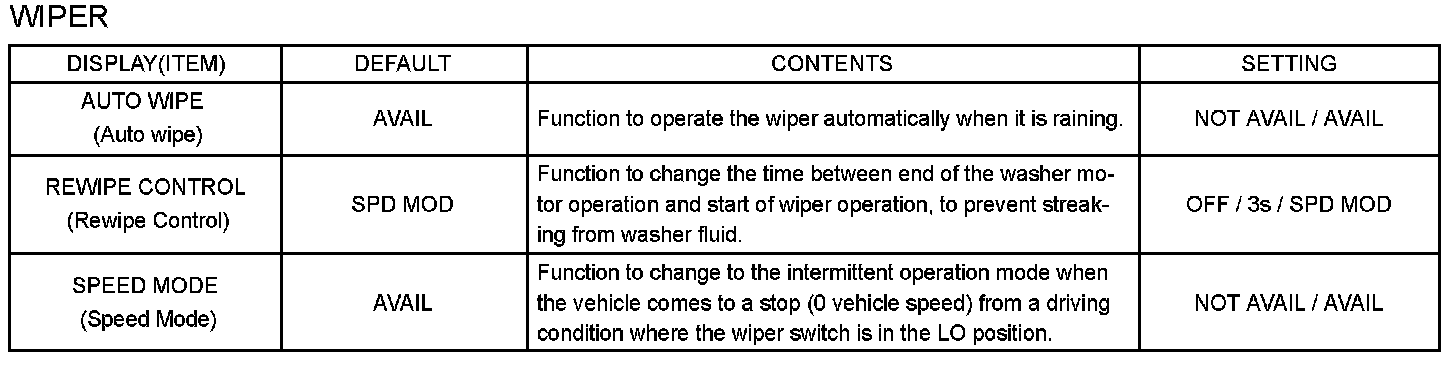

3. WIPER AND WASHER SYSTEM




4. COMBINATION METER




5. POWER DOOR LOCK CONTROL SYSTEM







6. WIRELESS DOOR LOCK CONTROL SYSTEM










7. SMART KEY SYSTEM

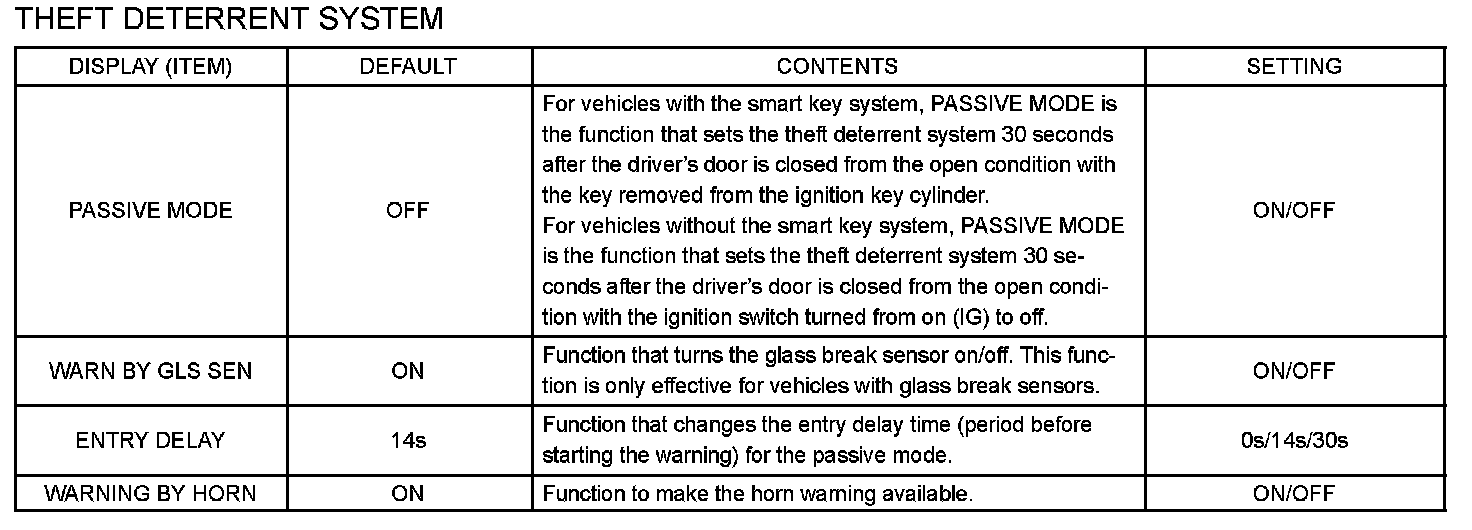

8. THEFT DETERRENT SYSTEM
