Mirrors: Description and Operation

System Diagram:

Signal Communication Table:

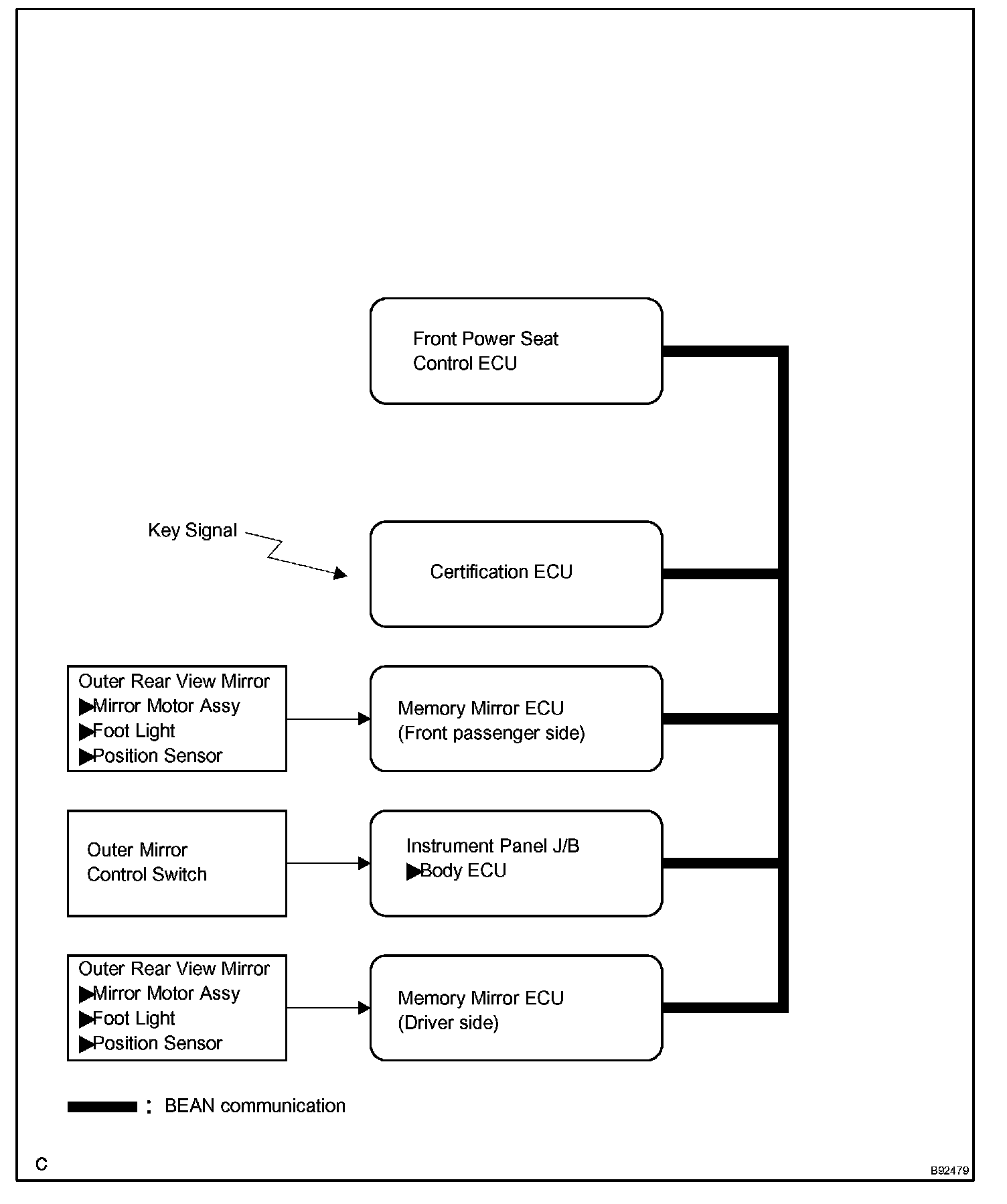

SYSTEM DIAGRAM (POWER MIRROR CONTROL SYSTEM (W/ MEMORY)

System Diagram:

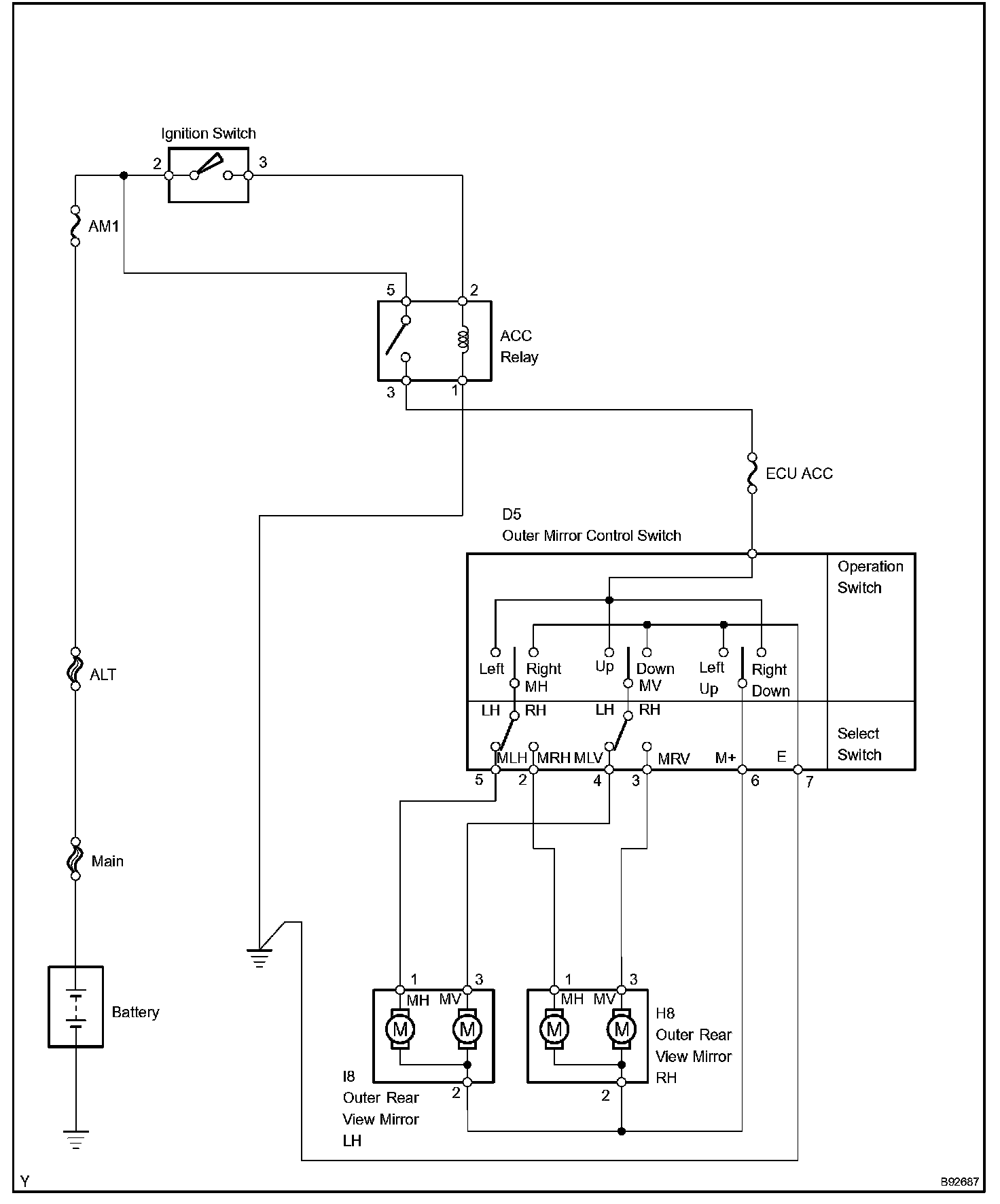

SYSTEM DIAGRAM POWER MIRROR CONTROL SYSTEM (W/O MEMORY)

SYSTEM DESCRIPTION
1. POWER MIRROR CONTROL SYSTEM DESCRIPTION
This system has these functions: automatic glare-resistant electrochromic (EC) mirror, electrical remote control type mirror, memory function, foot light function, and rear window defogger-linked mirror defogger.

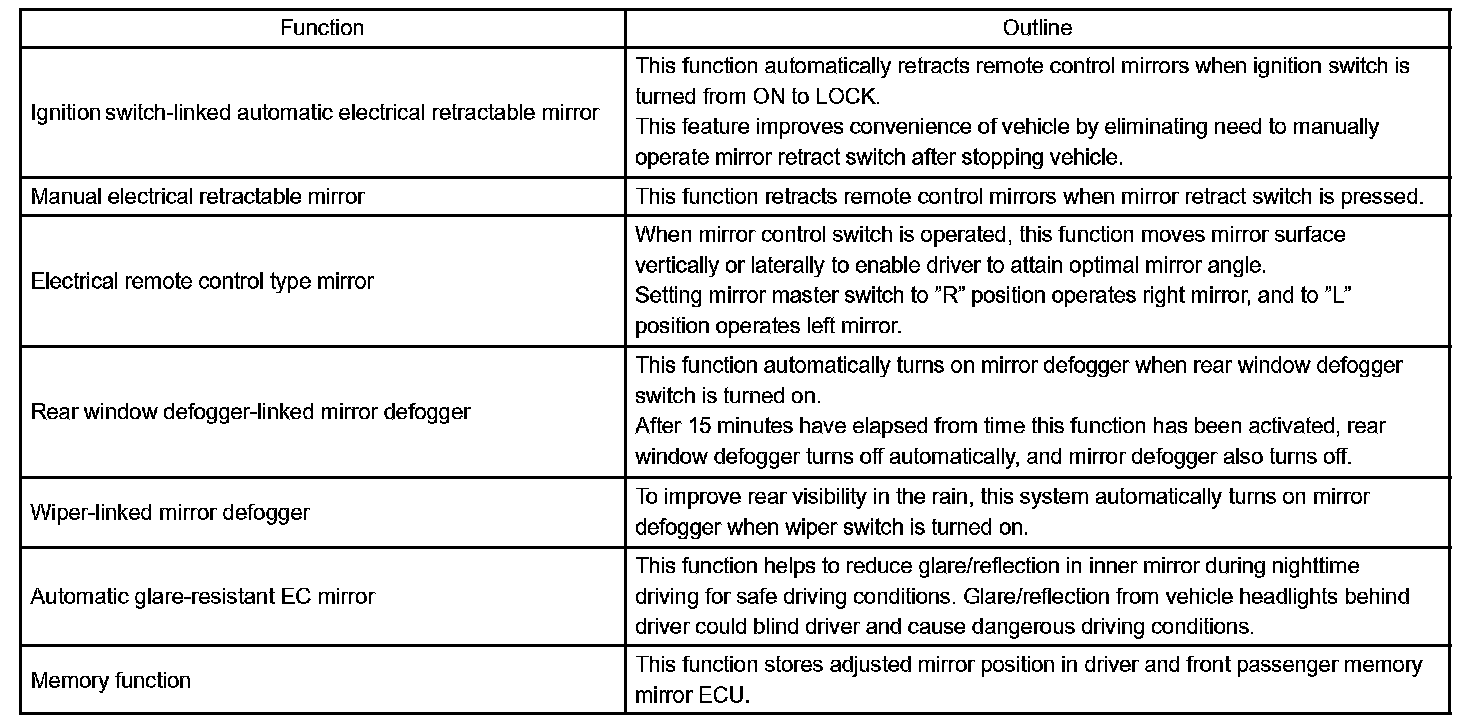

2. FUNCTION OF MAIN COMPONENT




3. SYSTEM OPERATION
The remote control mirror has shown features:
