Brakes and Traction Control: Testing and Inspection

BRAKE SYSTEM

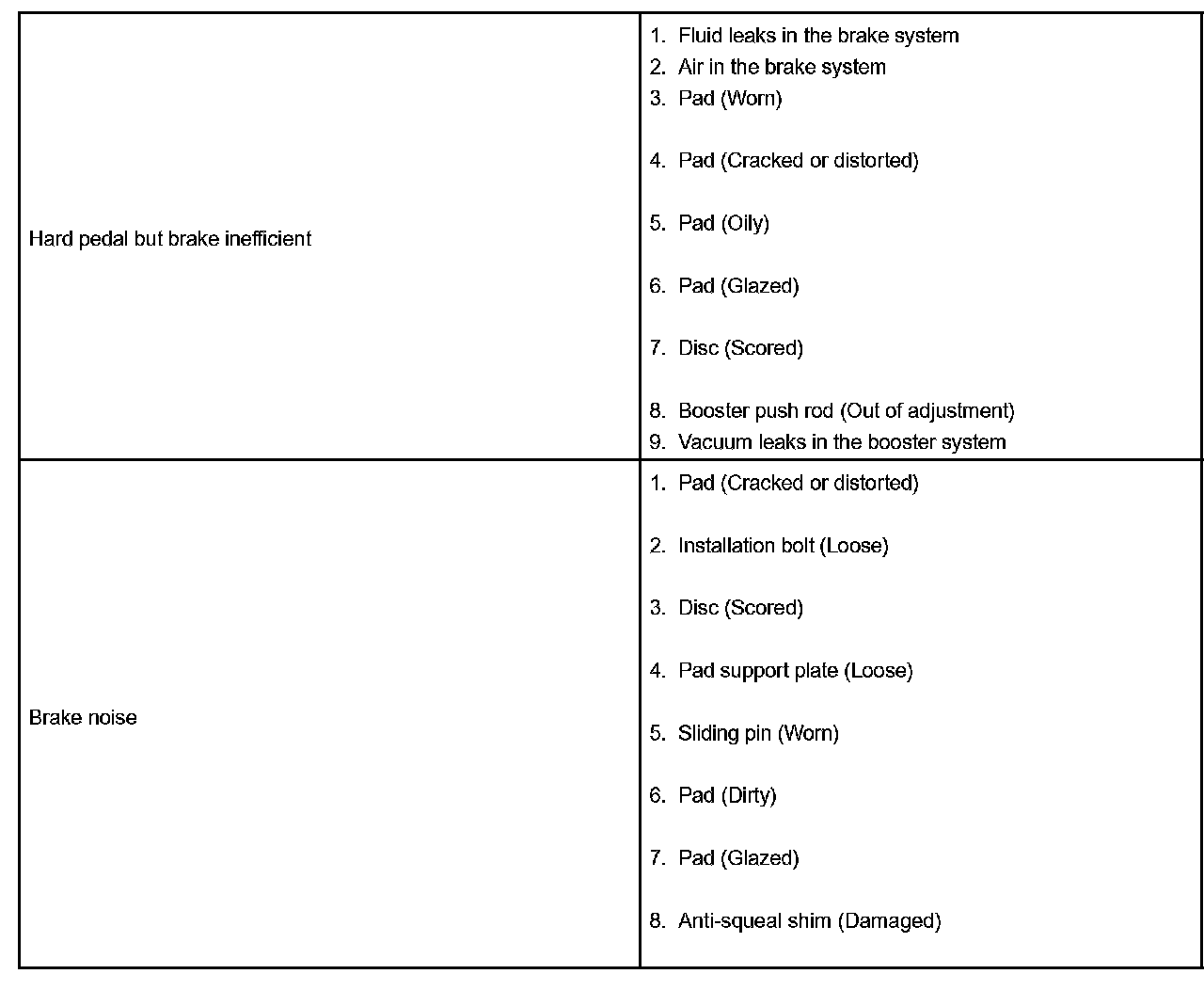

PROBLEM SYMPTOMS TABLE








Use the table to help find the cause of each problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, replace these parts.
