Navigation System

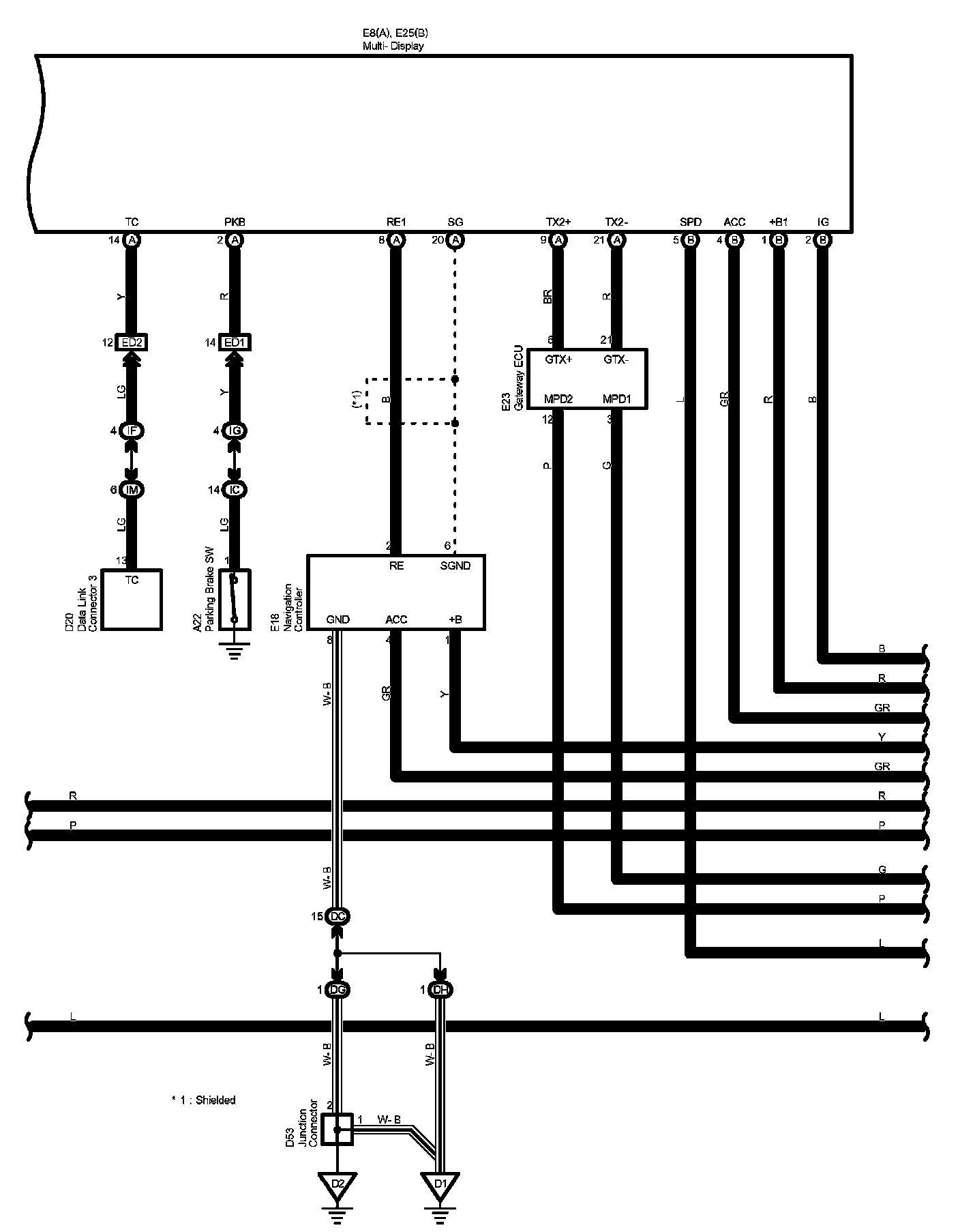

Multi Display And Navigation System Part 1:

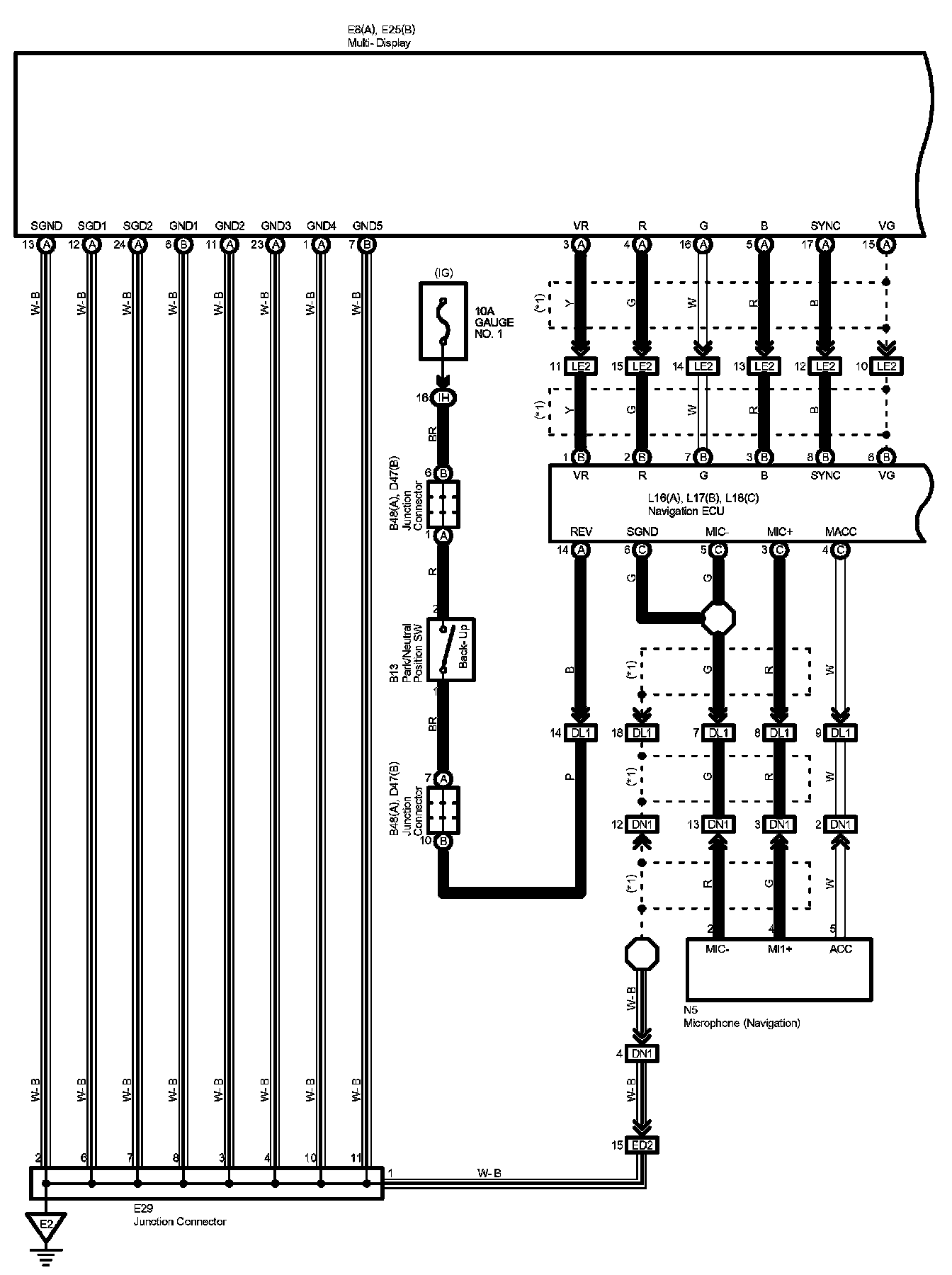

Multi Display And Navigation System Part 2:

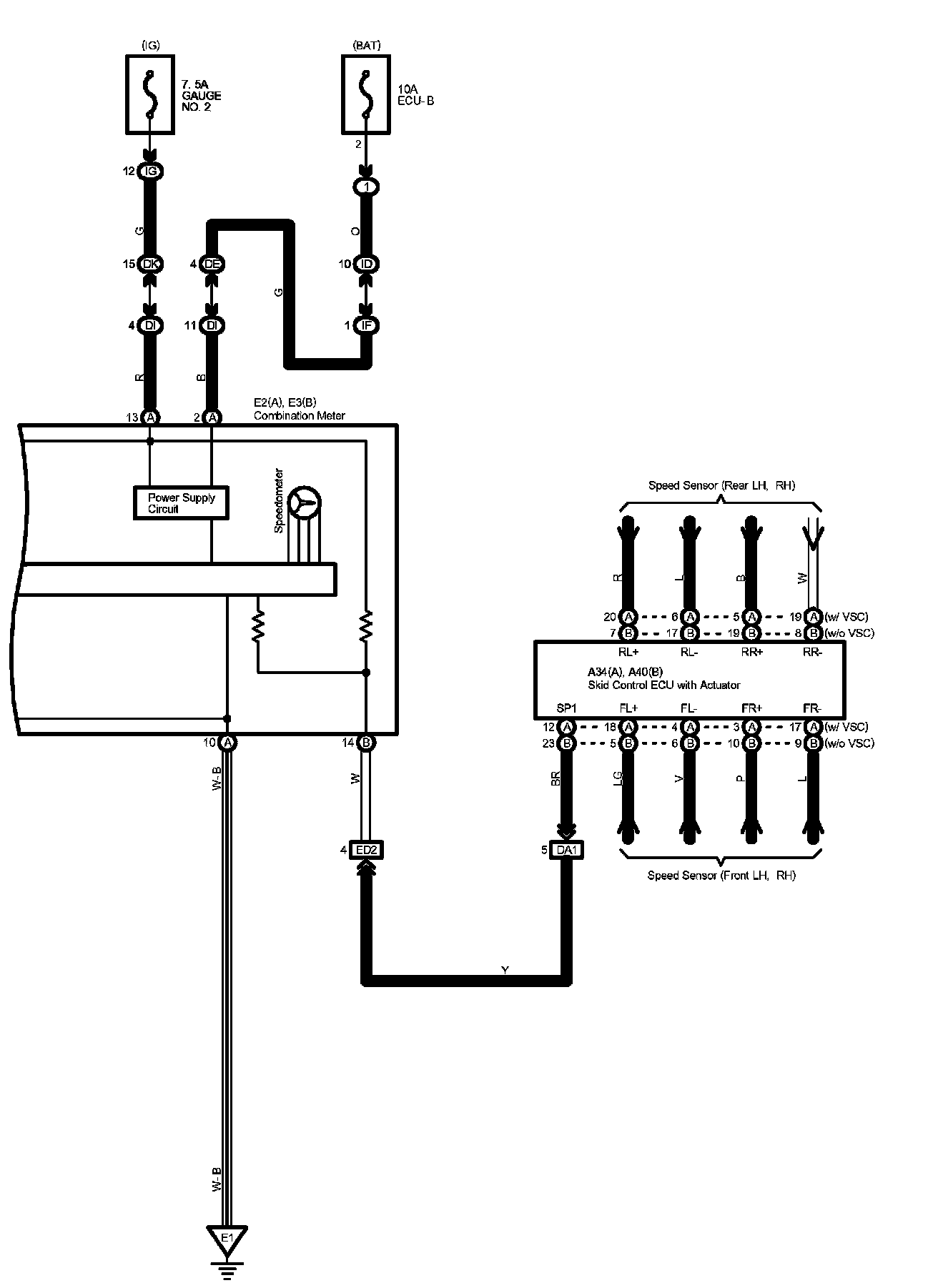

Multi Display And Navigation System Part 3:

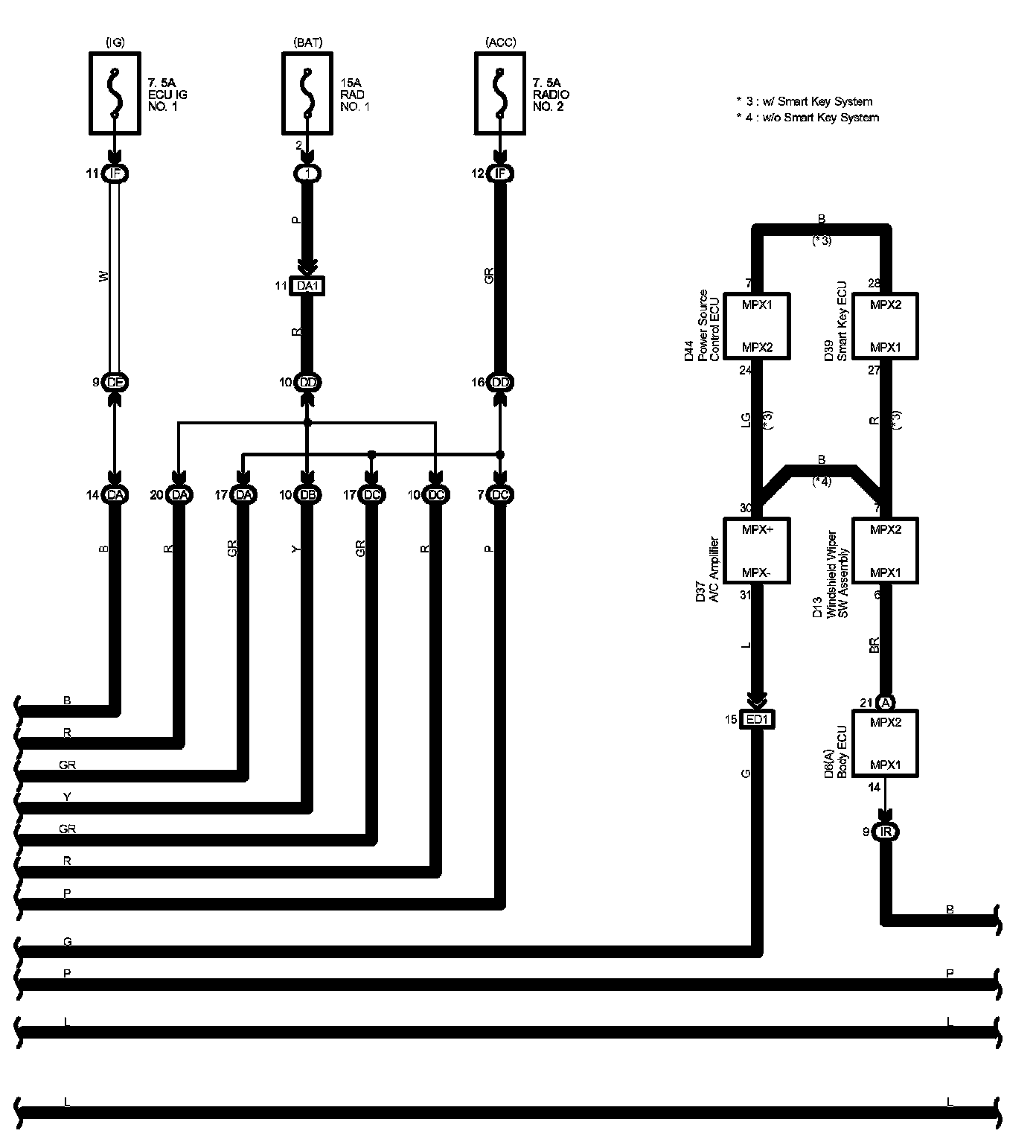

Multi Display And Navigation System Part 4:

Multi Display And Navigation System Part 5:

Multi Display And Navigation System Part 6:

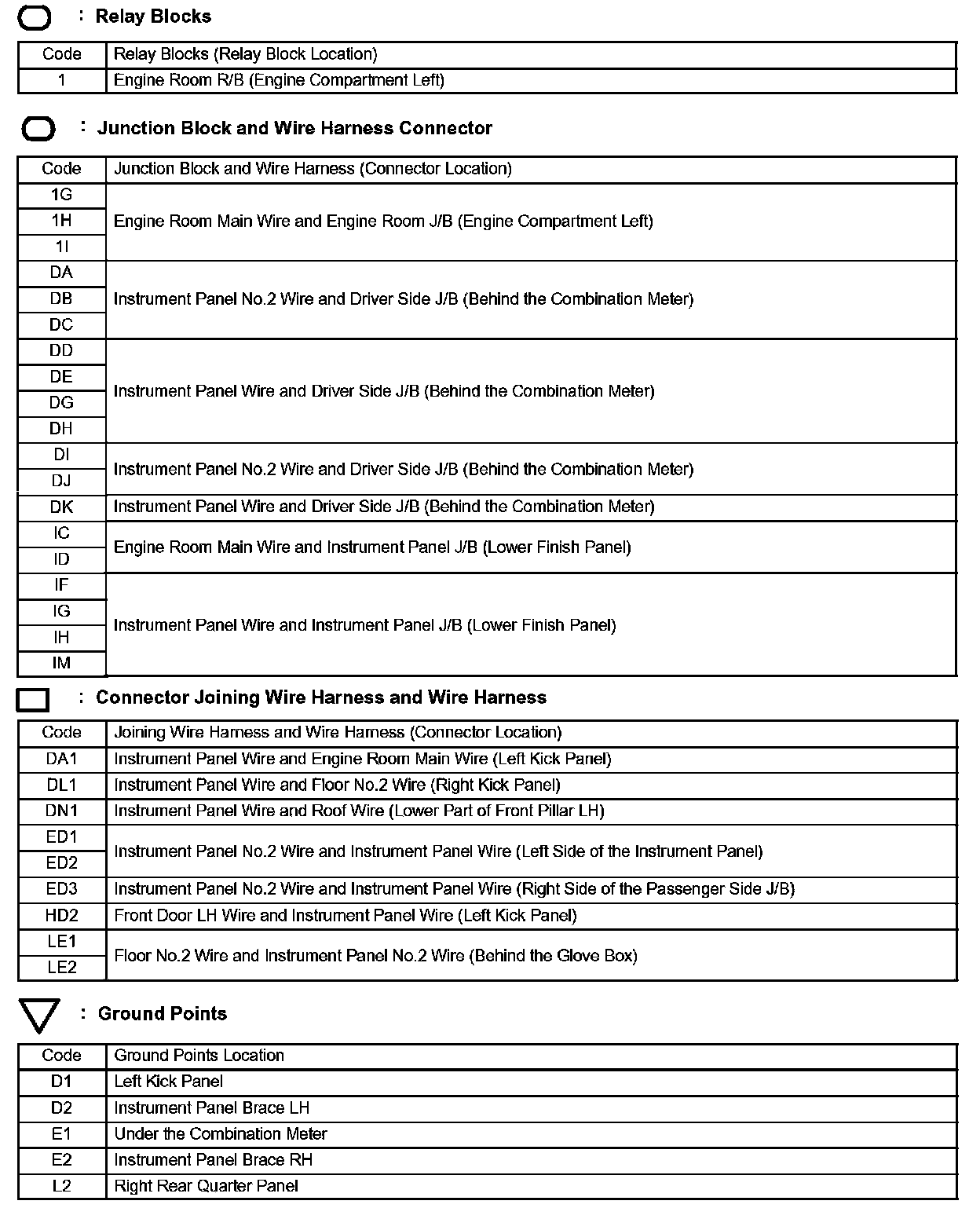

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
