Control Module HVAC: Testing and Inspection

Terminals Of Control Module/Pinouts - Air Conditioning Amplifier Part 1:

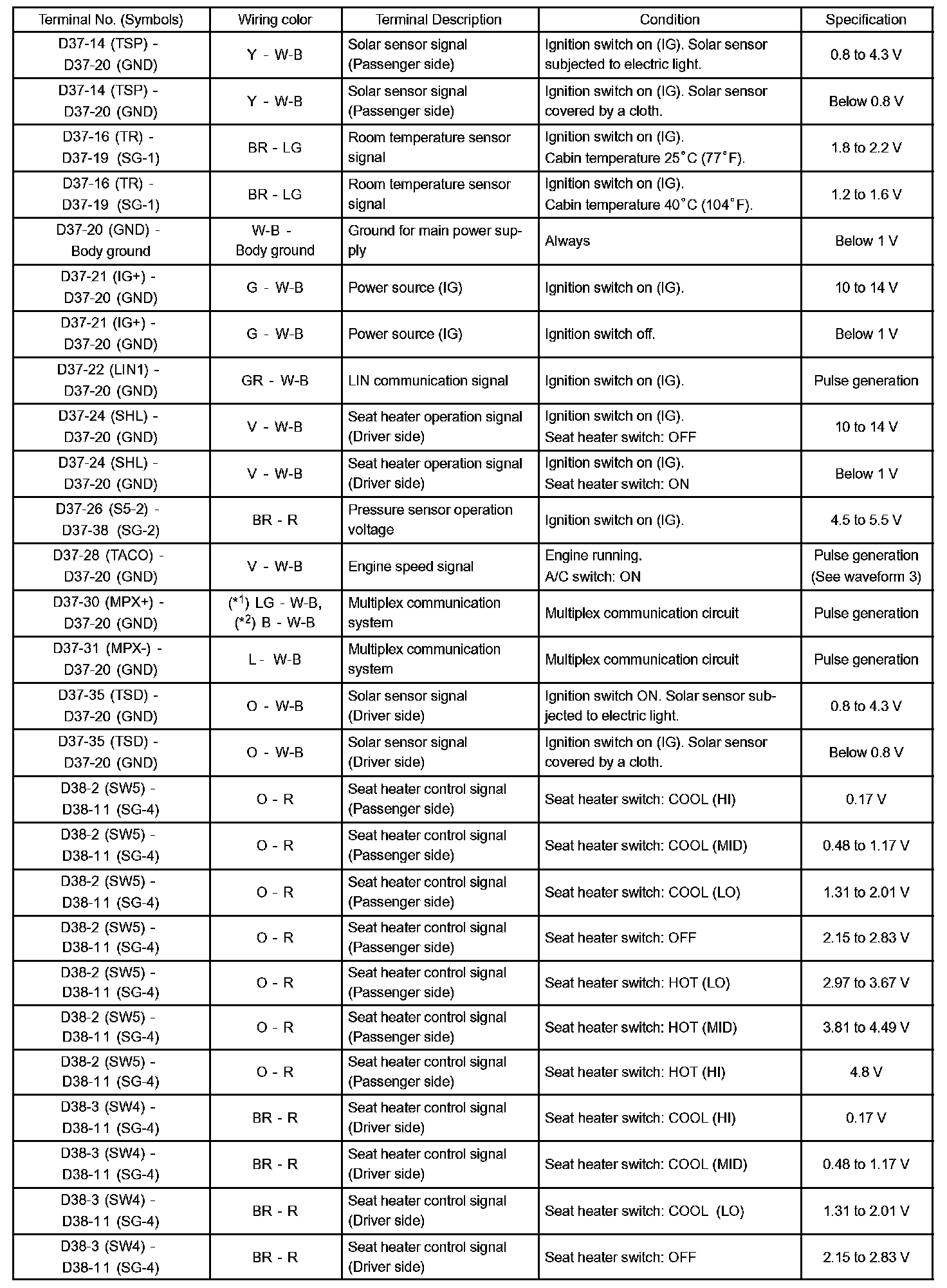

Terminals Of Control Module/Pinouts - Air Conditioning Amplifier Part 2:

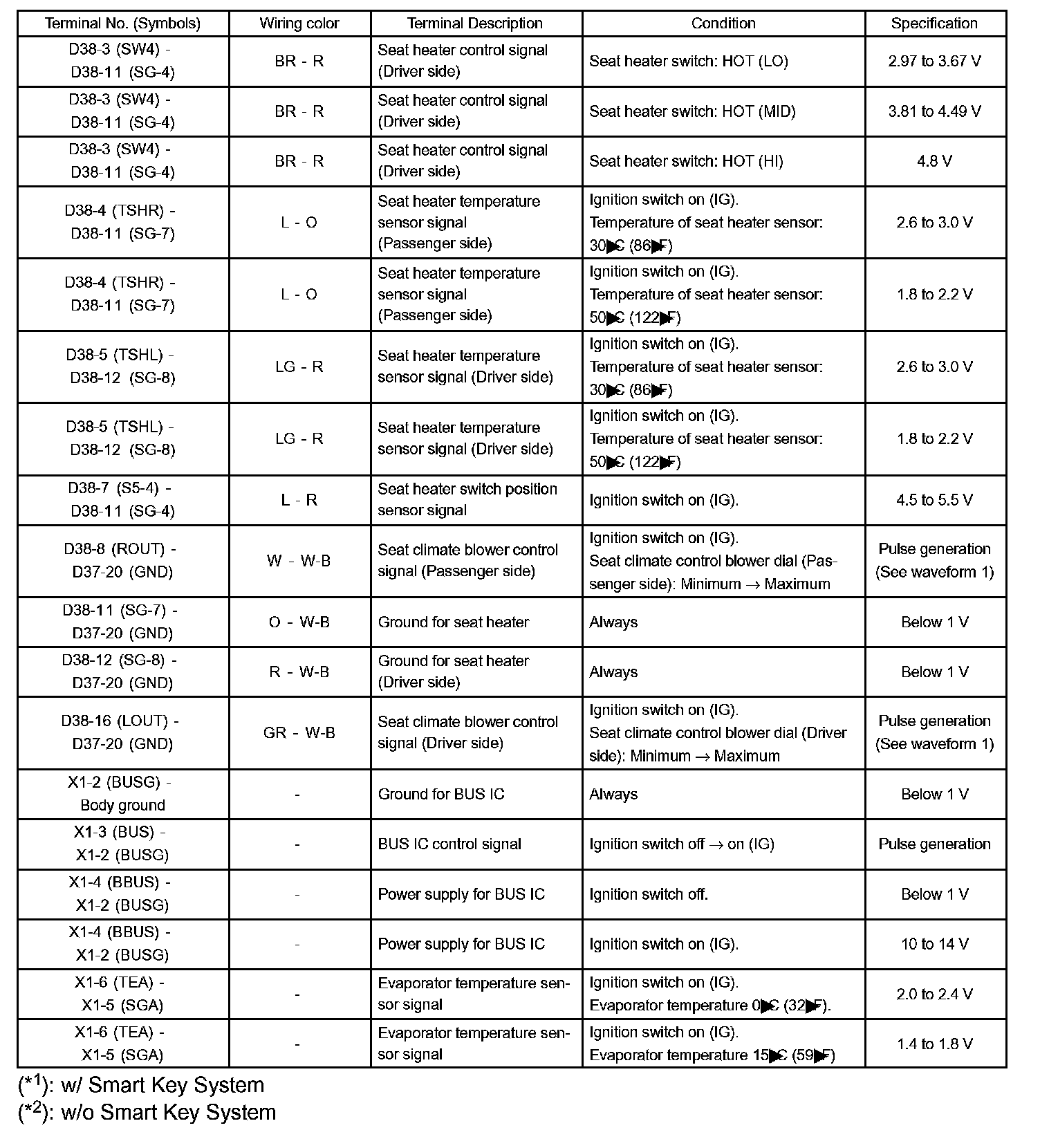

Terminals Of Control Module/Pinouts - Air Conditioning Amplifier Part 3:



Oscilloscope Waveforms:



Terminals Of Control Module/Pinouts - Heater Control Panel LH:
