Clock: Service and Repair


















REPLACEMENT

HINT: Installation is in the reverse order of removal.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
2. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.1
3. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.2
4. REMOVE INSTRUMENT PANEL FINISH PLATE (W/O SMART KEY SYSTEM)
5. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY
6. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER
7. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
8. REMOVE COMBINATION METER ASSEMBLY
9. REMOVE ACCESSORY METER ASSEMBLY




10. REMOVE CLOCK ASSEMBLY

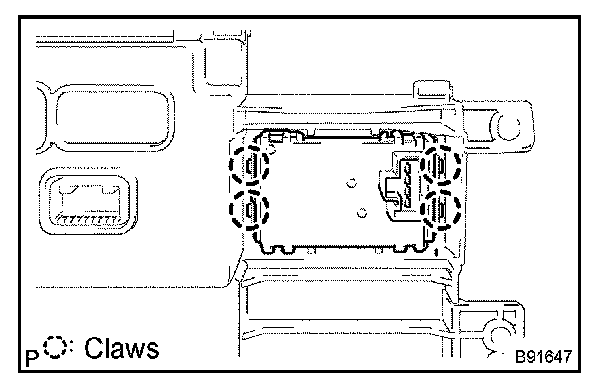

a. Disengage the 4 claws and remove the clock assembly.

11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
12. PERFORM INITIALIZATION
Some systems need initialization when disconnecting the cable from the negative battery terminal.
