Instrument Panel, Gauges and Warning Indicators: Description and Operation

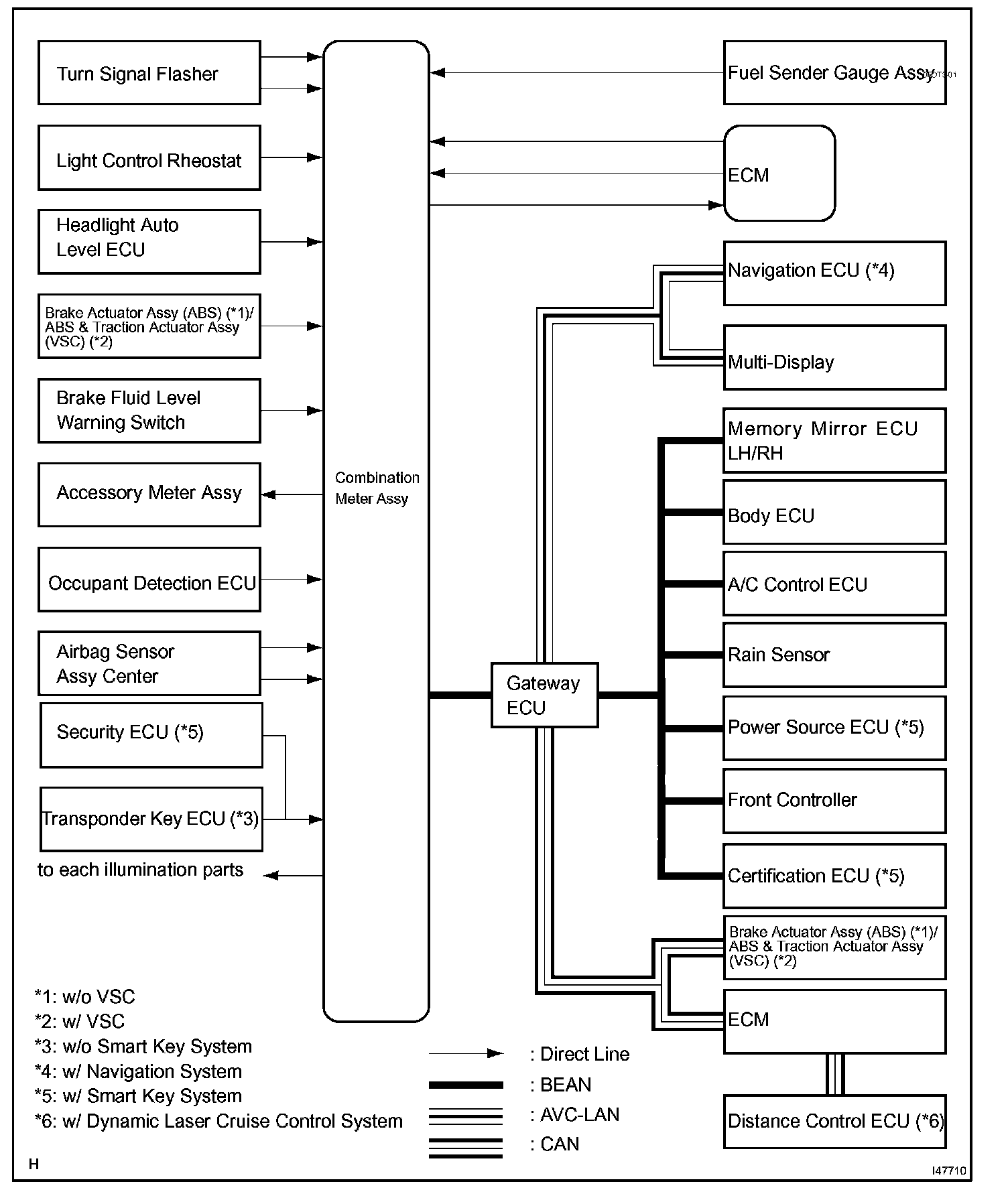

SYSTEM DIAGRAM




1. COMBINATION METER ASSEMBLY




GATEWAY

HINT: CAN signals and AVC-LAN signals are transmitted to or received from the combination meter assembly through the gateway ECU.

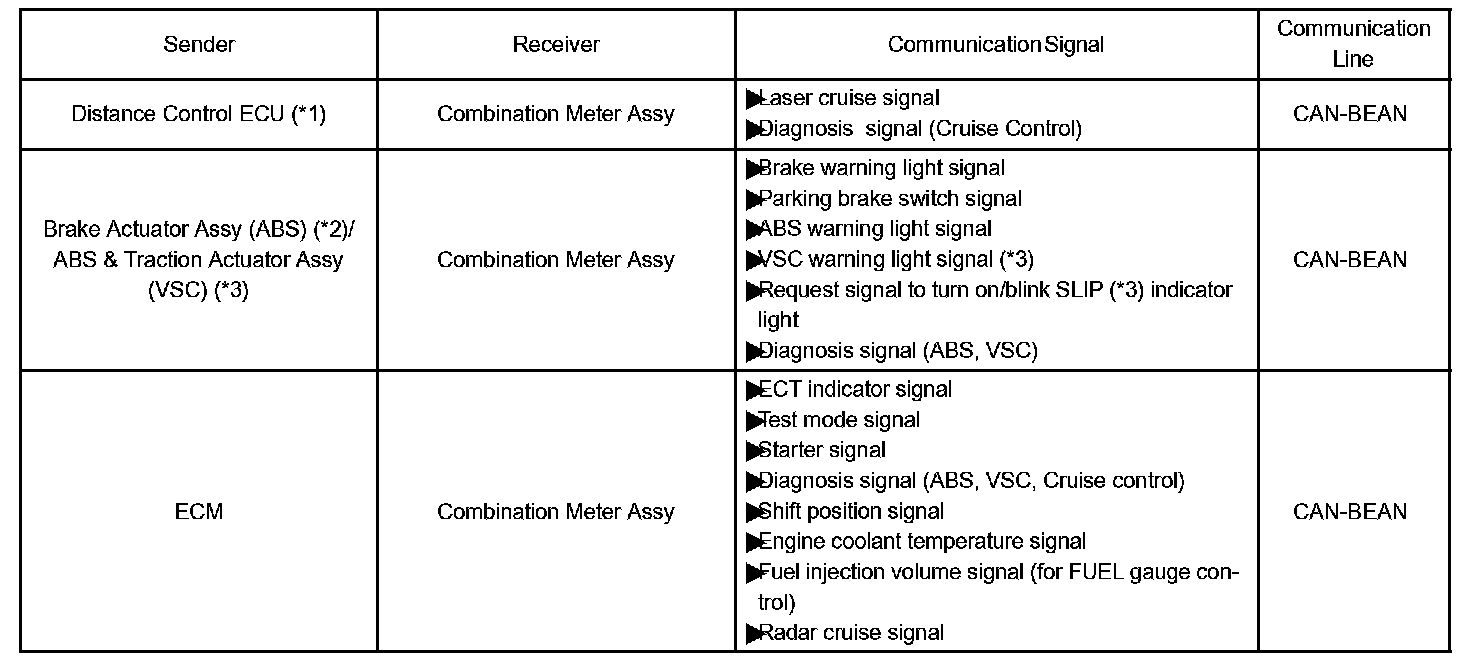

CAN

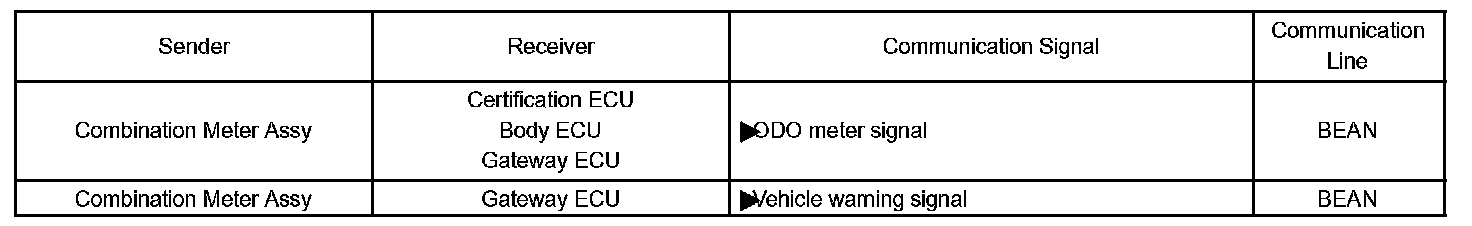

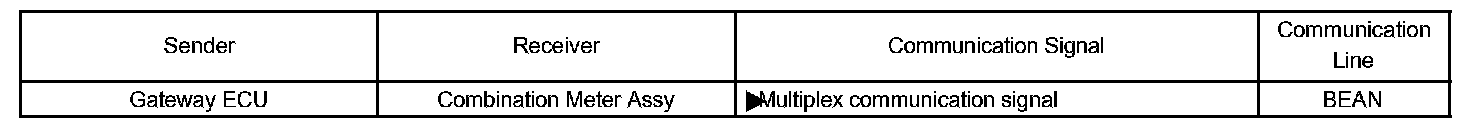

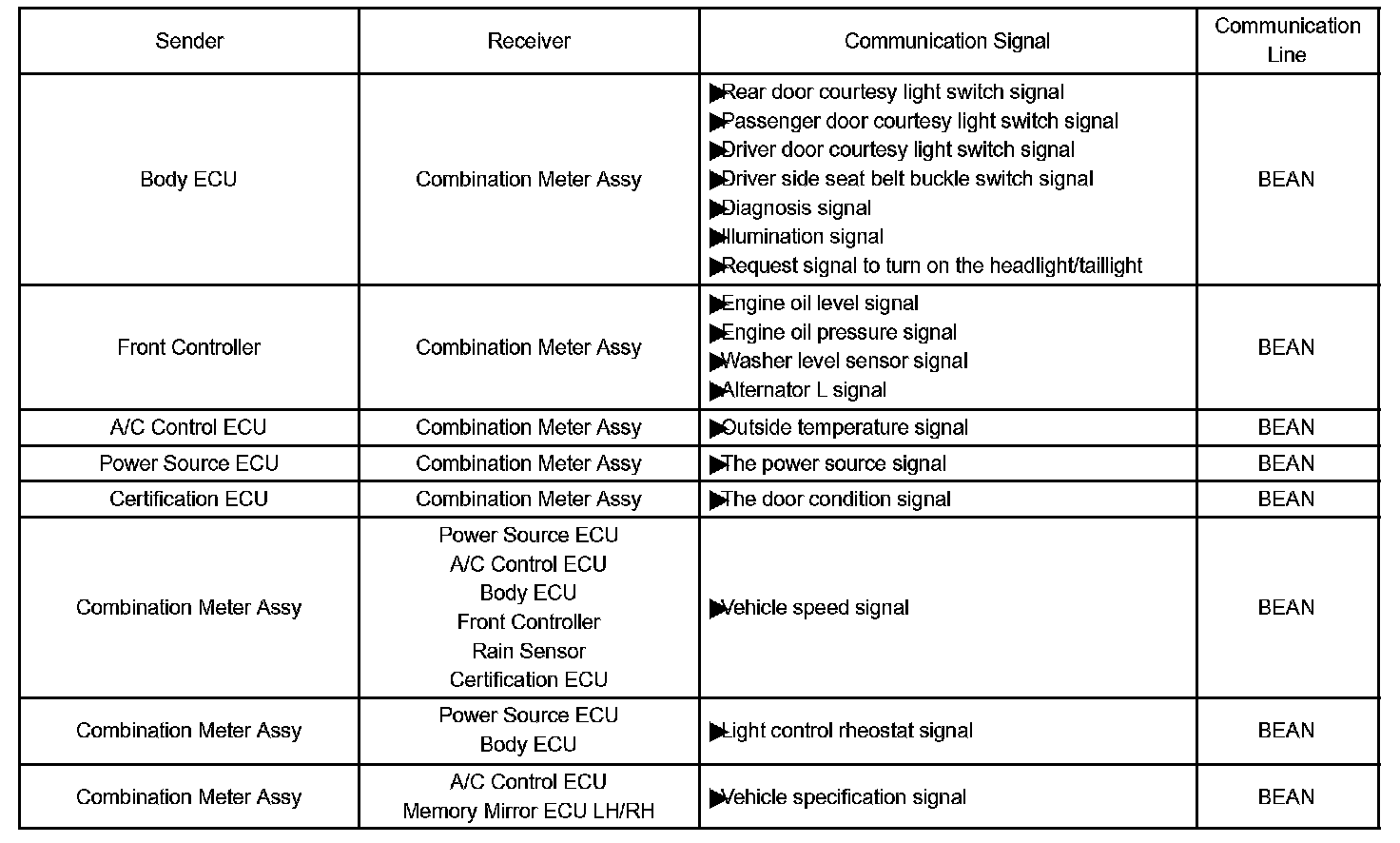

BEAN

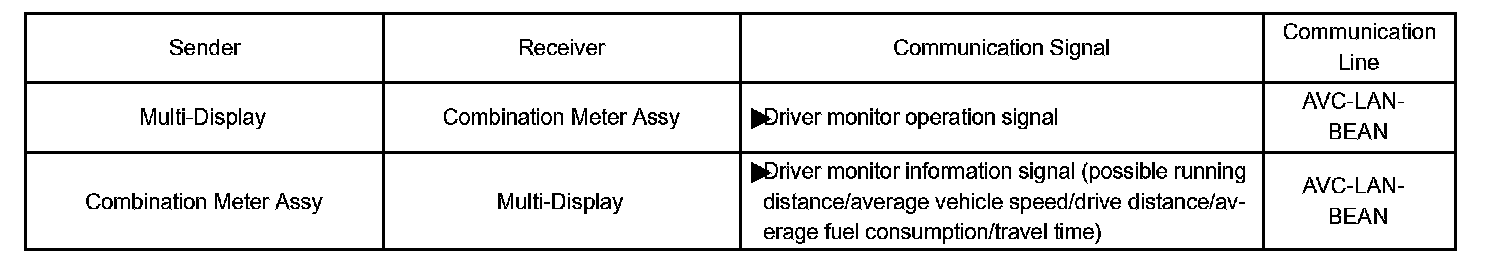

AVC-LAN

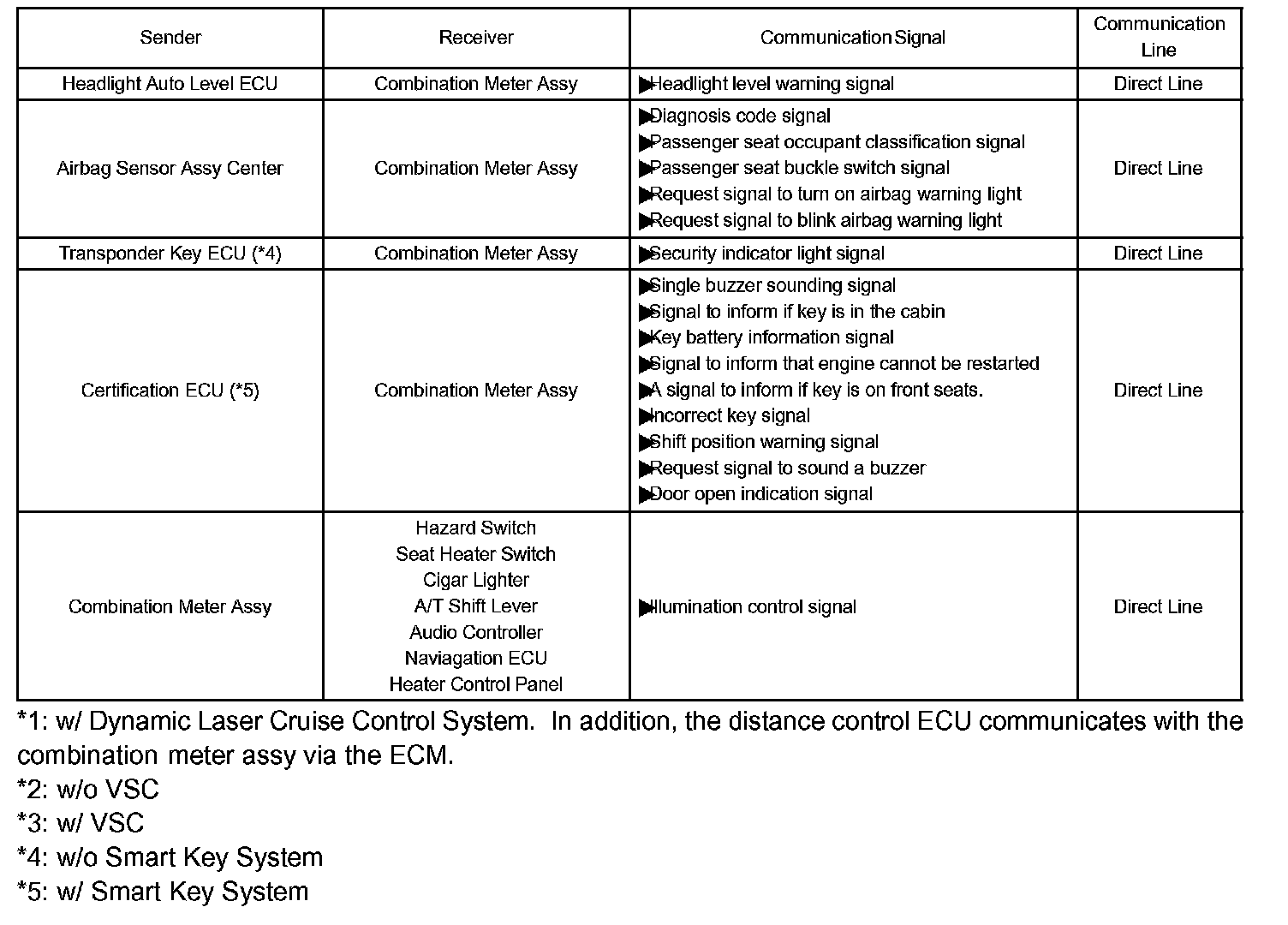

Direct Line




2. ACCESSORY METER ASSEMBLY




GATEWAY

HINT: AVC-LAN signals are transmitted to or received from the combination meter assembly through the gateway ECU.




AVC-LAN




Direct Line

SYSTEM DESCRIPTION




1. Combination Meter Assembly

HINT: CAN signals and AVC-LAN signals are transmitted to or received from the combination meter assembly through the gateway ECU.




GAUGE

Part 1:

Part 2:

WARNING/INDICATOR

MULTI-INFORMATION DISPLAY

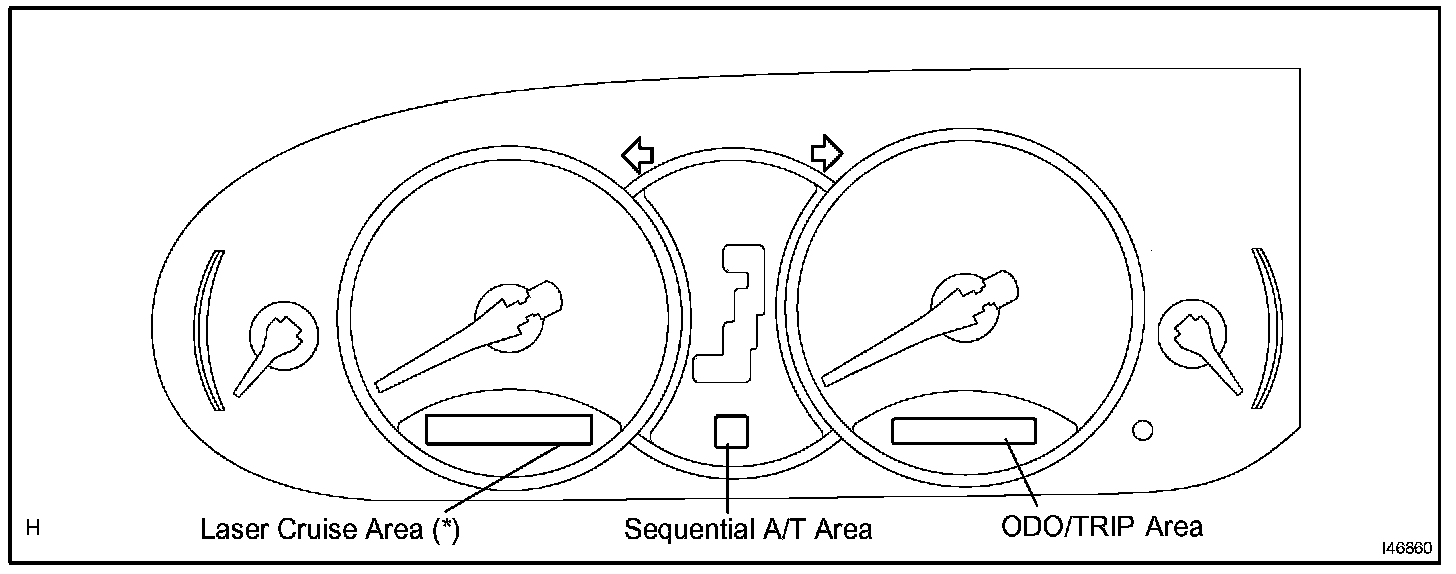

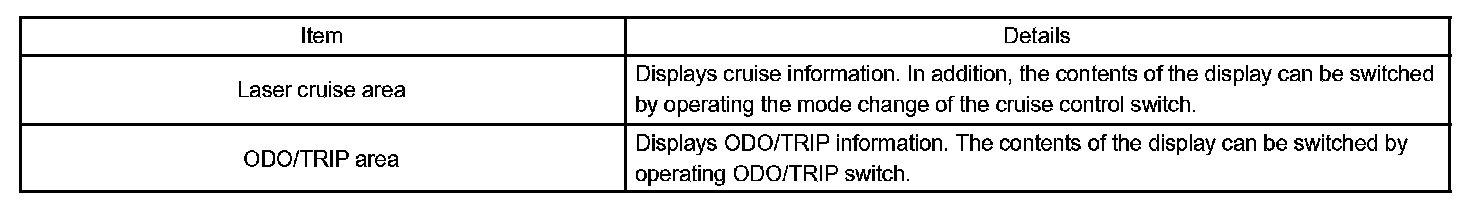

- The multi-information display consists of two display areas (Laser cruise area and ODO/TRIP area). These areas display the contents given in the table.
- A steering pad switch (for multi-information display) that switches the contents of the multi-information display has been provided on the steering wheel.

2. ACCESSORY METER ASSEMBLY

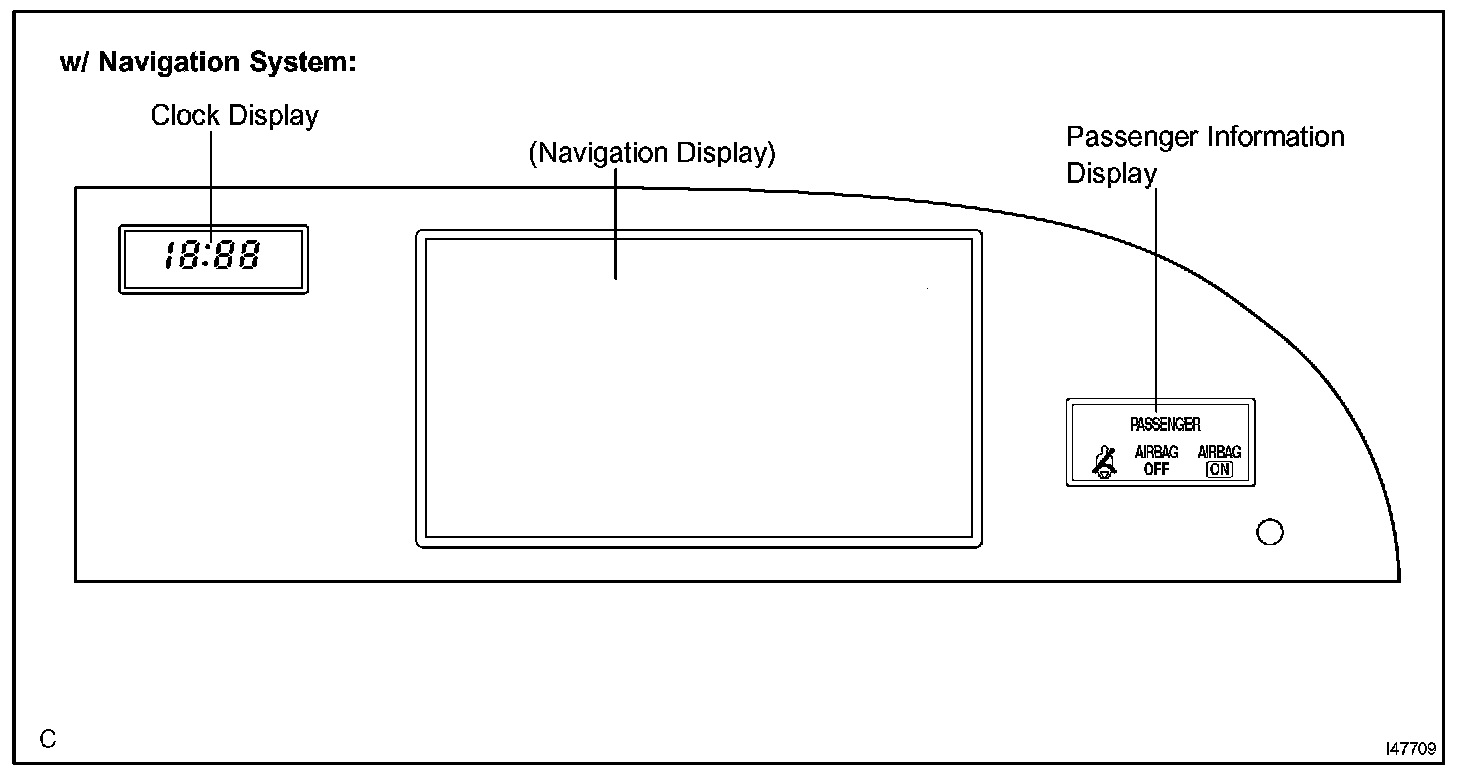

- The accessory meter assembly consists of six displays (clock display, warning display, audio display, A/C display, driver information display, and passenger information display). These areas display the contents given in the table.
