Connector Views

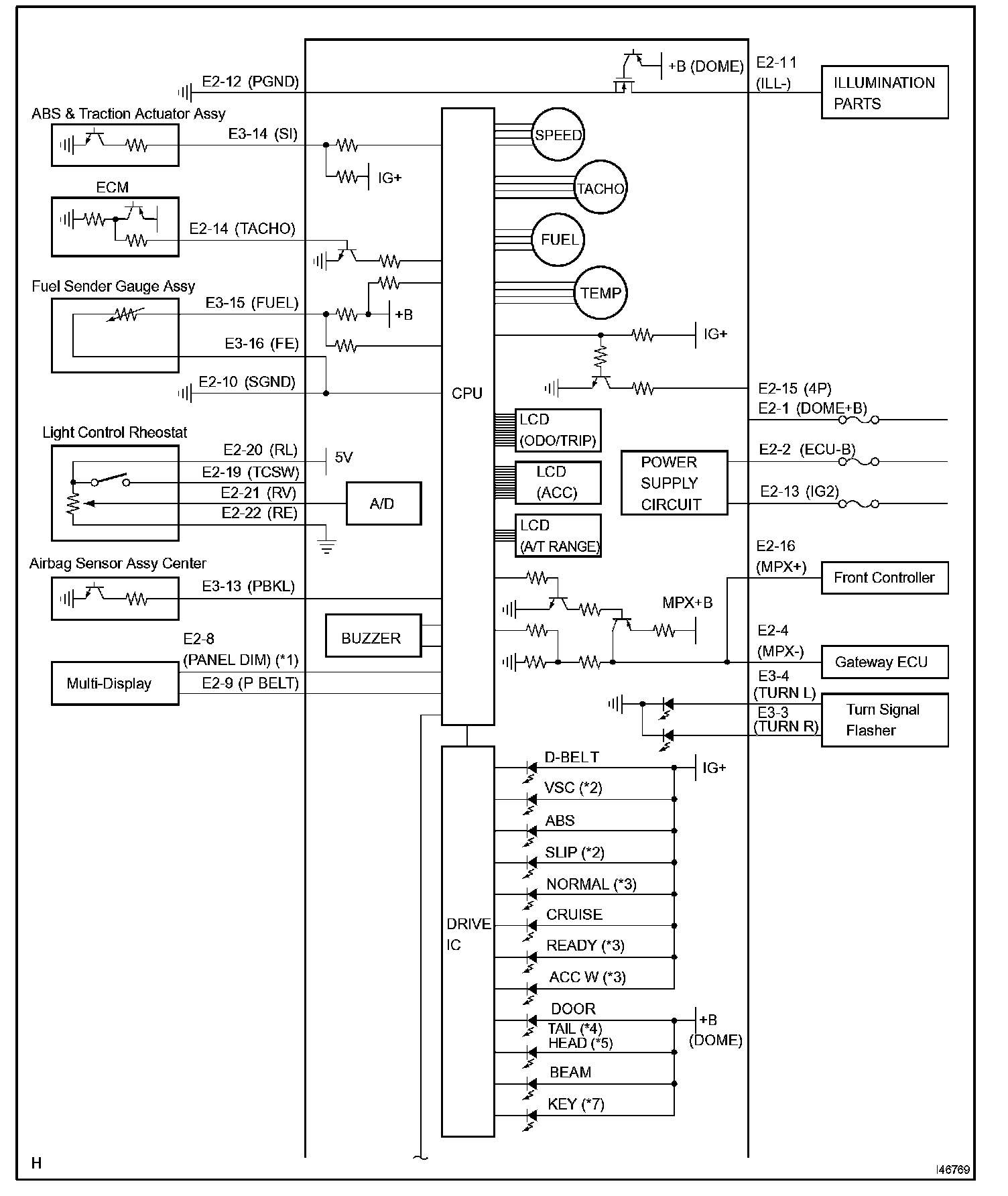

Terminals Of Control Module/Pinouts - Combination Meter Inner Circuit Part 1:

Terminals Of Control Module/Pinouts - Combination Meter Inner Circuit Part 2:

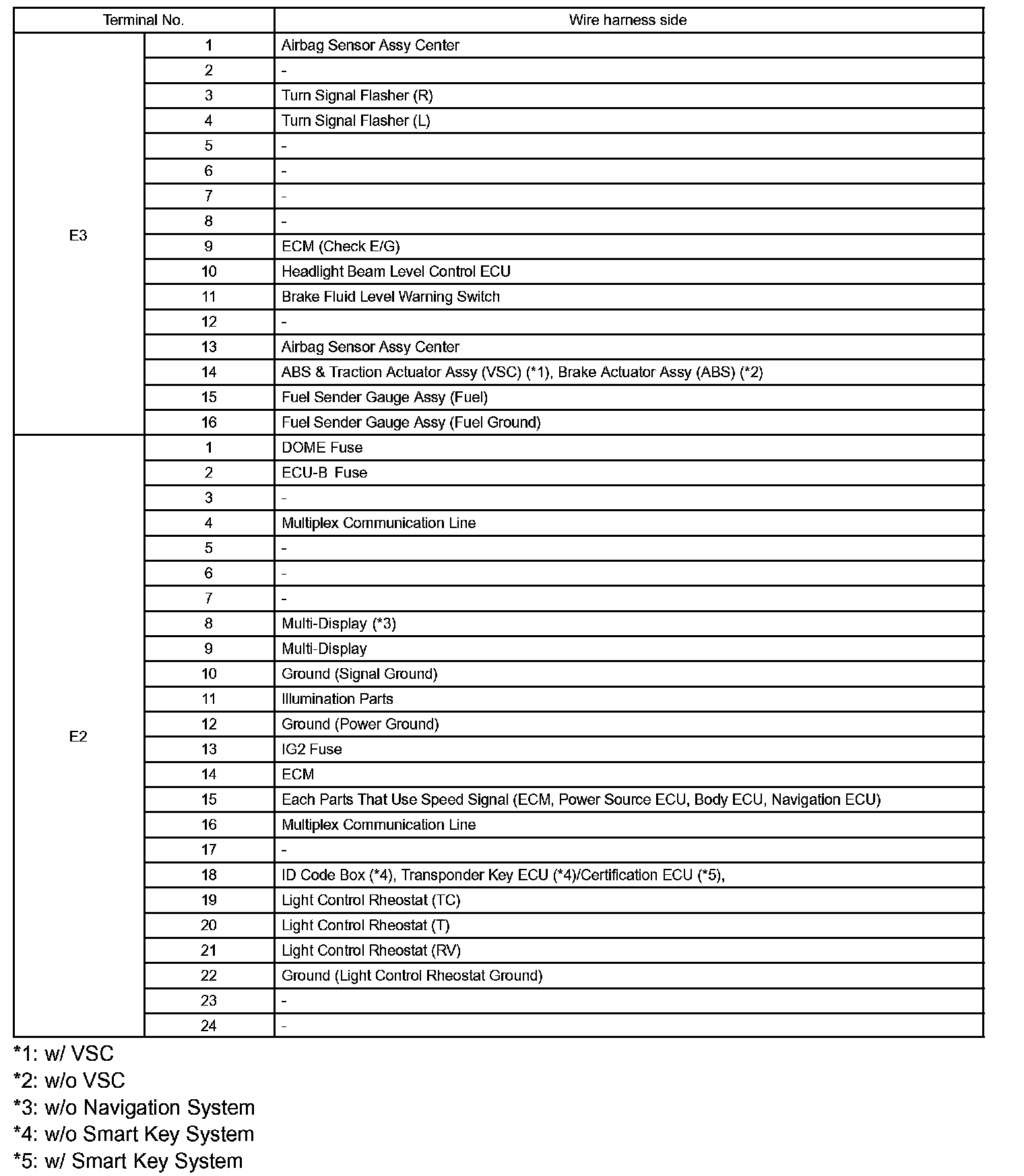

Terminals Of Control Module/Pinouts - Connectors:

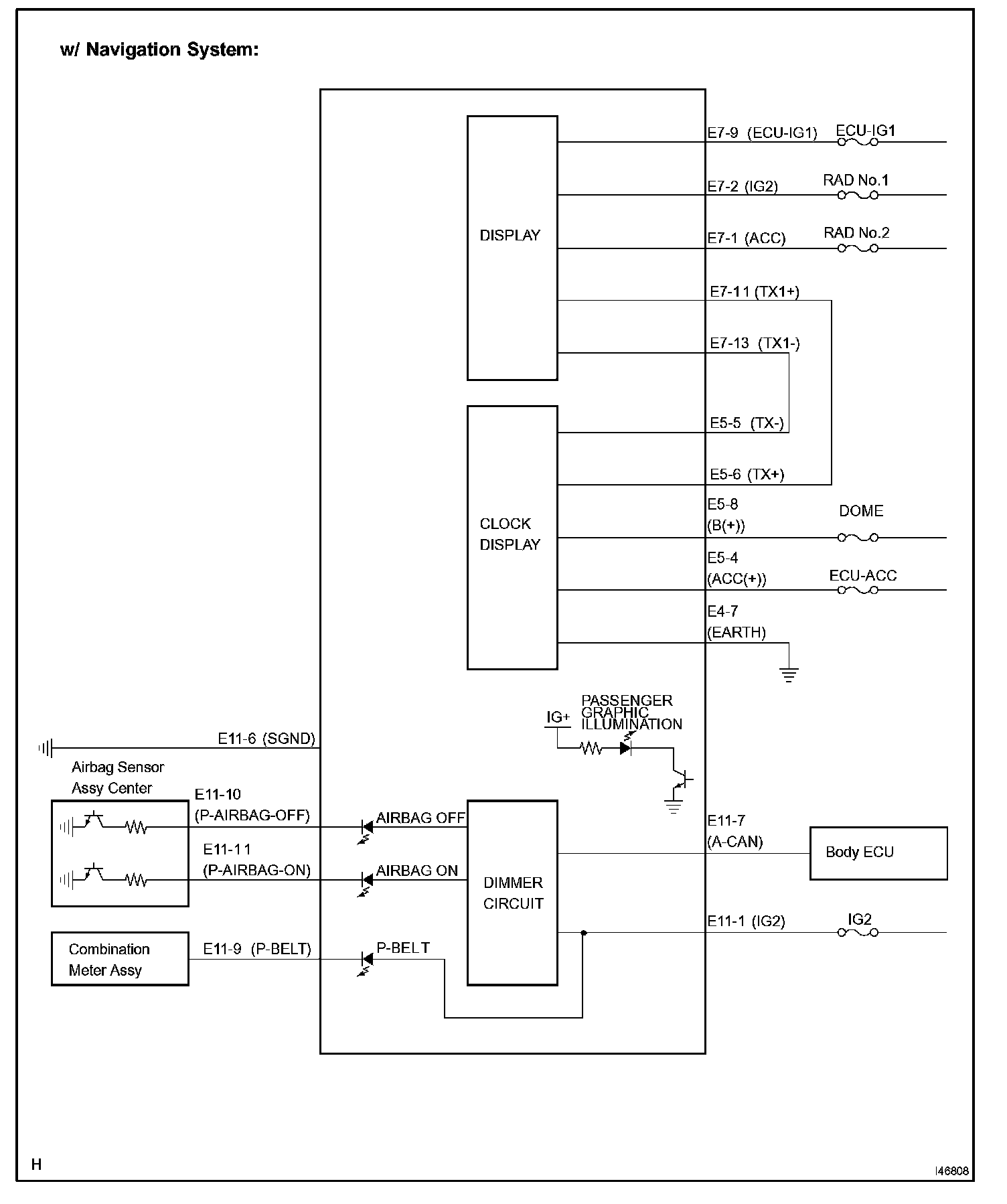

Terminals Of Control Module/Pinouts - Accessory Meter Inner Circuit Part 1:

Terminals Of Control Module/Pinouts - Accessory Meter Inner Circuit Part 2:

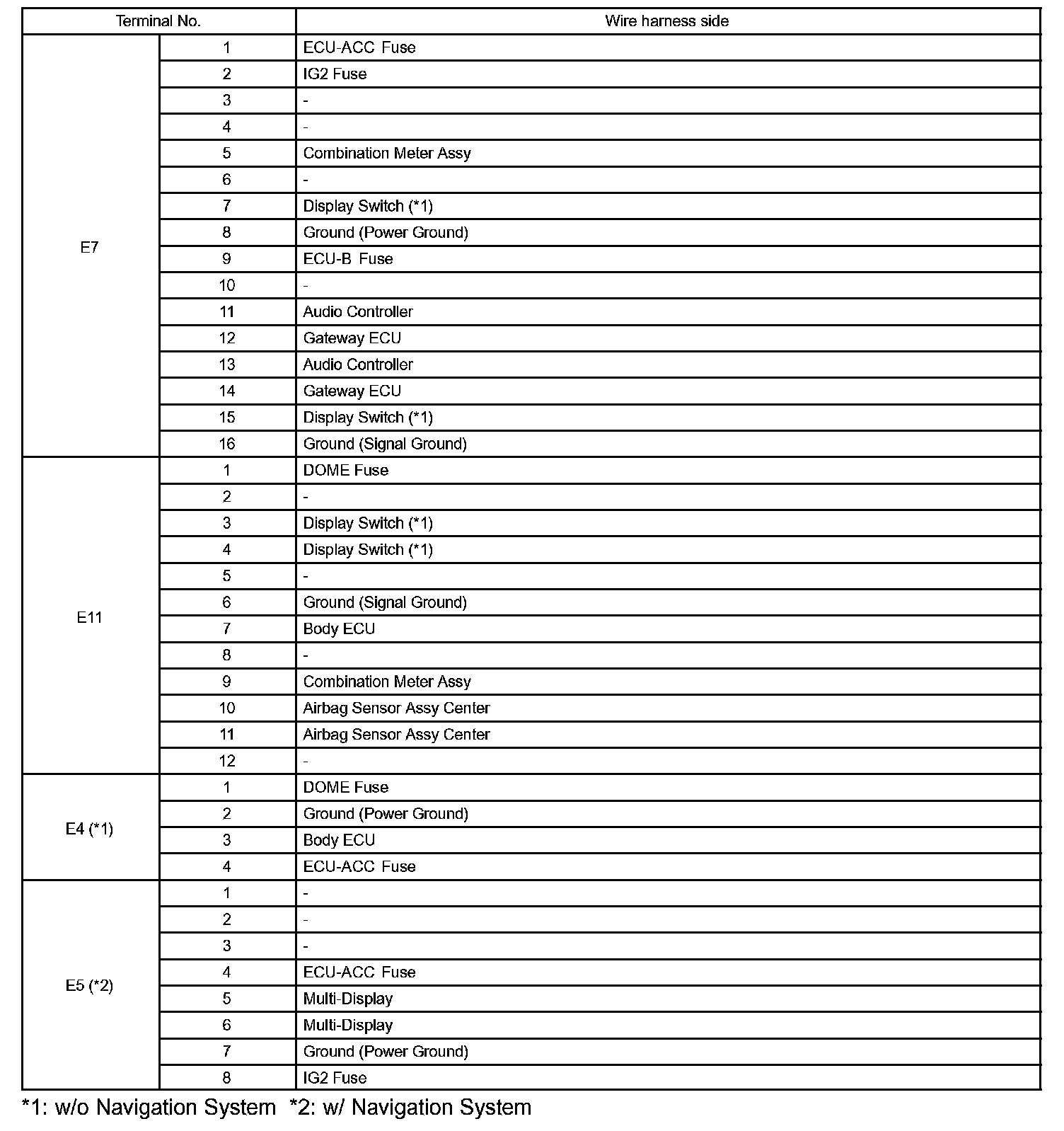

Terminals Of Control Module/Pinouts - Connectors:
