Pinout Values and Diagnostic Parameters

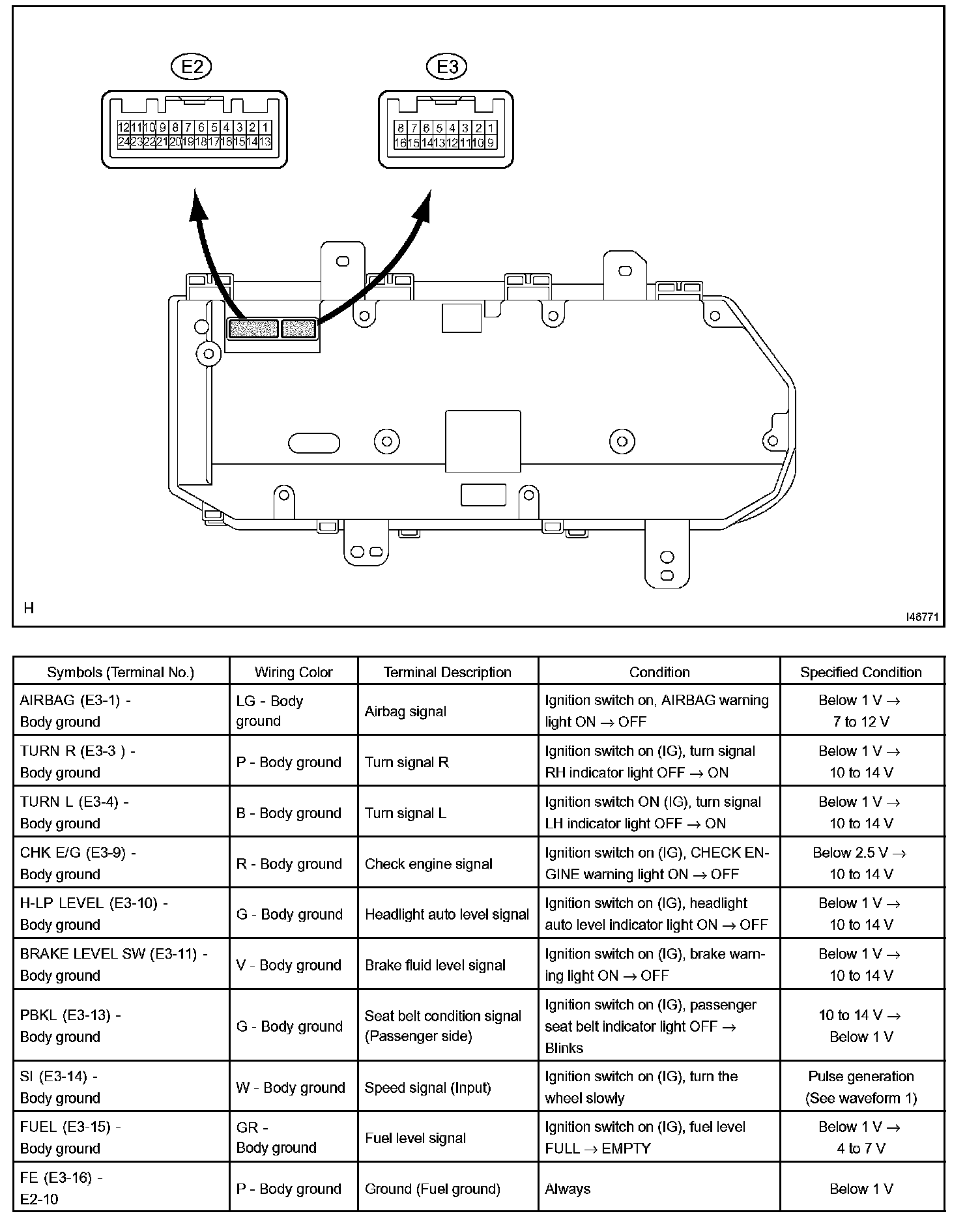

Terminals Of Control Module/Pinouts - Combination Meter Assy Part 1:

Terminals Of Control Module/Pinouts - Combination Meter Assy Part 2:

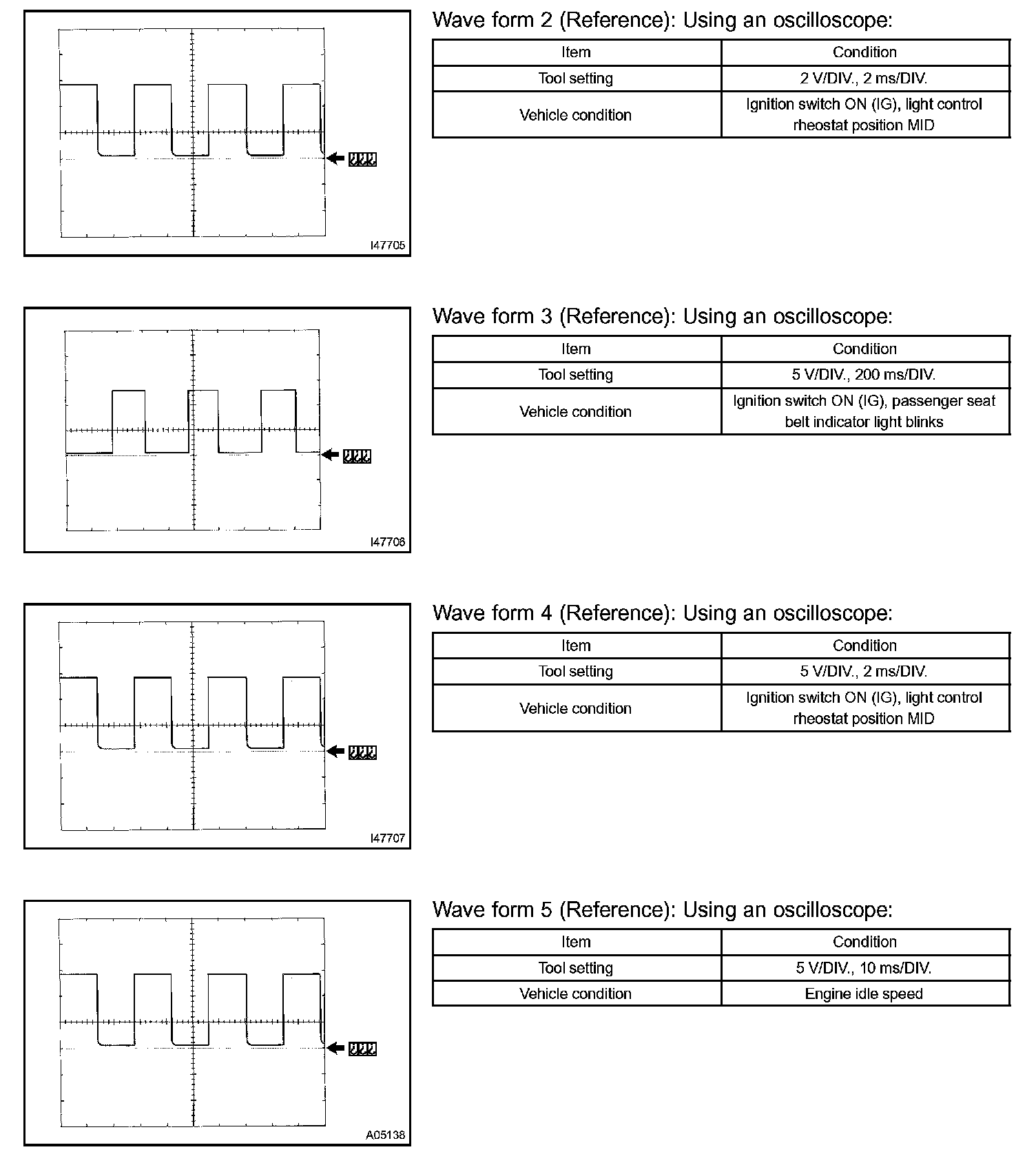

Oscilloscope Waveforms Part 1:

Oscilloscope Waveforms Part 2:

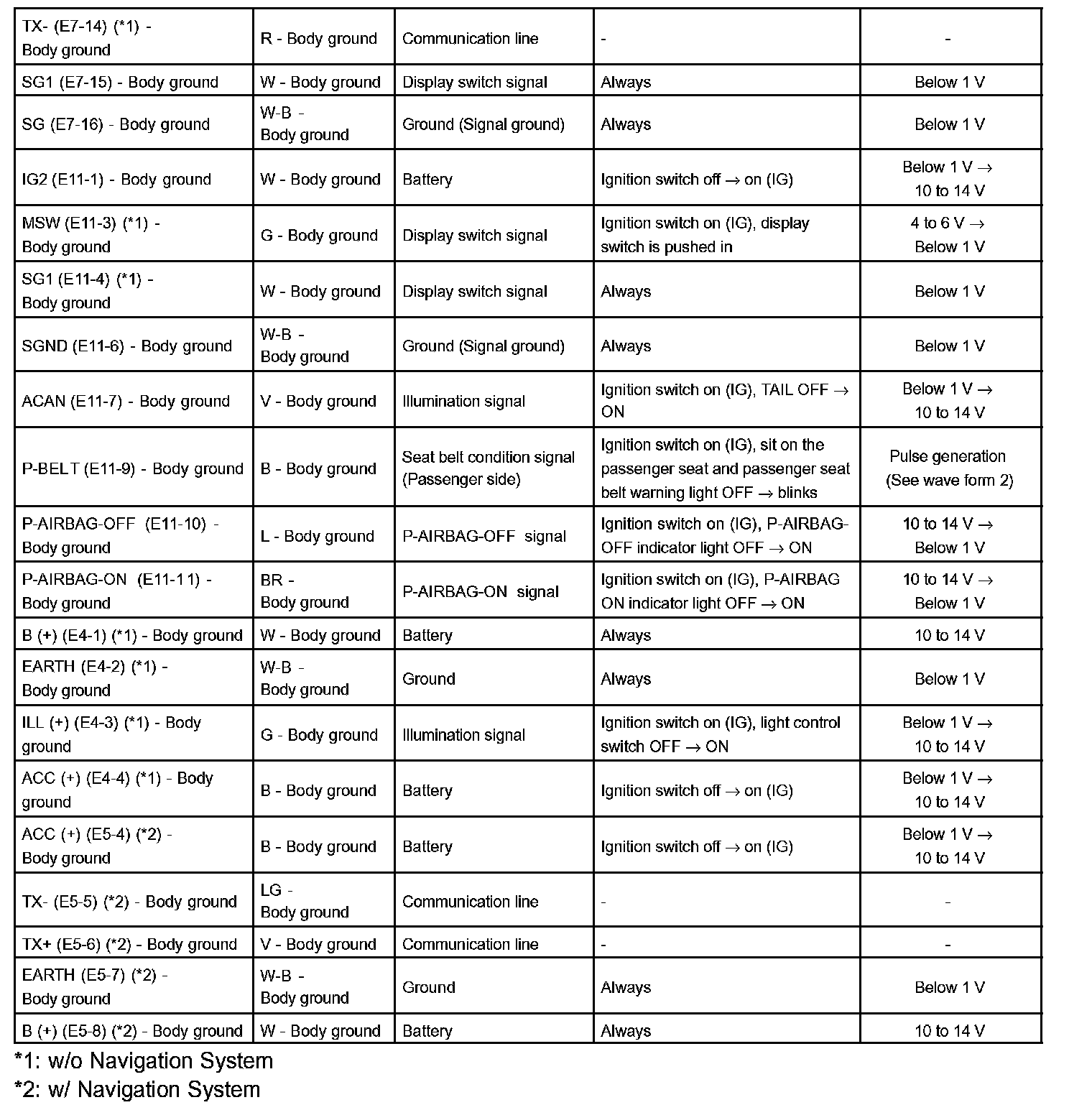

Terminals Of Control Module/Pinouts - Accessory Meter Assy Part 1:

Terminals Of Control Module/Pinouts - Accessory Meter Assy Part 2:

Oscilloscope Waveforms Part 1:

Oscilloscope Waveforms Part 2:

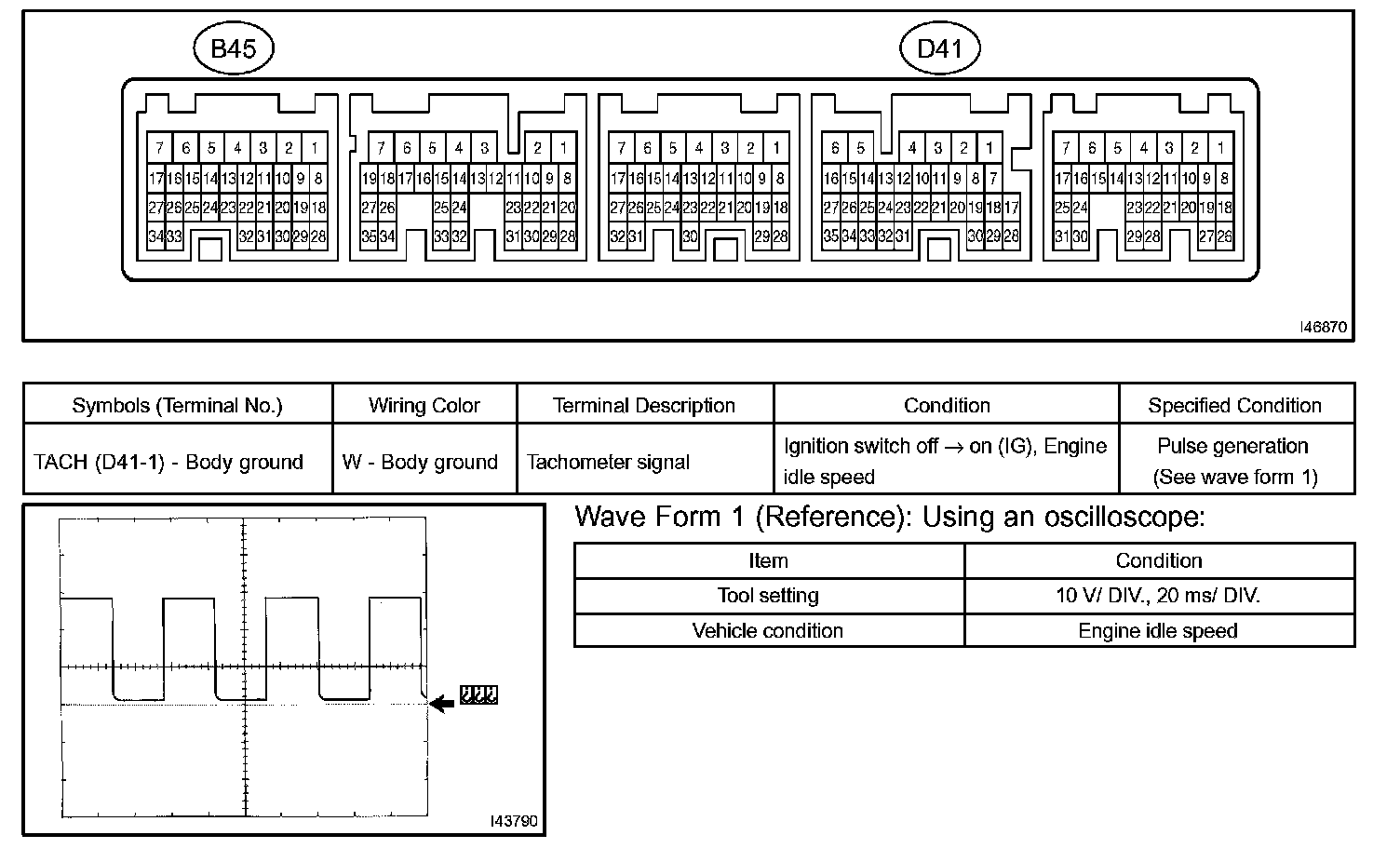

Terminals Of Control Module/Pinouts - ECM:
