Ambient Light Sensor
>>
Locations
Ambient Light Sensor: Locations

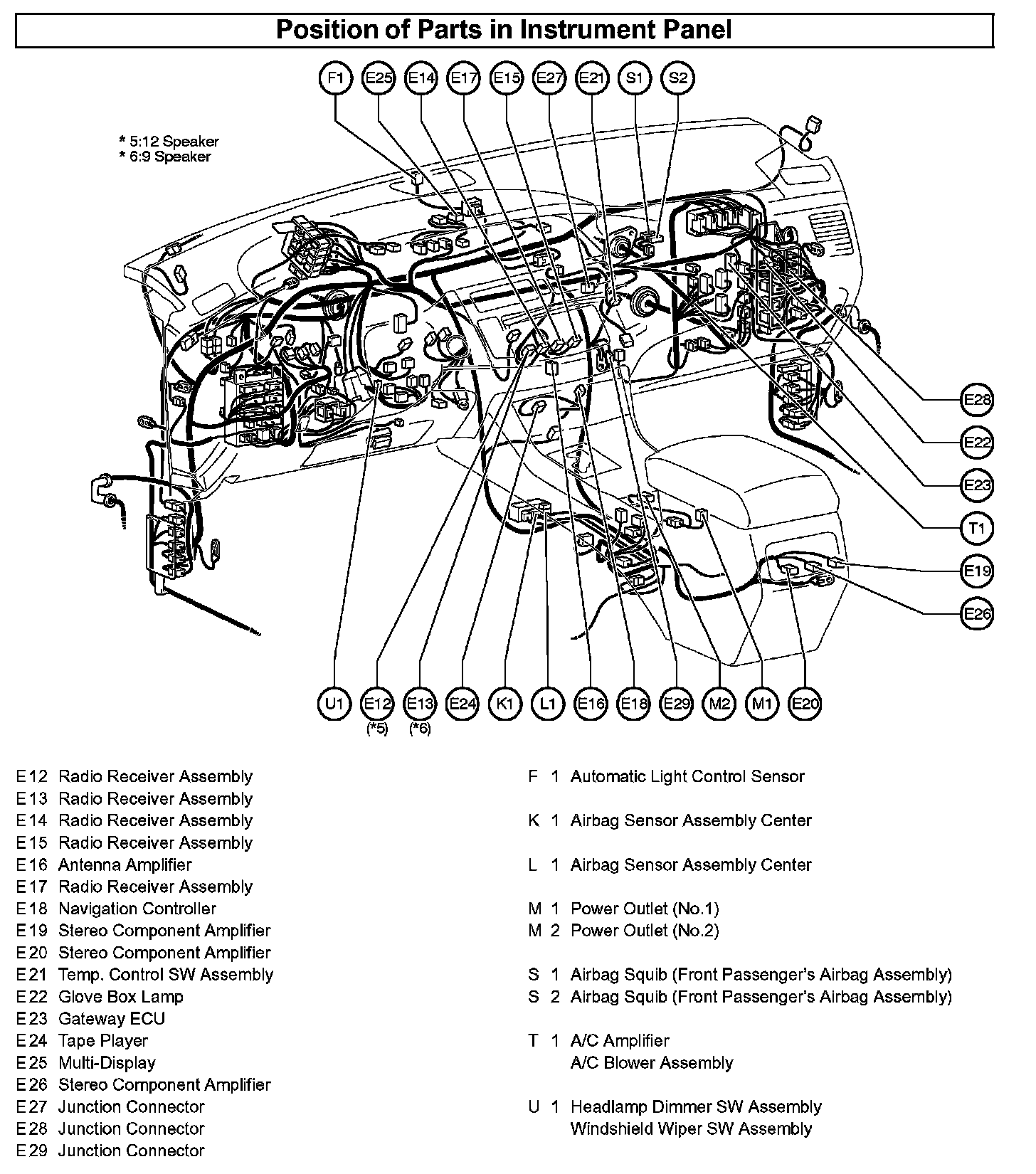

Position of Parts In Instrument Panel:
Lighting System:
