Brake Light Switch: Testing and Inspection

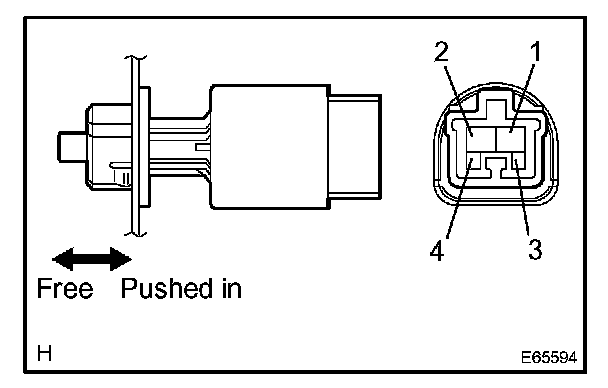

STOP LIGHT SWITCH ASSEMBLY
a. Inspect the stop light switch assembly.

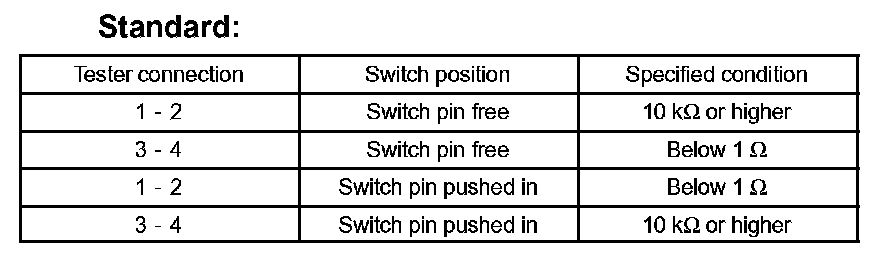

1. Measure the resistance according to the value(s) in the table.
