Courtesy Lamp: Testing and Inspection

COURTESY LIGHT ASSEMBLY
a. Inspect the courtesy light.

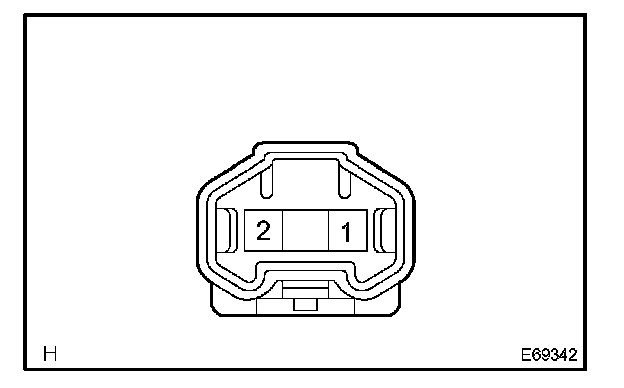

1. Connect the (+) lead from the battery to terminal 2 and the (-) lead to terminal 1, then check that the courtesy light comes on.

OK: The light comes on.
