License Plate Lamp: Service and Repair

LICENSE PLATE LIGHT ASSEMBLY

OVERHAUL

HINT: Installation is in the reverse order of removal.

1. REMOVE REAR FLOOR FINISH PLATE




2. REMOVE LICENSE PLATE LIGHT ASSEMBLY
a. Disconnect the connector.

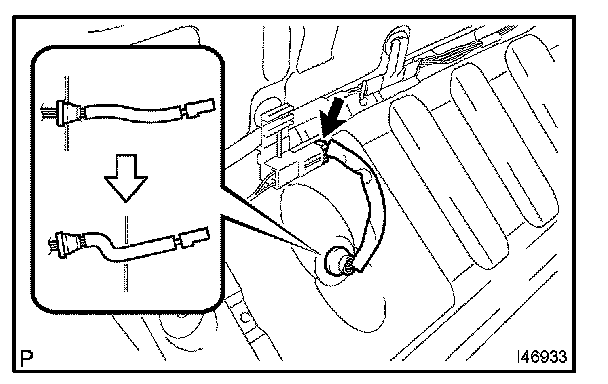

b. Remove the grommet as shown in the illustration.




c. Disengage the 2 claws and remove the license plate light assembly as shown in the illustration.




3. REMOVE LICENSE PLATE LIGHT LENS & COVER
a. Remove the license plate light lens & cover as shown in the illustration.

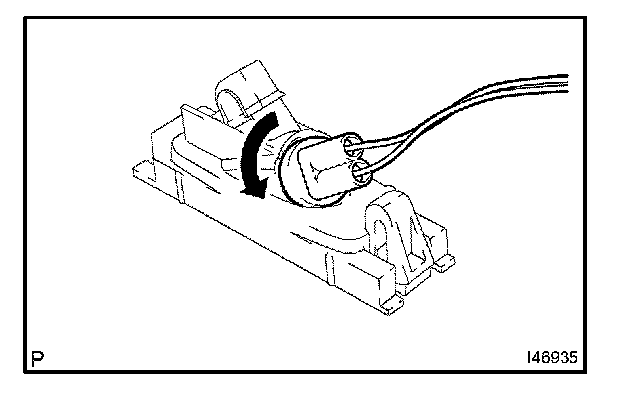

4. REMOVE LICENSE PLATE LIGHT BULB
