Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

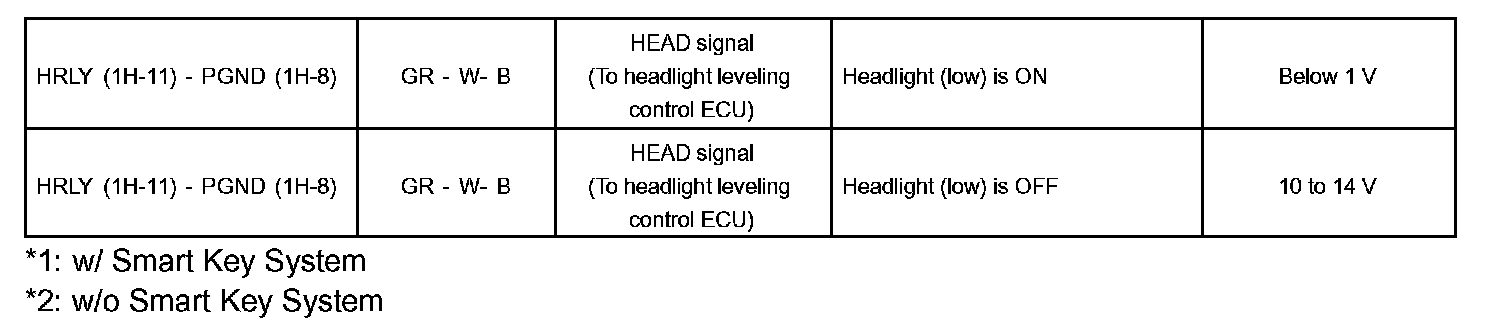

Terminals Of Control Module/Pinouts - Engine Room J/B Assy (front Controller) Part 1:

Terminals Of Control Module/Pinouts - Engine Room J/B Assy (front Controller) Part 2:

Engine Room J/B Assembly (Front Controller)

Terminals Of Control Module/Pinouts - Instrument Panel Junction Block Asst ( Body ECU) Part 1:

Terminals Of Control Module/Pinouts - Instrument Panel Junction Block Assy (Body ECU) Part 2:

Terminals Of Control Module/Pinouts - Instrument Panel Junction Block Assy (Body ECU) Part 3:

Terminals Of Control Module/Pinouts - Instrument Panel Junction Block Assy (Body ECU) Part 4:

Terminals Of Control Module/Pinouts - Instrument Panel Junction Block Assy (Body ECU) Part 5:

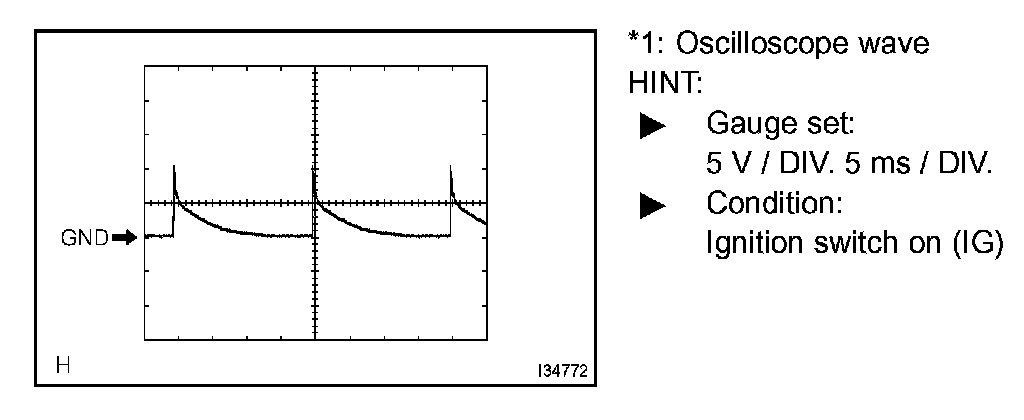

Oscilloscope Waveform:

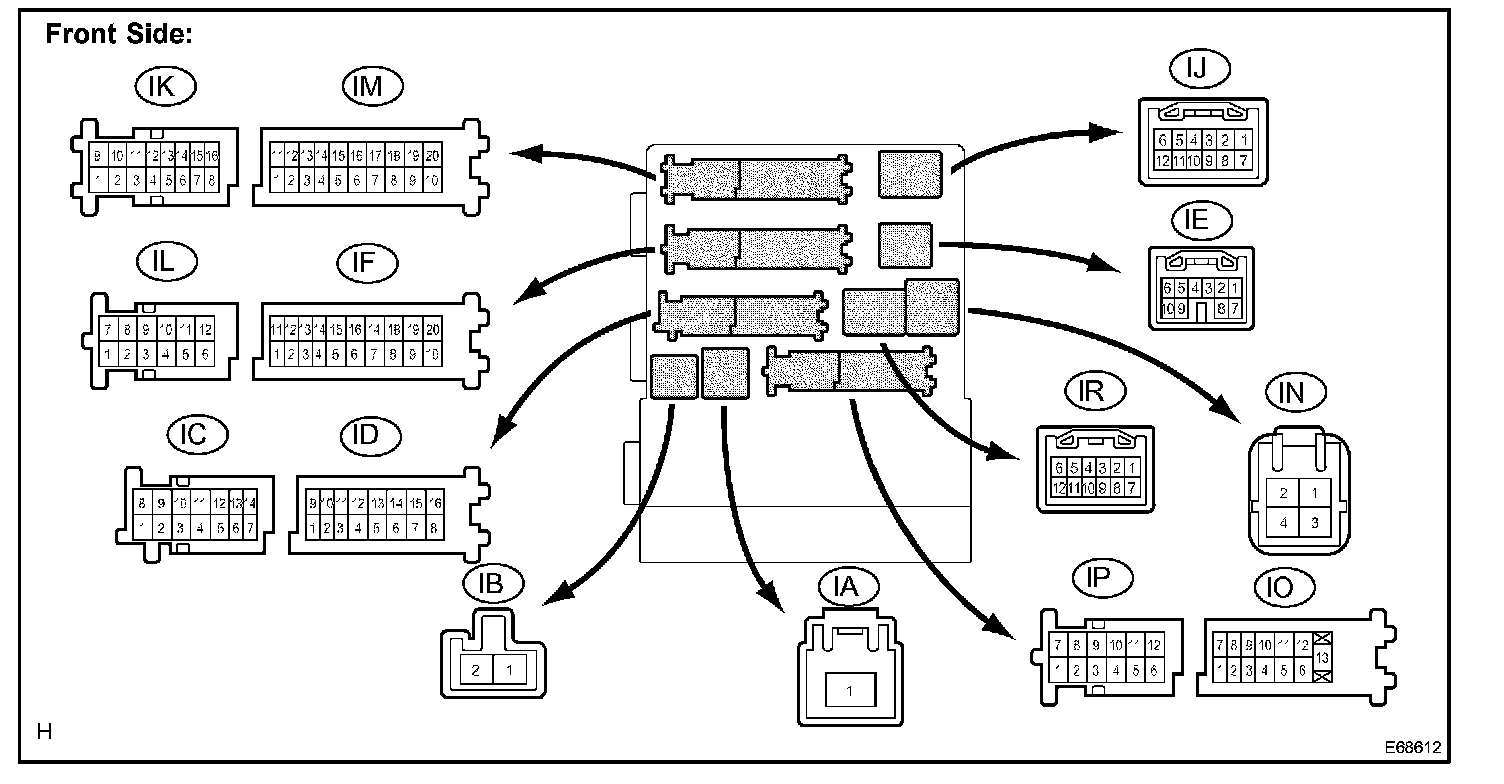

Instrument Panel Junction Block Assembly (Body ECU)

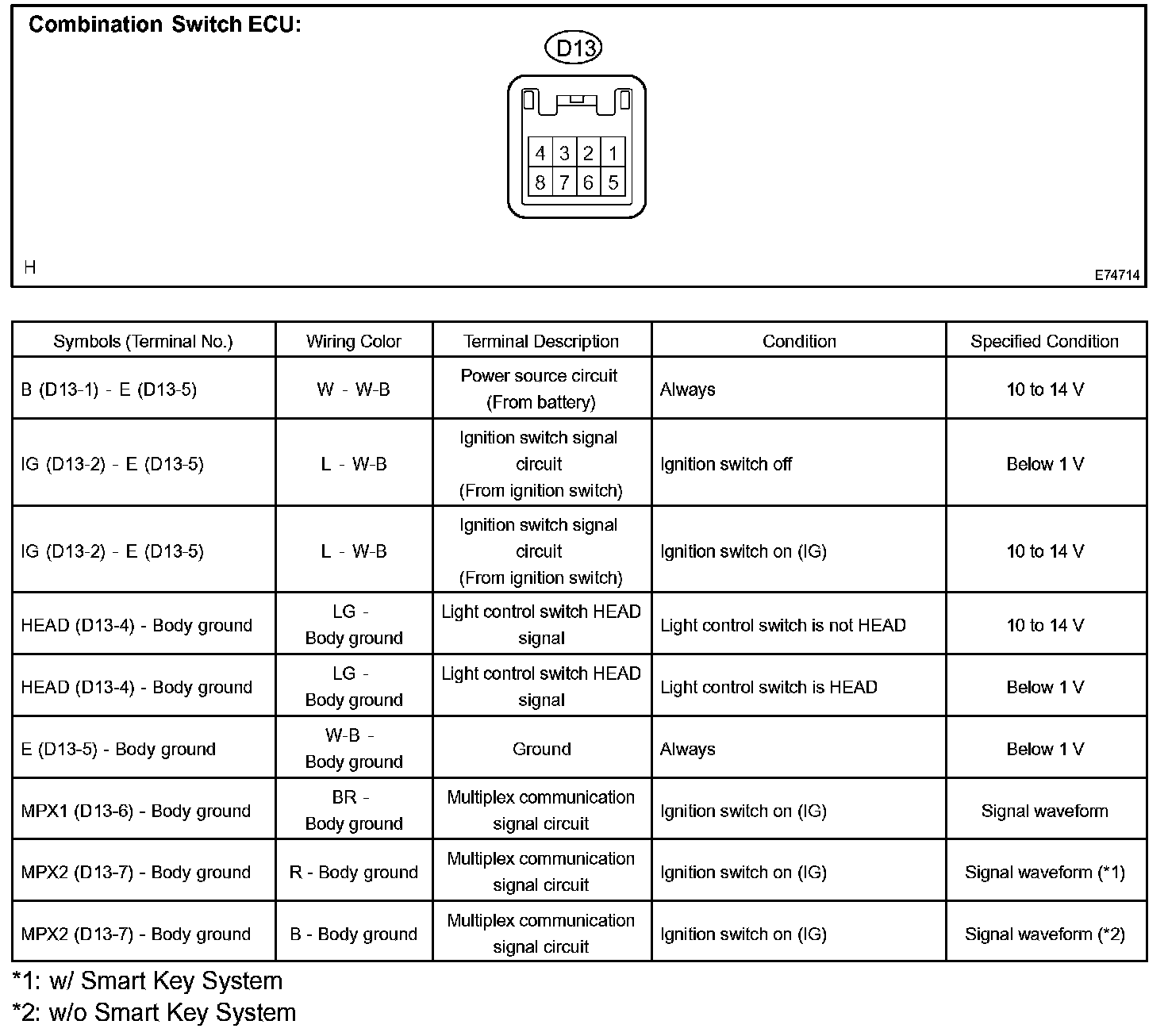

Terminals Of Control Module/Pinouts - Combination Switch ECU (Windshield Wiper Switch Assy) Part 1:

Combination Switch ECU (Windshield Wiper Switch Assembly)

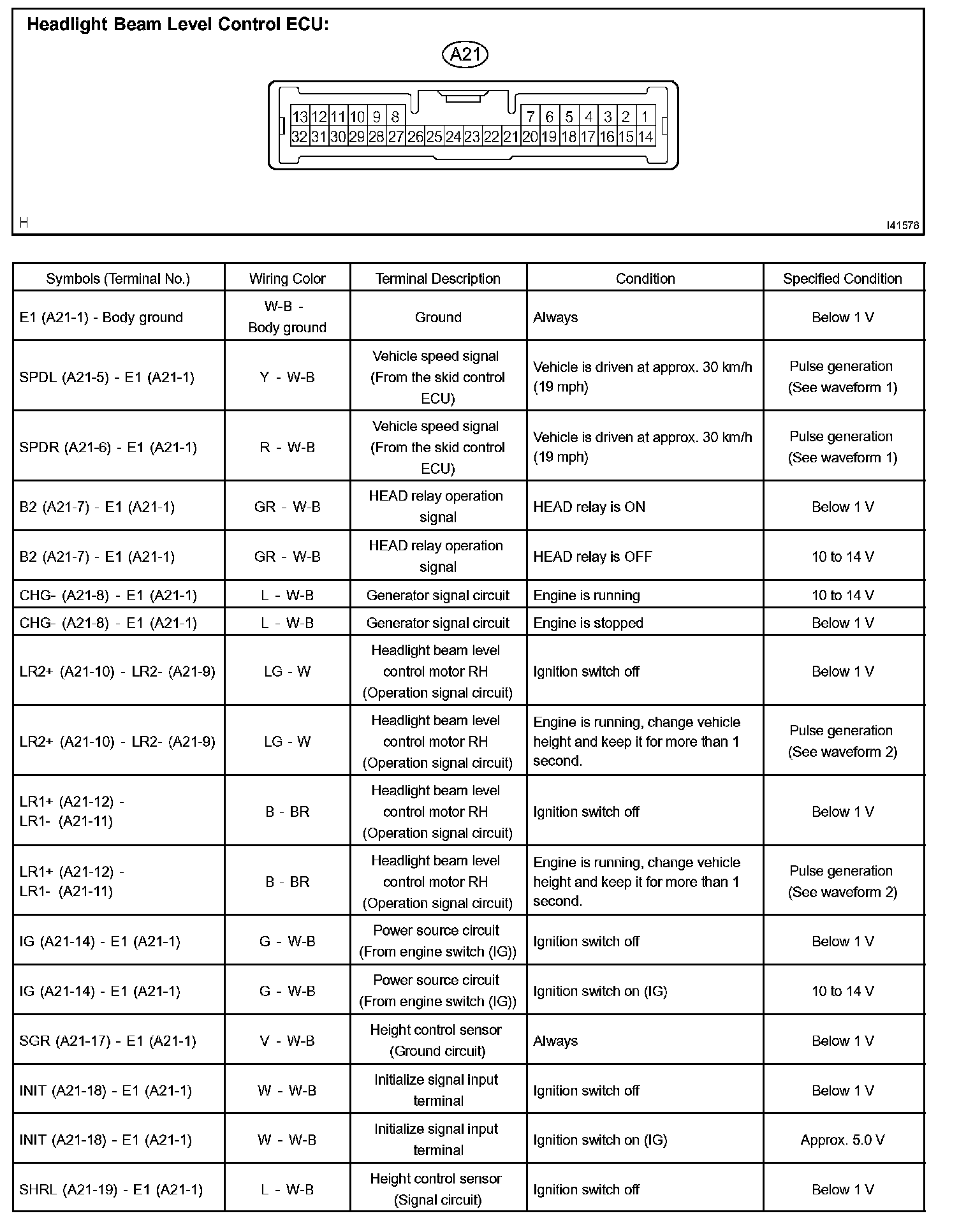

Terminals Of Control Module/Pinouts - Headlight Beam Level Control ECU Part 1:

Terminals Of Control Module/Pinouts - Headlight Beam Level Control ECU Part 2:

Oscilloscope Waveforms:

Headlight Beam Level Control ECU
