Multiple Junction Connector: Locations

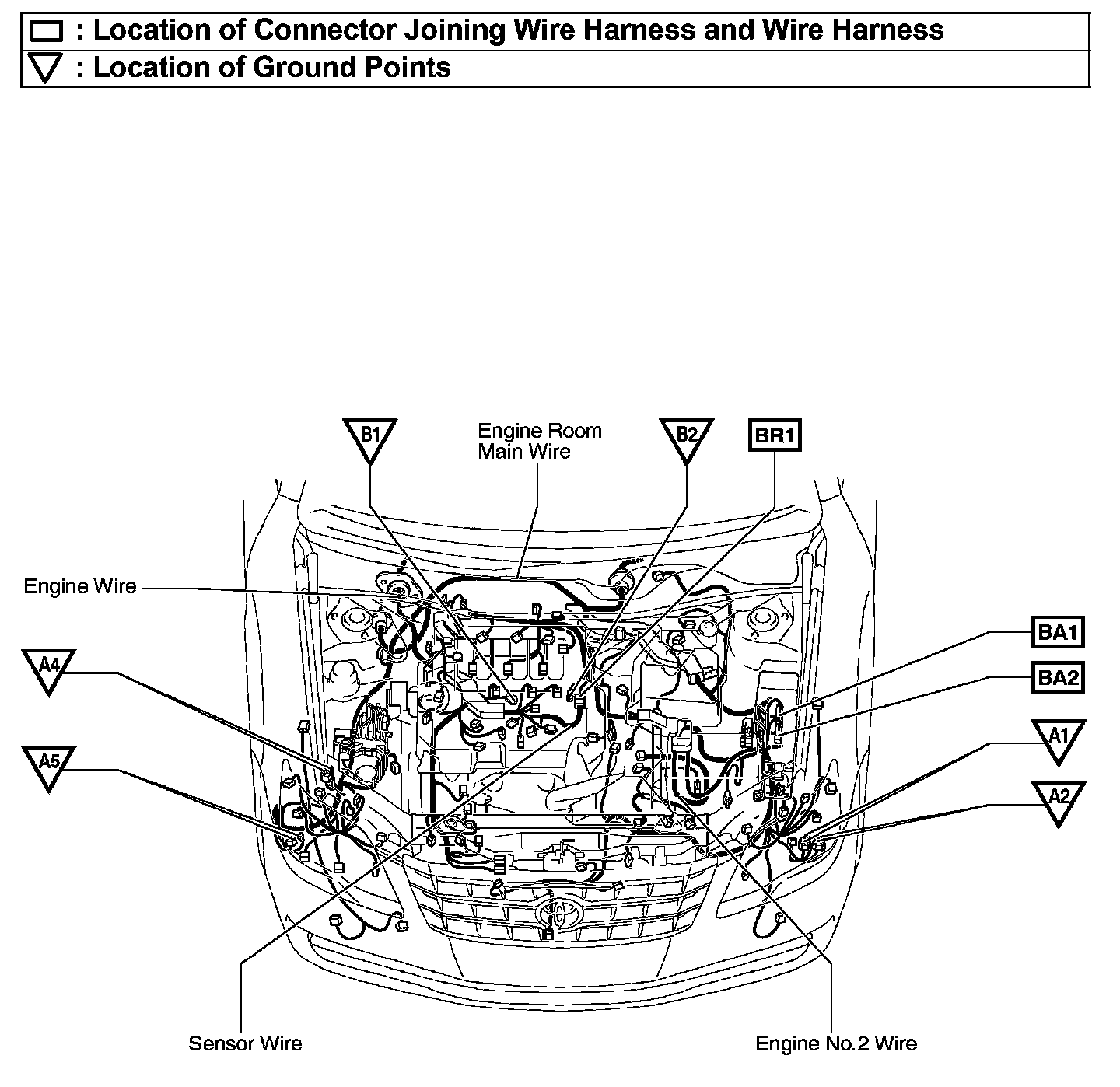

A1 - B2, BA1 - BR1:



AD1 - DL3:

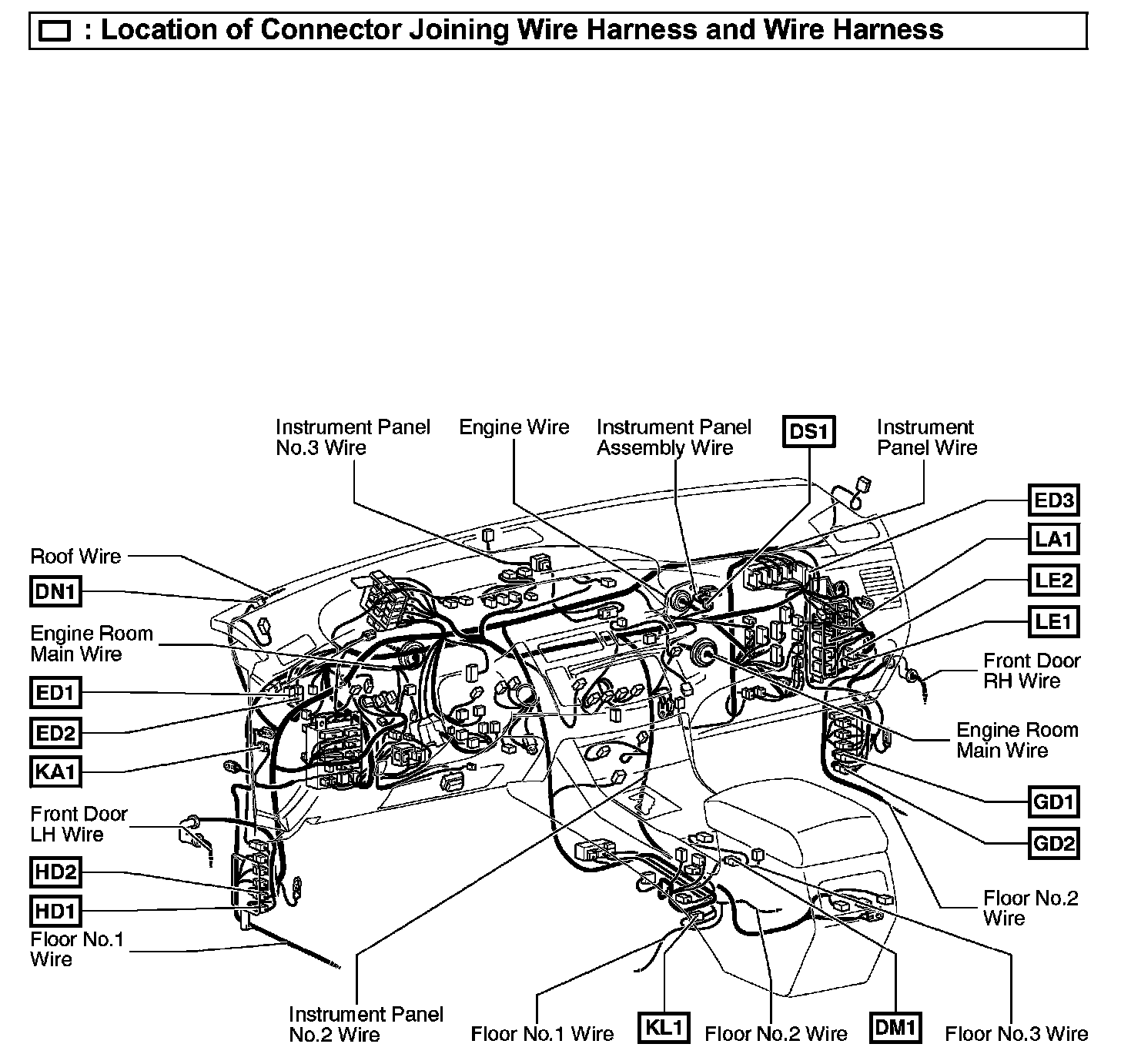

DN1 - KL1:

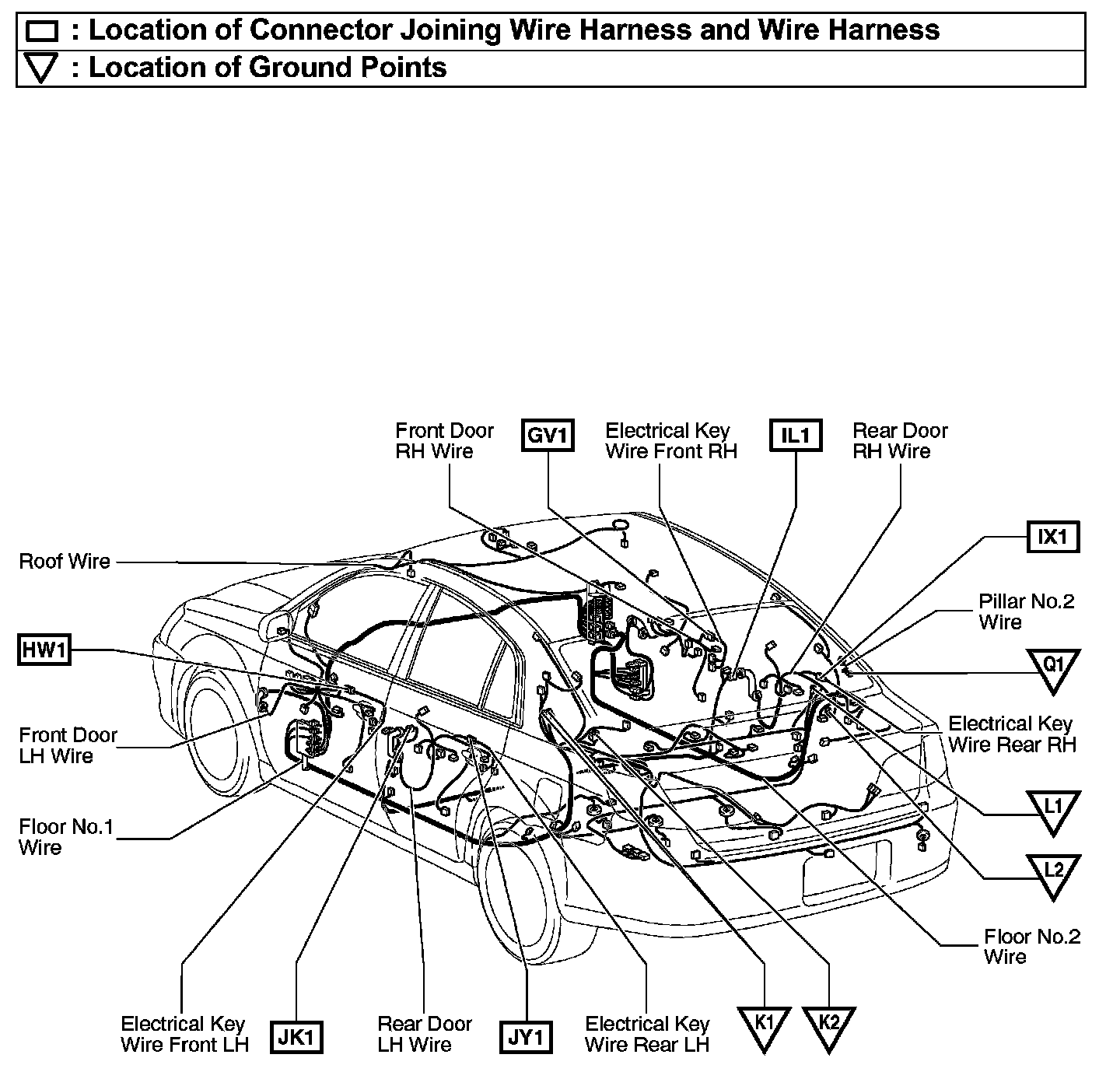

GV1 - JK1, K1 - Q1:

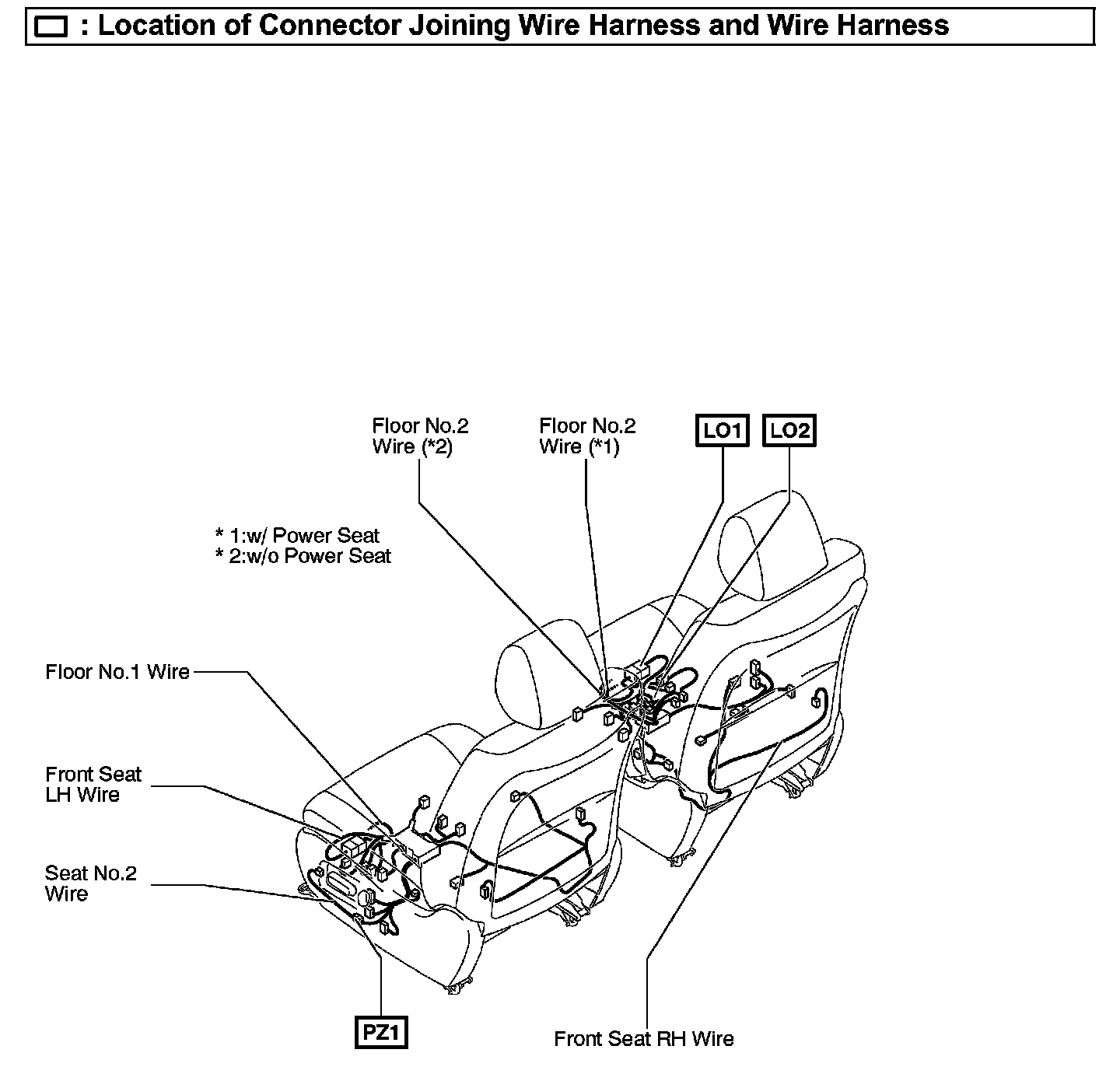

LO1 - PZ1:
