Power Distribution Relay: Locations

Instrument Panel J/B - Lower Finish Panel:

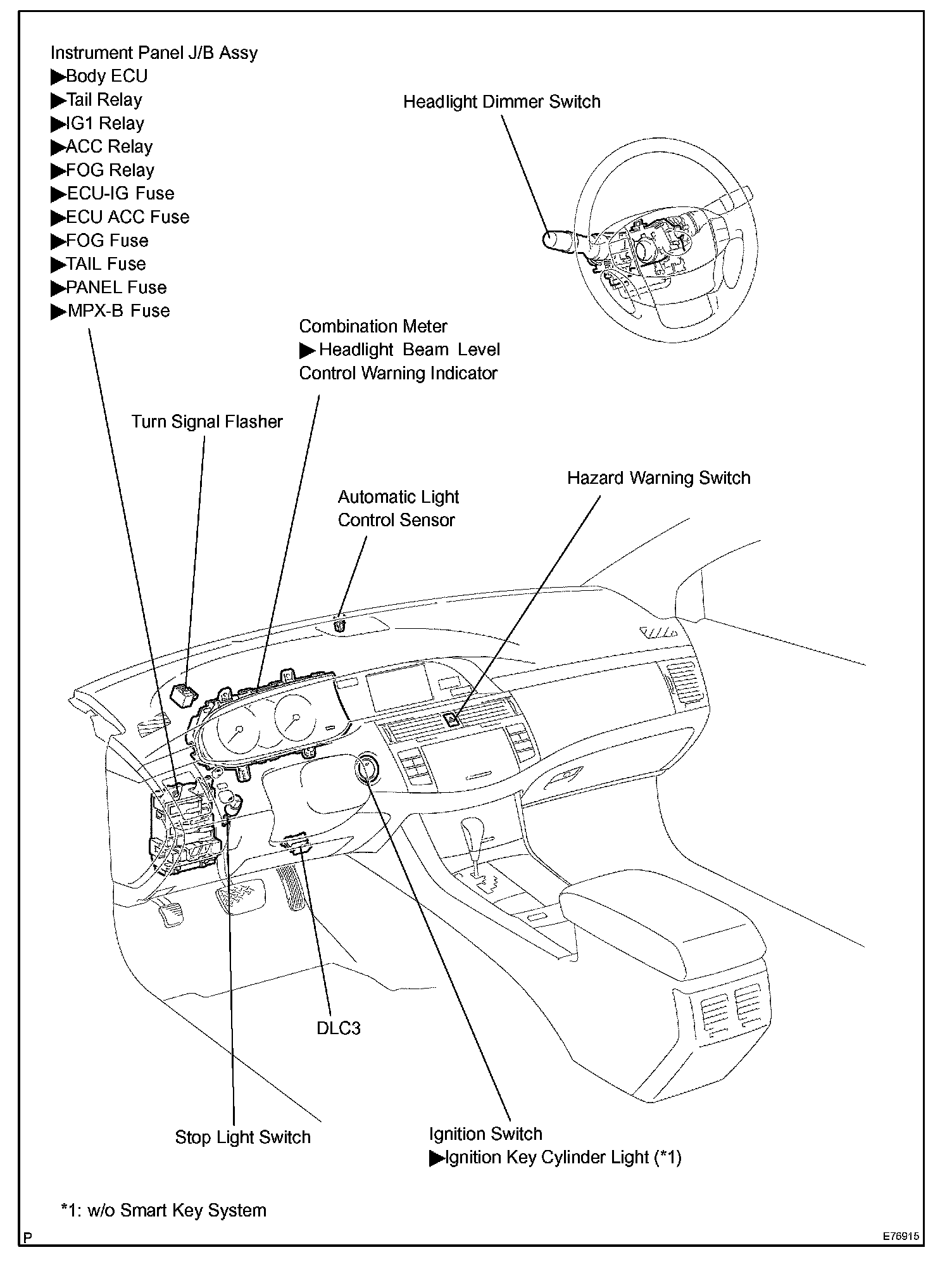

Lighting System:

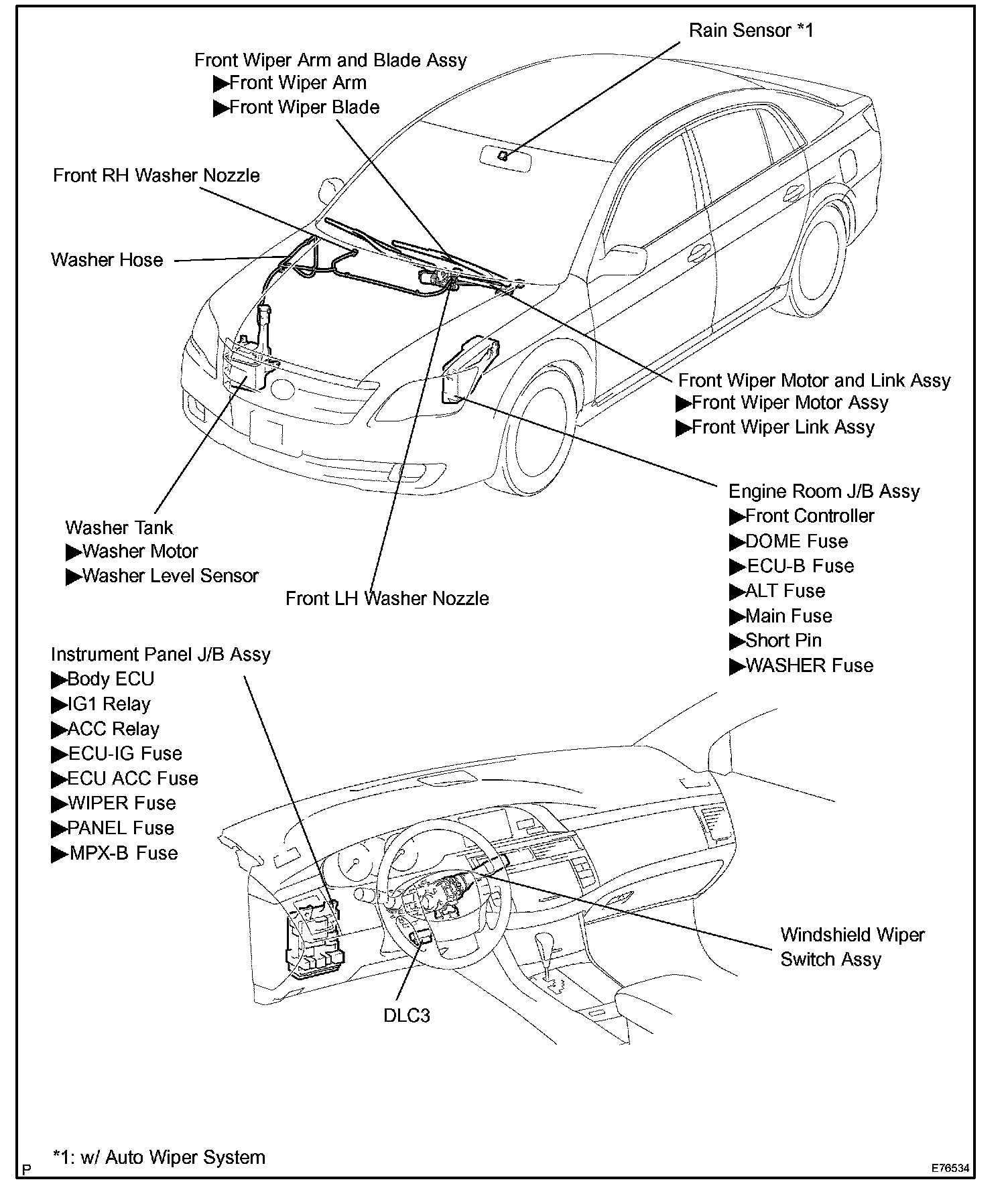

Wiper And Washer System:



Power Door Lock Control System:

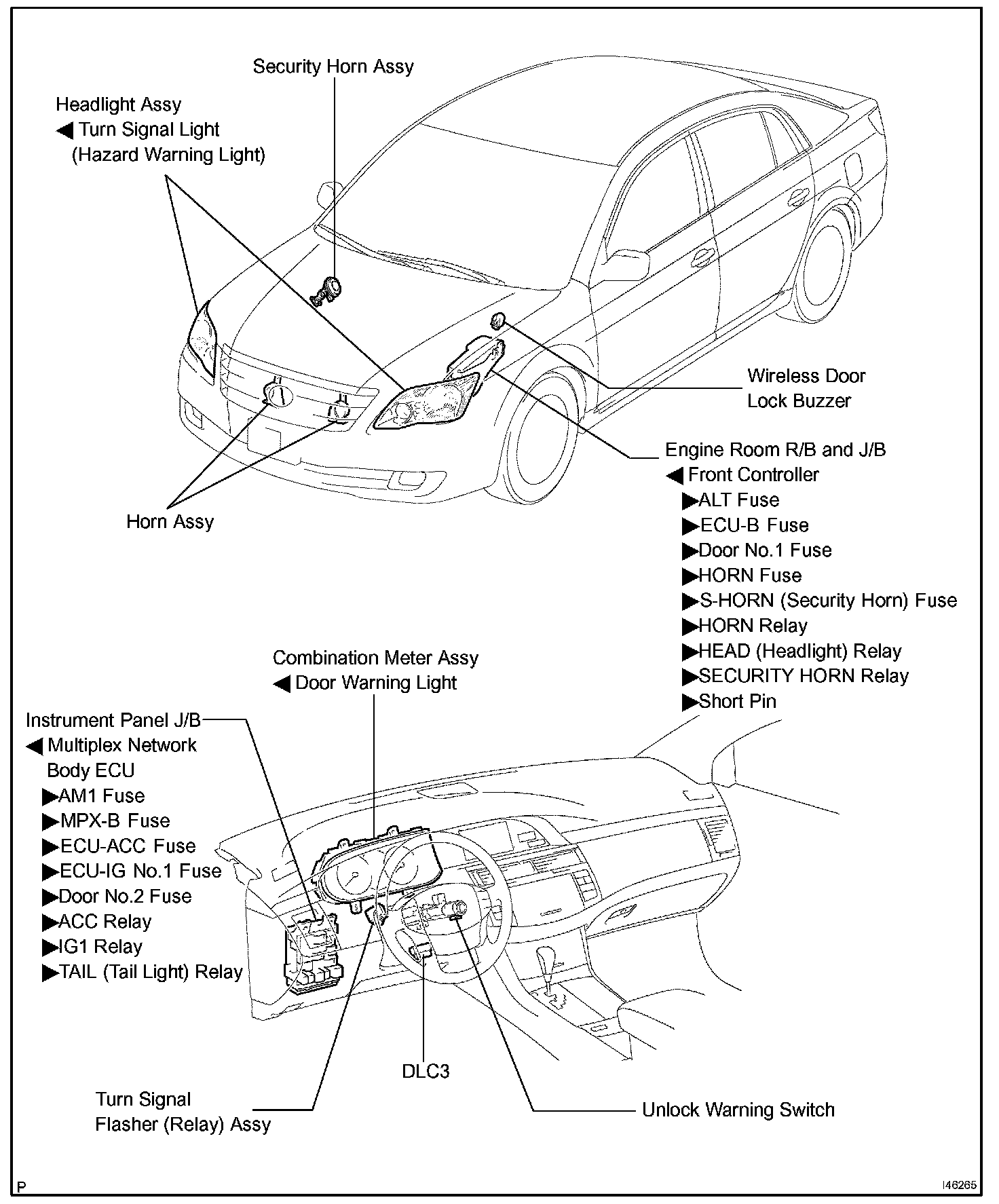

Wireless Door Lock Control System:
