Relay Box: Locations

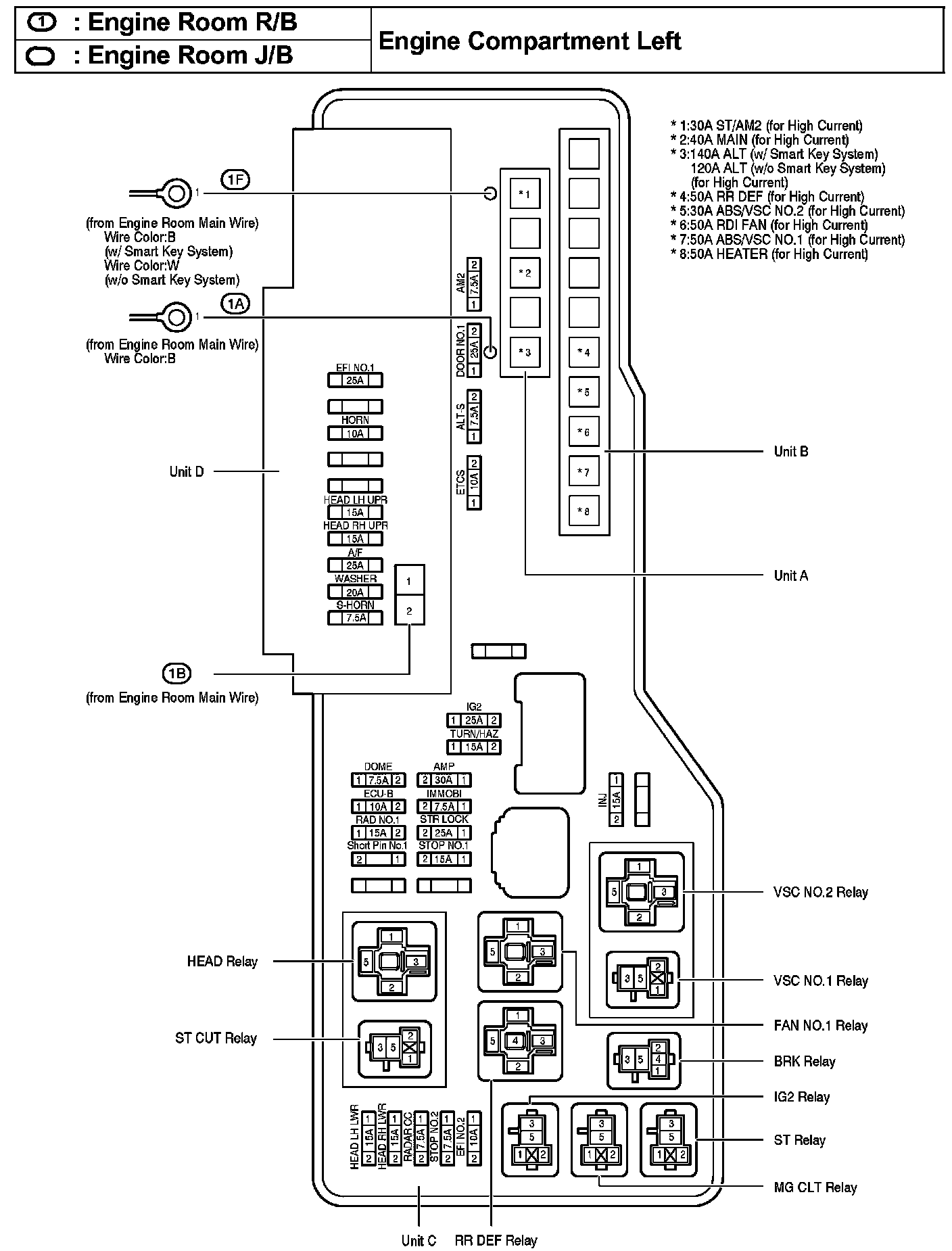

Engine Room R/B,J/B - Engine Compartment Left:

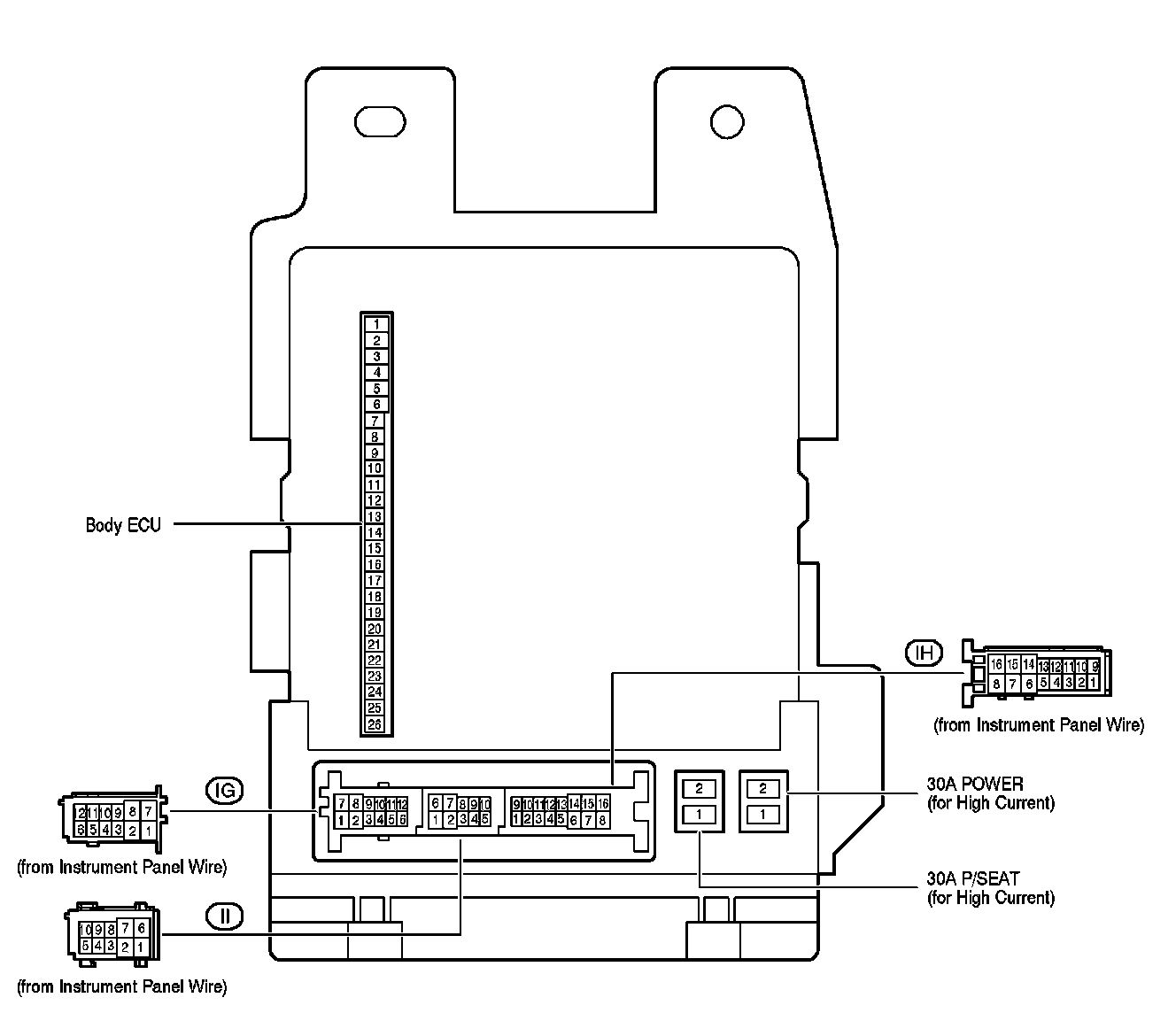

Instrument Panel J/B - Lower Finish Panel:

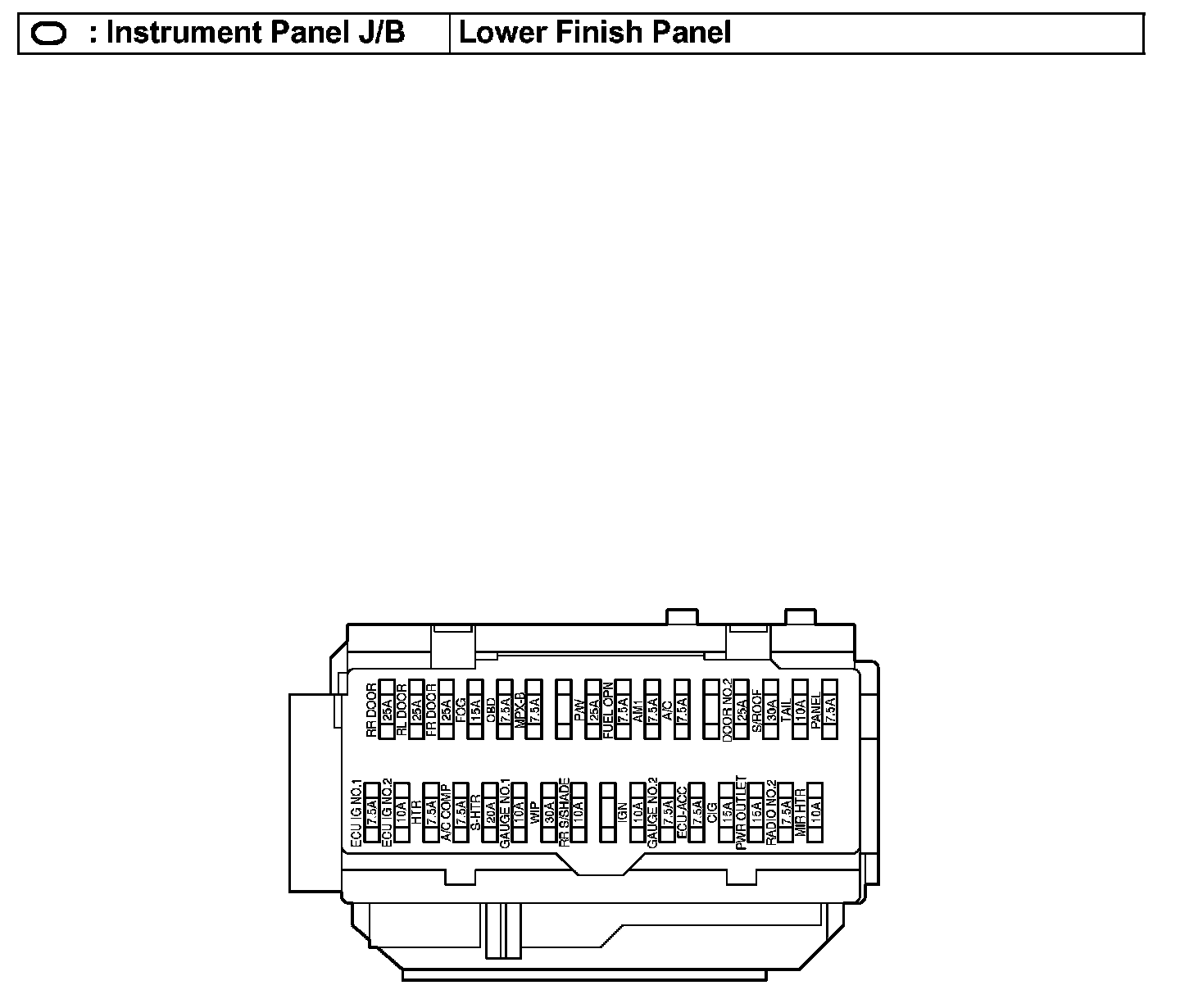

Instrument Panel J/B - Lower Finish Panel:

Instrument Panel J/B - Lower Finish Panel:

Engine Compartment:

Instrument Panel:

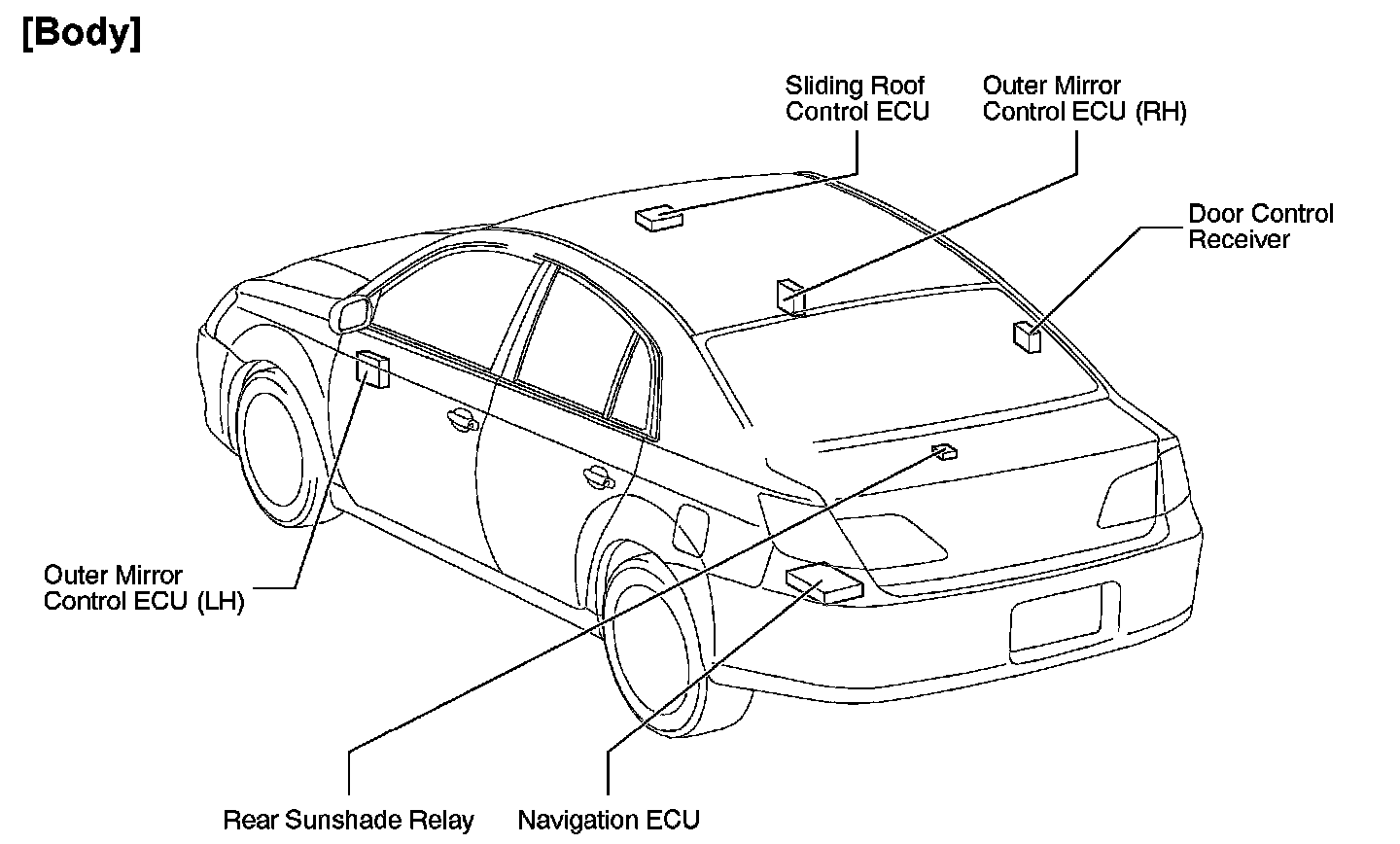

Body:
