Audio/Interior - Audio Door Difficult to Operate

BODY
BO11-05

Title:
AUDIO DOOR
OPERATION IMPROVEMENT

Models:
'05 Avalon

August 30, 2005

Introduction

Some customers may indicate that the audio door is either difficult to open (sticks) or is difficult to close and latch properly. As a result, the audio door sub-assembly has been modified to improve its operating characteristics.

NOTE:
A new audio door installation procedure has been developed to assure the proper installation of the audio door into the instrument panel.

Applicable Vehicles

^ 2005 model year Avalon vehicles produced BEFORE the Production Change Effective VIN shown below.





Production Change Information

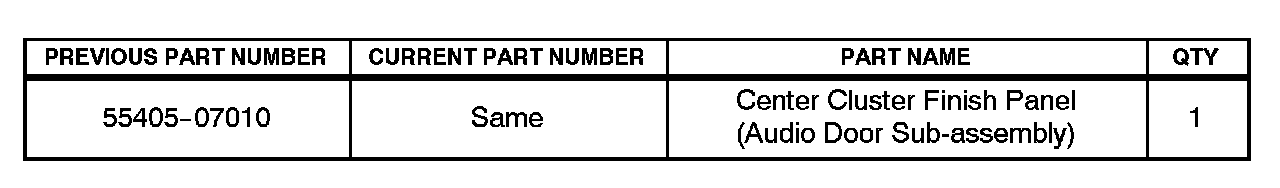

Parts Information

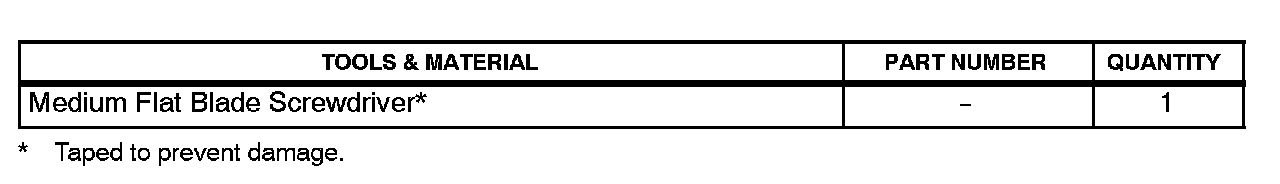

Required Tools & Material

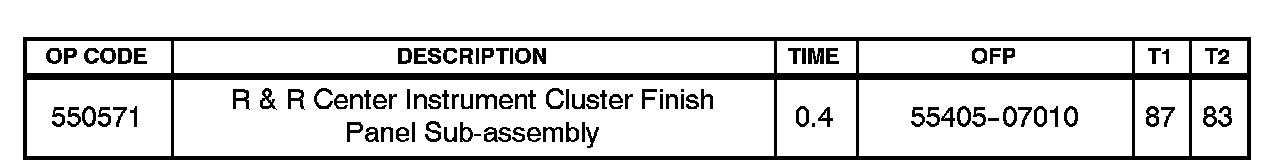

Warranty Information

Applicable Warranty*:
This repair is covered under the Toyota Comprehensive Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.

Repair Procedure

1. Disconnect the negative (-) battery terminal.

2. Remove the audio door sub-assembly.

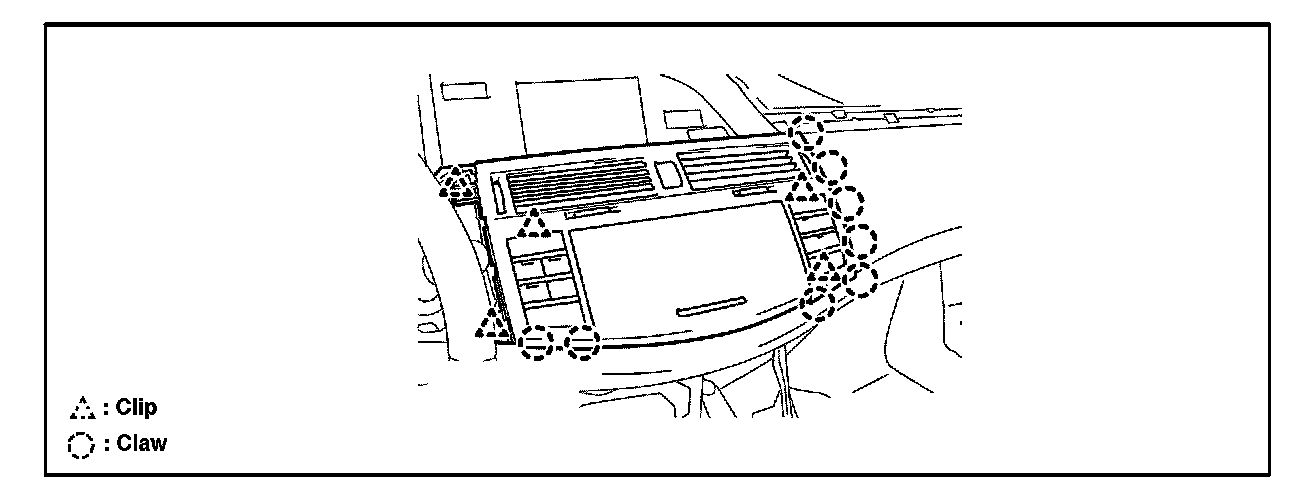

A. Release the 8 claws and 5 attaching clips securing the audio door sub-assembly to the instrument panel (IP).

B. Disconnect the wire harness connector.

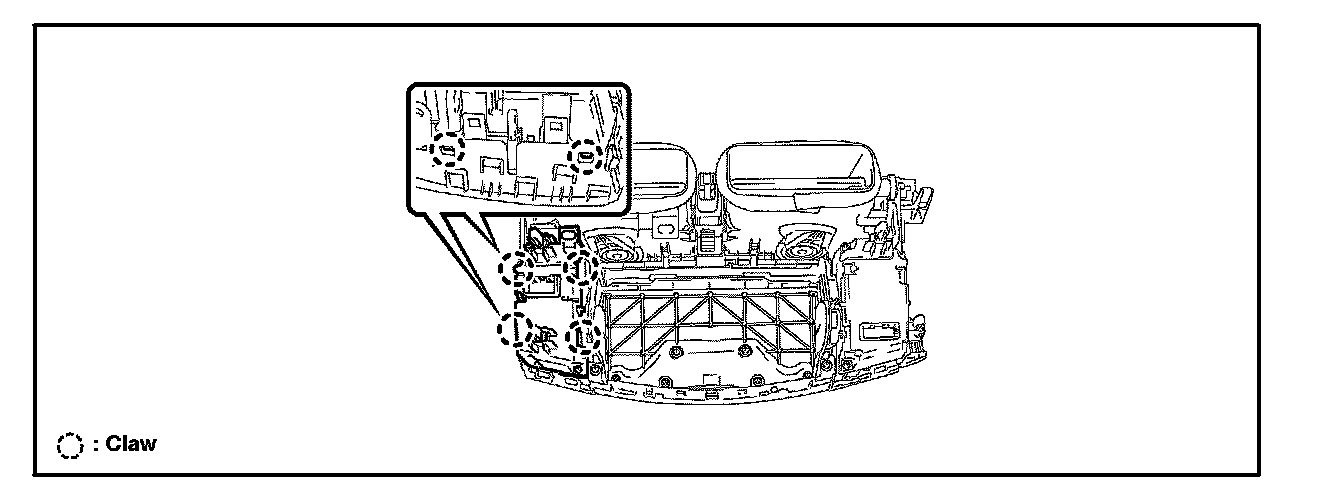

3. Remove the air conditioning control assembly and make available for reinstallation on the audio door sub-assembly.

4. Reinstall the air conditioning control assembly on the NEW audio door sub-assembly.





5. Reinstall the audio door sub-assembly into the instrument panel.

NOTE:

^ The audio door MUST be in the "open" position during reinstallation; otherwise, damage may occur to the door mechanism.

^ Both side A/C vents MUST be in the "closed" position; otherwise, damage may occur to the door mechanism.

6. Reconnect the negative (-) battery terminal.

7. Re-initialize all systems. Refer to TSB No. PD008-05, "Power System Initialization During PDS."

8. Confirm proper operation of the audio door and A/C functions and that all systems are re-initialized in step 7.
