Canada - Body - Automatic Door Lock Functions

Bulletin
TSB2204

Issue Date
2004-03-04

Market
Canada

Title
AUTOMATIC DOOR LOCK/UNLOCK FUNCTIONS

Component
GENERAL INFORMATION

Models
'05 Avalon

2005 model year Avalon vehicles equipped with automatic transmission and power door locks feature Automatic Door Locking (ADL) and Automatic Door Unlocking (ADU) functions. The door locks can be set to lock and unlock linked with the shift position. Details on the automatic door lock and unlock functions can be found in the Owner's Manual.

To standardize the ADL and ADU functions across all model lines, the default settings from the factory should be confirmed during the Pre-Delivery Service (PDS). The factory default setting automatically locks all doors when the shift lever is moved out of the "P" position.

APPLICABLE VEHICLES:
- 2005 model year Avalon vehicles.

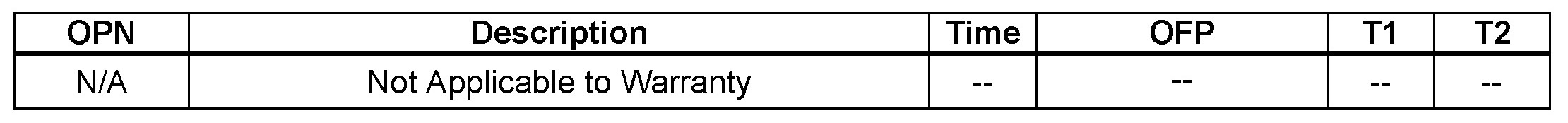

WARRANTY INFORMATION:

AUTOMATIC DOOR LOCK PROCEDURE:

Perform the following procedure to initialize the ADL function to Mode 3.
1. Set the parking brake.
2. Move the shift lever into the "P" position and close all doors.






3. Turn the ignition switch to the "ON" position.
4. Turn the ignition switch to the "ON" position.
5. Within 10 seconds after the ignition switch is turned to the "ON" position, push and hold the front side (lock position) of the driver's side power door lock switch for 5 seconds and then release.

The doors will then lock and then unlock to indicate that the function is set.

AUTOMATIC DOOR UNLOCK PROCEDURE:

Perform the following procedure to set the ADU automatic door unlocking function.
1. Set the parking brake.
2. Move shift lever into the "P" position and close all doors.






3. Turn ignition switch to the "ON" position.
4. Within 10 seconds after the ignition switch is turned to the "ON" position, push and hold the rear side (unlock position) of the driver's side power door lock switch for 5 seconds and then release.

The doors will then lock and then unlock to indicate that the function is set.
