Canada - Body - Power Window Initialization Procedure

Bulletin
TSB2173R

Issue Date
2005-01-07

Market
Canada

Title
INITIALIZATION OF POWER WINDOW

Component
GENERAL INFORMATION

Models
'05 Avalon

TSB REVISION NOTICE:
- May 19, 2005: The Initialization Procedure has been separated into two procedures: Driver's Door Power Window Switch and Passenger's Door Power Window Switch.
Previous versions of this TSB should be discarded.

As a result of the removal of the Short Pin, the "one-touch open and close" and "jam protection" functions of the driver's door power window and front passenger door power window, will be inoperative due to loss of the driver's door Power Window position memory stored in the microcomputer.

Therefore, please initialize the each door's power window and front passenger door power window after installing the Short Pin in its original location during Pre-Delivery Service (PDS) at the dealership.

NOTE:
Anytime the battery terminal has been disconnected, please initialize the driver's door power window and front passenger's door power window after reconnecting the battery terminal.

APPLICABLE VEHICLES:
- 2005 model year Avalon vehicles.

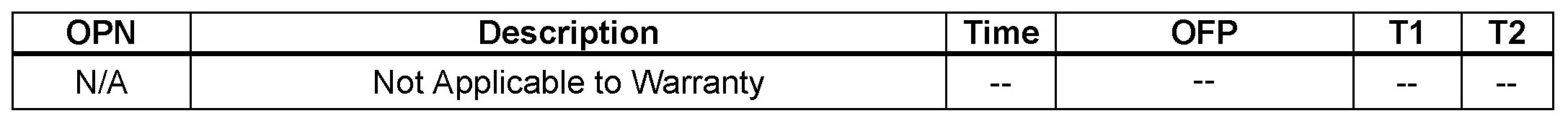

WARRANTY INFORMATION:

INITIALIZATION PROCEDURE:

Driver's Door Power Window Switch
With ignition switch in the "ON" position, do the following:






NOTE:
At this time the power window switch for the driver's door window should be blinking.

1. Push down and hold the driver's door power window switch to completely open the window.






2. Pull and hold up the driver's door power window switch until the window closes. Continue holding the switch for approximately one second until the switch changes from blinking to a constant illumination.
3. Check for proper operation of the "one-touch open and close" function by fully pushing the switch "DOWN" once and fully pulling the switch "UP" once.

NOTE:
Jam protection function is enabled through the above initialization procedure.

Passenger's Door Power Window Switch

NOTE:
At this time the power window switch for the passenger's door window should be blinking.






1. Push down and hold the passenger's door power window switch to completely open the window.
2. Pull and hold up the passenger's door power window switch until the window closes. Continue holding the switch for approximately one second until the switch changes from blinking to a constant illumination.
3. Check for proper operation of the "one-touch open and close" function by fully pushing the switch "DOWN" once and fully pulling the switch "UP" once.

NOTE:
Jam protection function is enabled through the above initialization procedure.

Initialization is complete for the driver and passenger's door power window switches.
