Lighting - Fog Lamps are Loose

BODY
BO007-06

Title:
FOG LAMPS LOOSE

Models:
'05 - '06 Avalon

March 8, 2006

Introduction

Some 2005 - 2006 model year Avalon customers may complain that the fog lamps are loose. The fog lamp brackets and bumper hole covers have been modified to correct this condition.

Applicable Vehicles

^ 2005 - 2006 model year Avalon vehicles produced BEFORE the Production Change Effective VIN shown below.

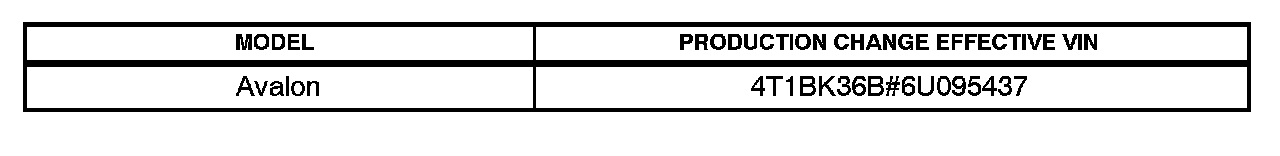

Production Change Information





Warranty Information

Applicable Warranty*:

This repair is covered under the Toyota Comprehensive Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.

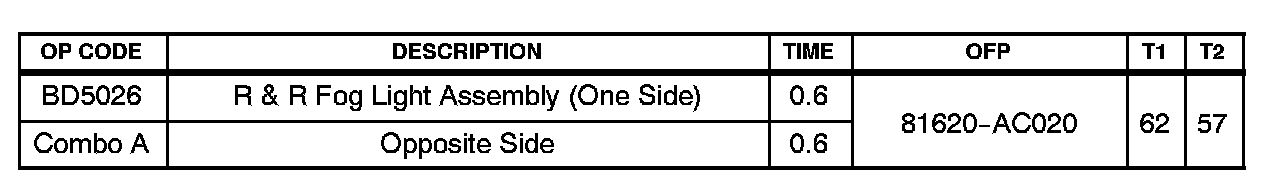

Parts Information

Repair Procedure

Replace fog lamp brackets and bumper hole covers.

Refer to the Technical Information System (TIS), 2005 or 2006 model year Avalon Repair Manual: Lighting: Fog Lamp Assy LH: Overhaul.
