Wiper and Washer Systems: Service Precautions
WIPER AND WASHER SYSTEMPRECAUTION
1. GENERAL PRECAUTION
a. While using the battery during inspection, do not bring the positive and negative tester probes too close to each other as a short circuit may occur.
2. PRECAUTION OF WASHER NOZZLE ADJUSTMENT
a. Do not clean the washer nozzle with a safety pin, etc. because the nozzle tip is made of resin and could be damaged.
b. Adjustment of the washer nozzle is not necessary because it is a spray type.
c. If the spray angle of the washer nozzle needs to be adjusted, replace the nozzle with a +1° or -1° one.
d. If the washer nozzle is removed from the hood, it cannot be reused.
e. In case the washer nozzle is clogged with wax, etc., remove it and clean the nozzle hole with a soft resin brush, etc.
3. EXPRESSIONS OF IGNITION SWITCH
The type of ignition switch used on this model differs according to the specifications of the vehicle.

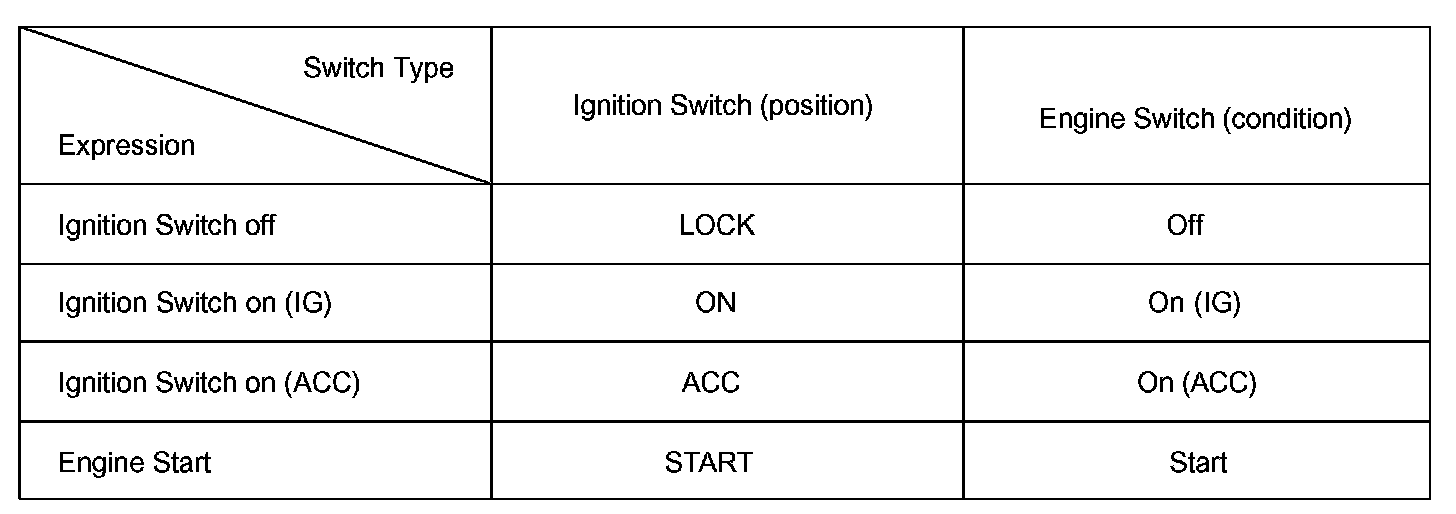

The expressions listed in the table.
