Wiper Blade: Service and Repair

FR WIPER BLADE LH

REPLACEMENT

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- Installation is in the reverse order of removal.

1. REMOVE FR WIPER ARM & BLADE ASSEMBLY LH




2. REMOVE FR WIPER BLADE LH

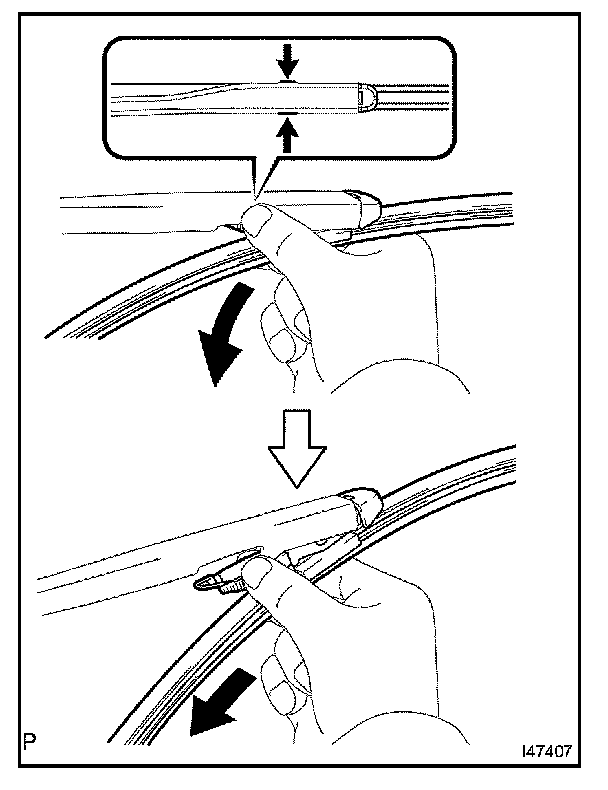

a. Remove the FR wiper blade LH as shown in the illustration.

3. INSTALL FR WIPER ARM & BLADE ASSEMBLY LH
