DTC B1615 FRONT AIR BAG SENSOR (LH) MALFUNCTION

CIRCUIT DESCRIPTION

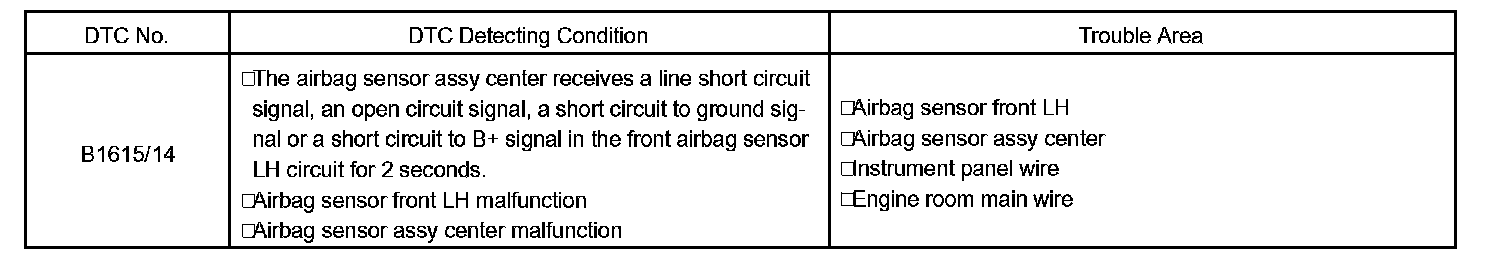

DTC Detecting Condition:

The front air bag sensor LH consists of the diagnostic circuit, the frontal deceleration sensor, etc.

If the air bag sensor assembly center receives signals from the frontal deceleration sensor, it determines whether or not the SRS should be activated.

DTC B1615/14 is recorded when a malfunction is detected in the front air bag sensor LH circuit.

Wiring Diagram:

Step 1:

Step 2 - 3:

Step 4 - 5:

Step 6 - 7:

Step 8 - 9:

Step 10 - 11:

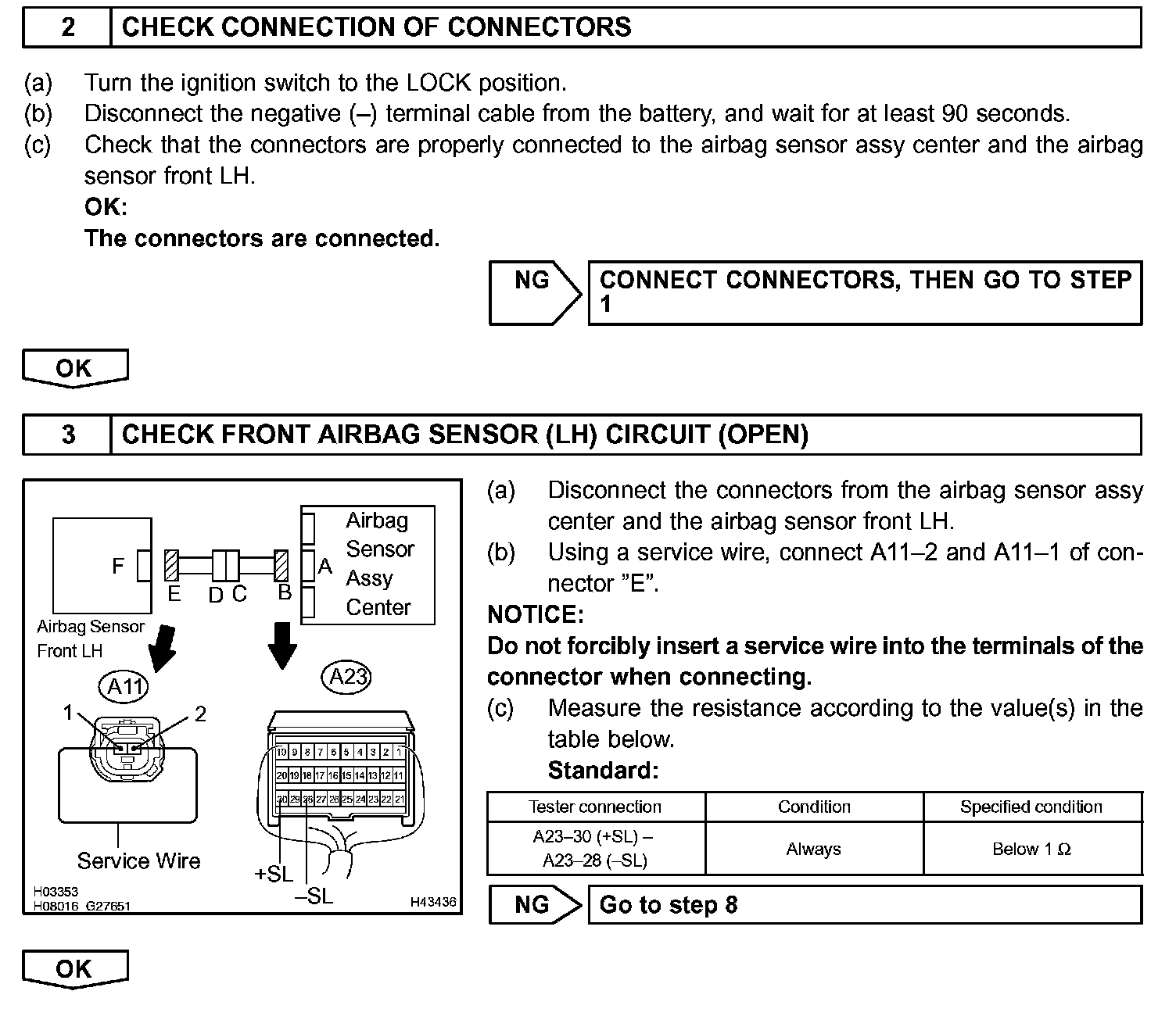

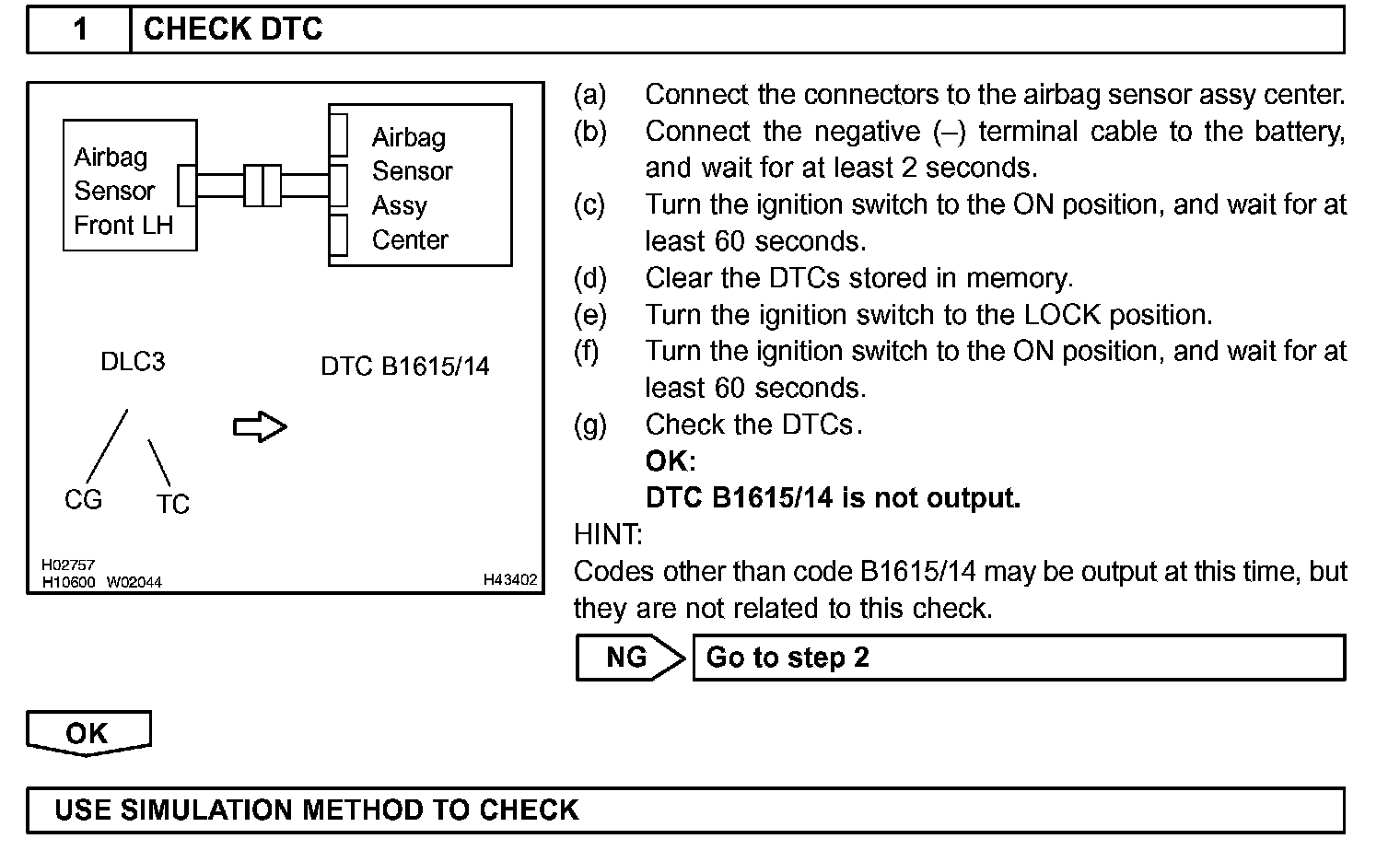

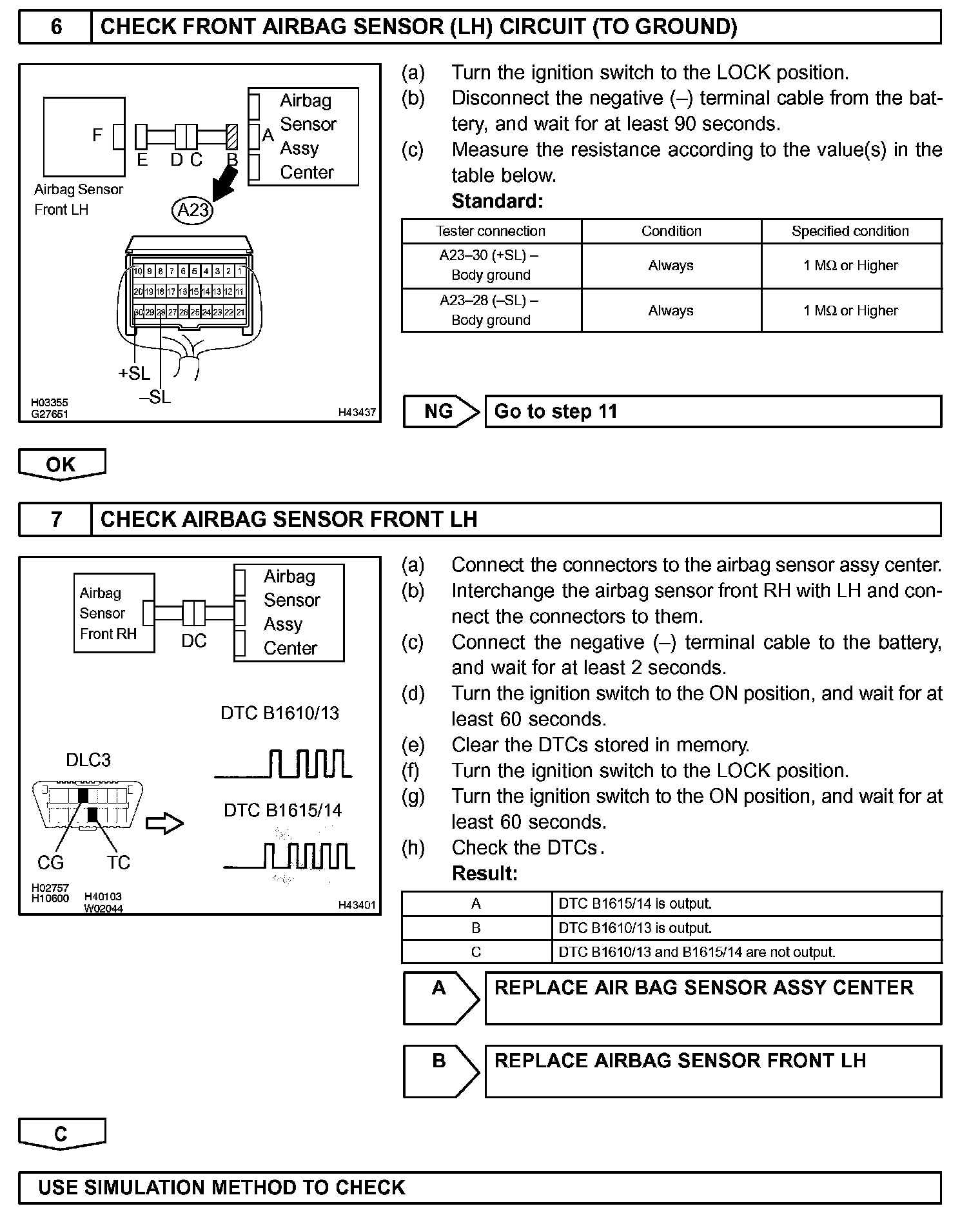

INSPECTION PROCEDURE

CAUTION: Be sure to perform the following procedures before troubleshooting to avoid unexpected air bag deployment.

a. Turn the ignition switch to the LOCK position.
b. Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
c. Disconnect the connectors from the air bag sensor assembly center.
d. Disconnect the connectors from the horn button assembly.
e. Disconnect the connectors from the front passenger air bag assembly.
f. w/ Side air bag: Disconnect the connector from the front seat air bag assembly LH.
g. w/ Side air bag: Disconnect the connector from the front seat air bag assembly RH.
h. w/ Curtain shield air bag: Disconnect the connector from the curtain shield air bag assembly LH.
i. w/ Curtain shield air bag: Disconnect the connector from the curtain shield air bag assembly RH.
j. Disconnect the connector from the front seat outer belt assembly LH.
k. Disconnect the connector from the front seat outer belt assembly RH.
