C1224

DTC C1224 NE SIGNAL CIRCUIT

CIRCUIT DESCRIPTION

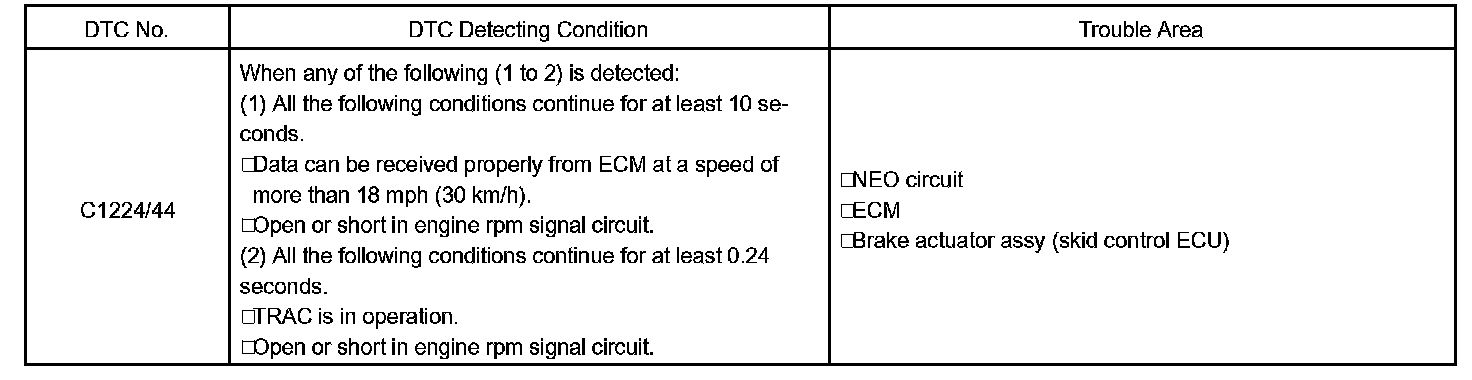

DTC Detecting Condition:

The skid control ECU receives engine revolution speed signals (NE signals) from the ECM.

Wiring Diagram:

Step 1:

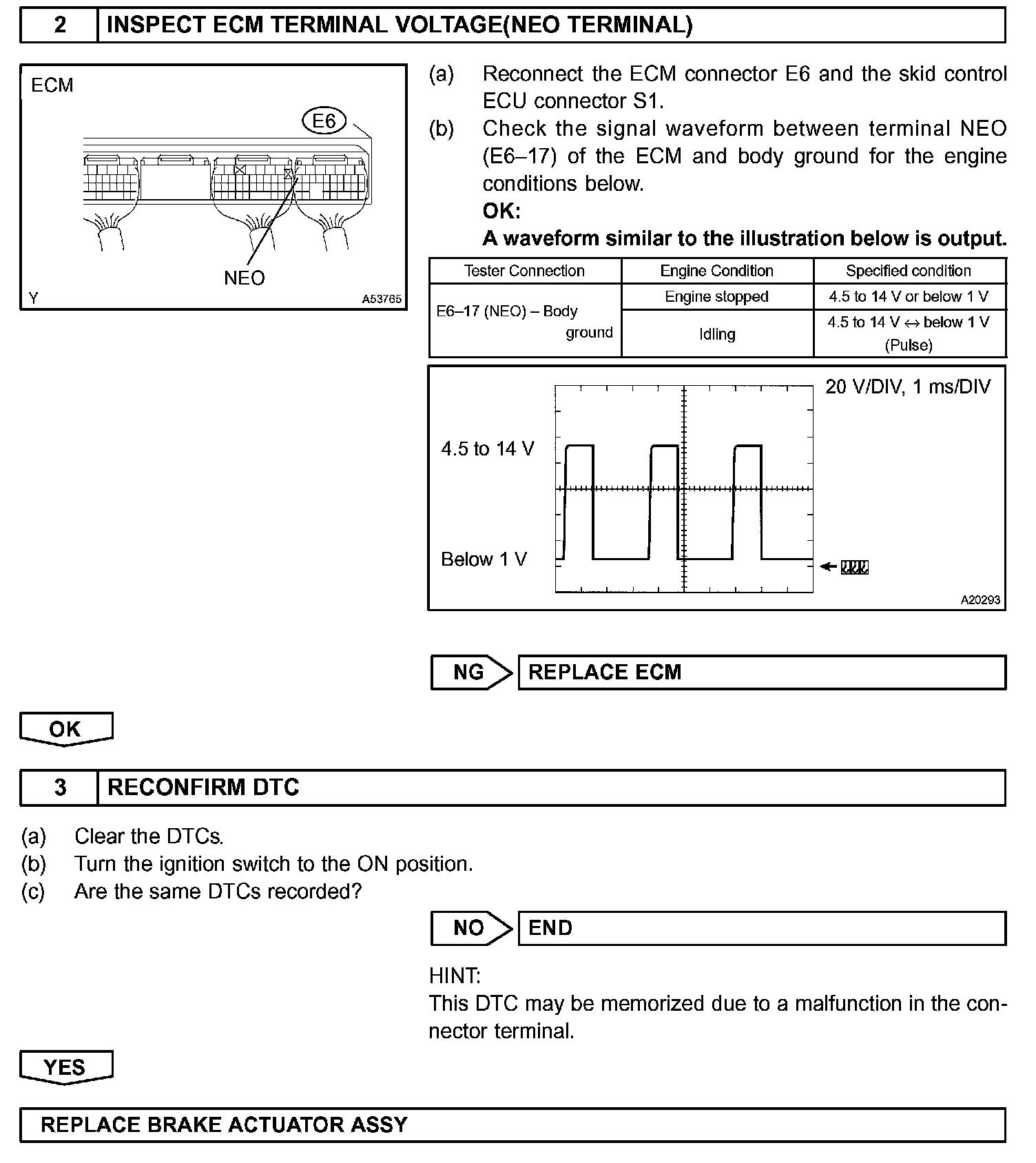

Step 2 - 3:

INSPECTION PROCEDURE

NOTE: When replacing the brake actuator assembly, perform zero point calibration.
