DTC C1225 SMC SOLENOID CIRCUIT

CIRCUIT DESCRIPTION

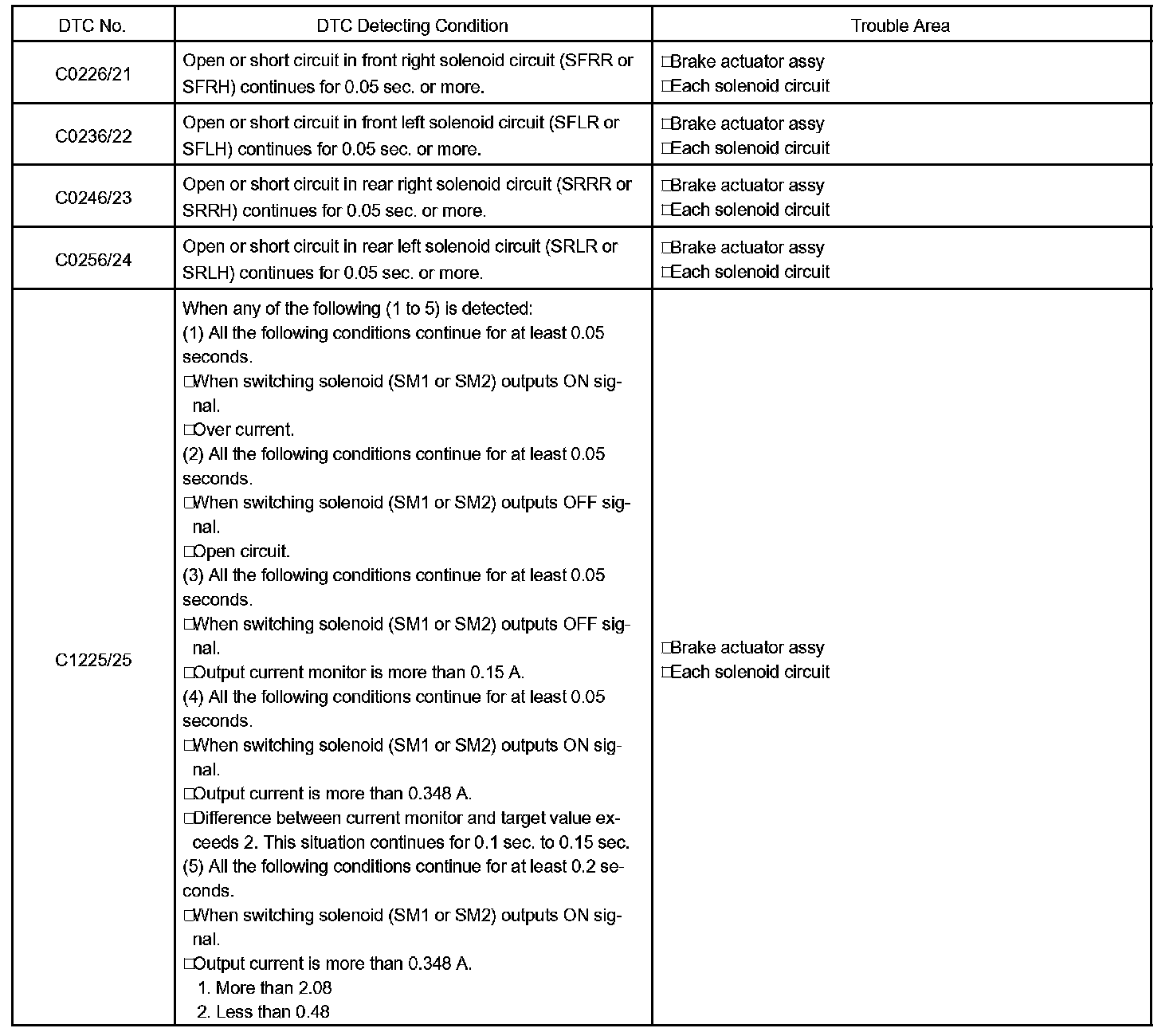

DTC Detecting Condition:

This solenoid turns on when signals are received from the ECU and controls the pressure acting on the wheel cylinders to control braking force.

Wiring Diagram:

Step 1:

INSPECTION PROCEDURE

NOTE: When replacing the brake actuator assembly, perform zero point calibration
