ABS w/ EBD & BA & TRAC & VSC System

DIAGNOSTIC TROUBLE CODE CHART

HINT: If a malfunction code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, refer to the "DTC No." in the DTC Chart.

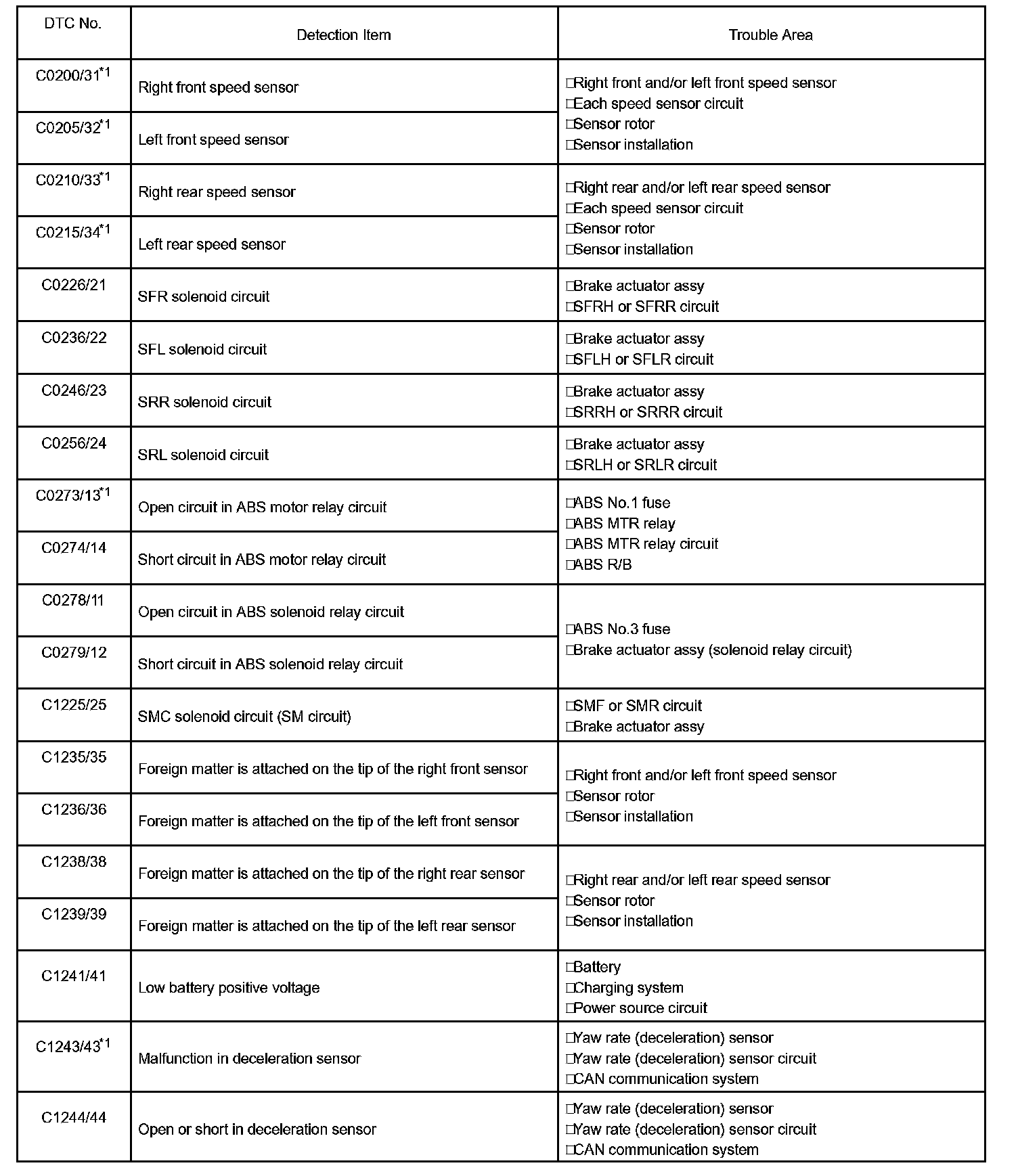

C0200/31 - C1244/44:

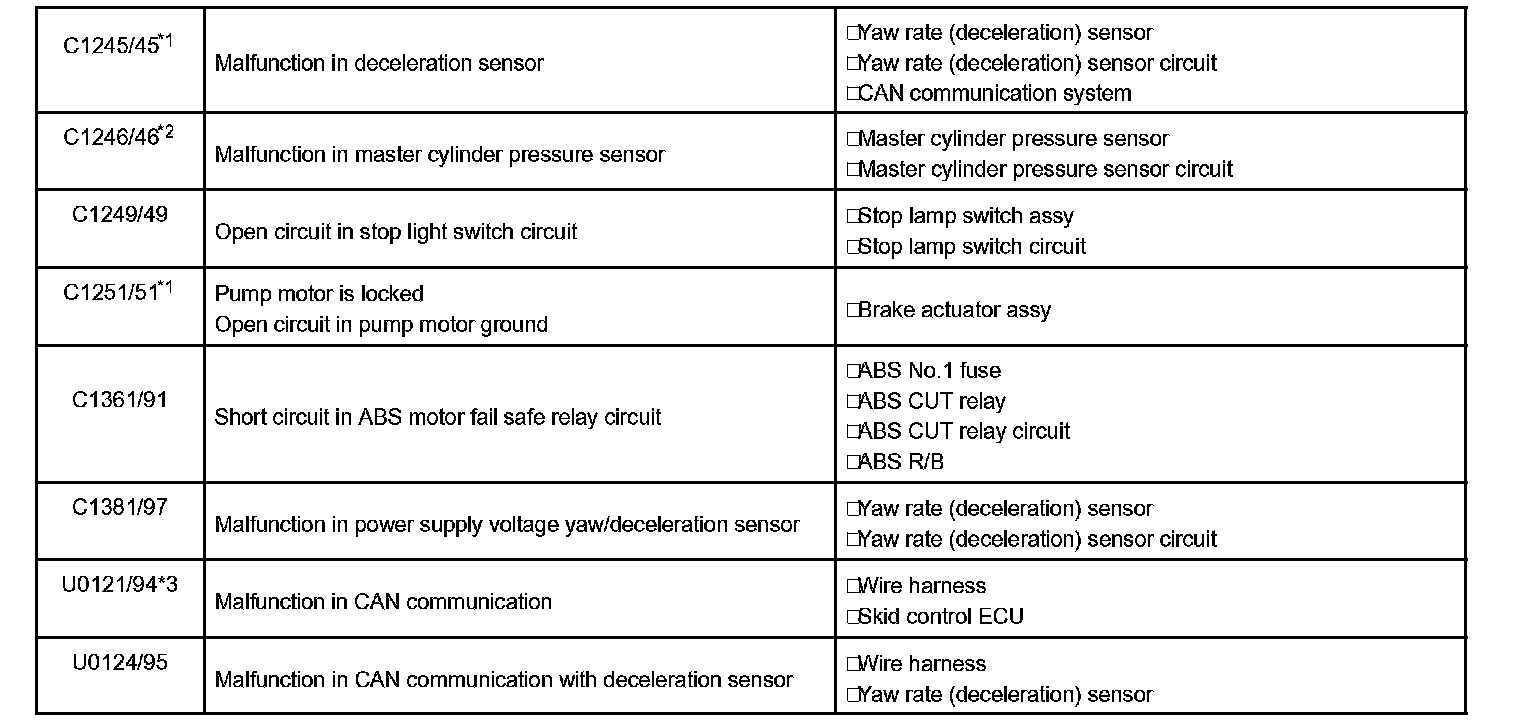

C1245/45 - U0124/95:

DTC chart of ABS:

*1, *2:
Even after the trouble areas are repaired, the ABS warning light will not go off unless the following operations are performed.

*3:
1MZ,3MZ
- *1:
1. Drive the vehicle at 12 mph (20 km/h) for 30 seconds or more and check that the ABS warning light goes off.
2. Clear the DTC.

- *2:
1. Keep the vehicle in a stationary condition for 5 seconds or more and depress the brake pedal lightly 2 or 3 times.
2. Drive the vehicle at a vehicle speed of 31 mph (50 km/h) and keep depressing the brake pedal strongly for about 3 seconds.
3. Repeat the above operation 3 times or more and check that the ABS warning light goes off.
4. Clear the DTC.

HINT: In some cases, the hand-held tester cannot be used when the ABS warning light remains on.

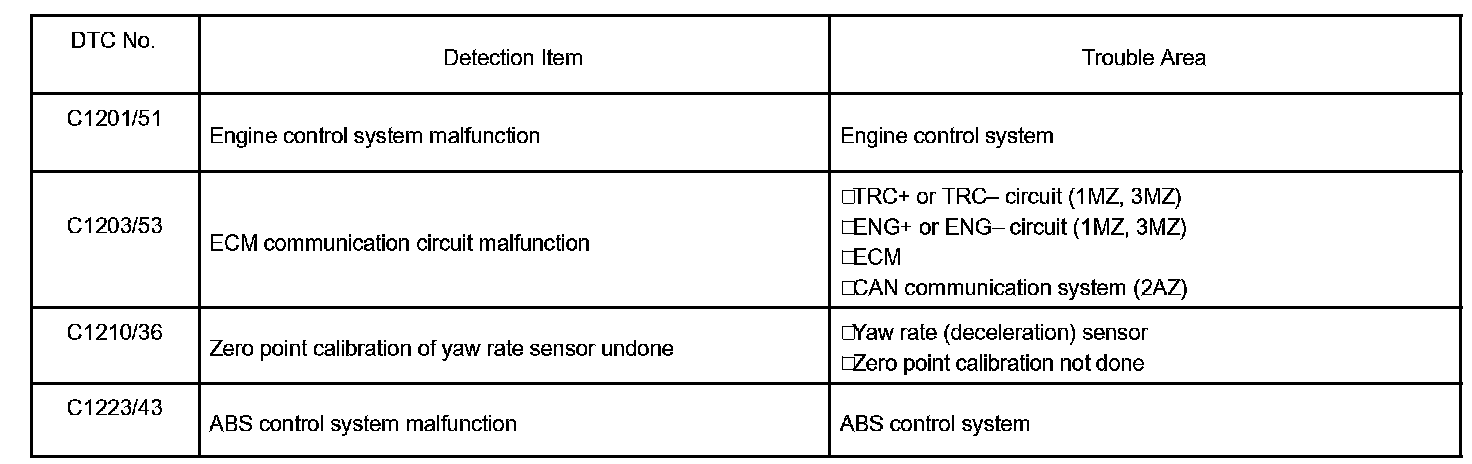

C1201/51 - C1223/43:

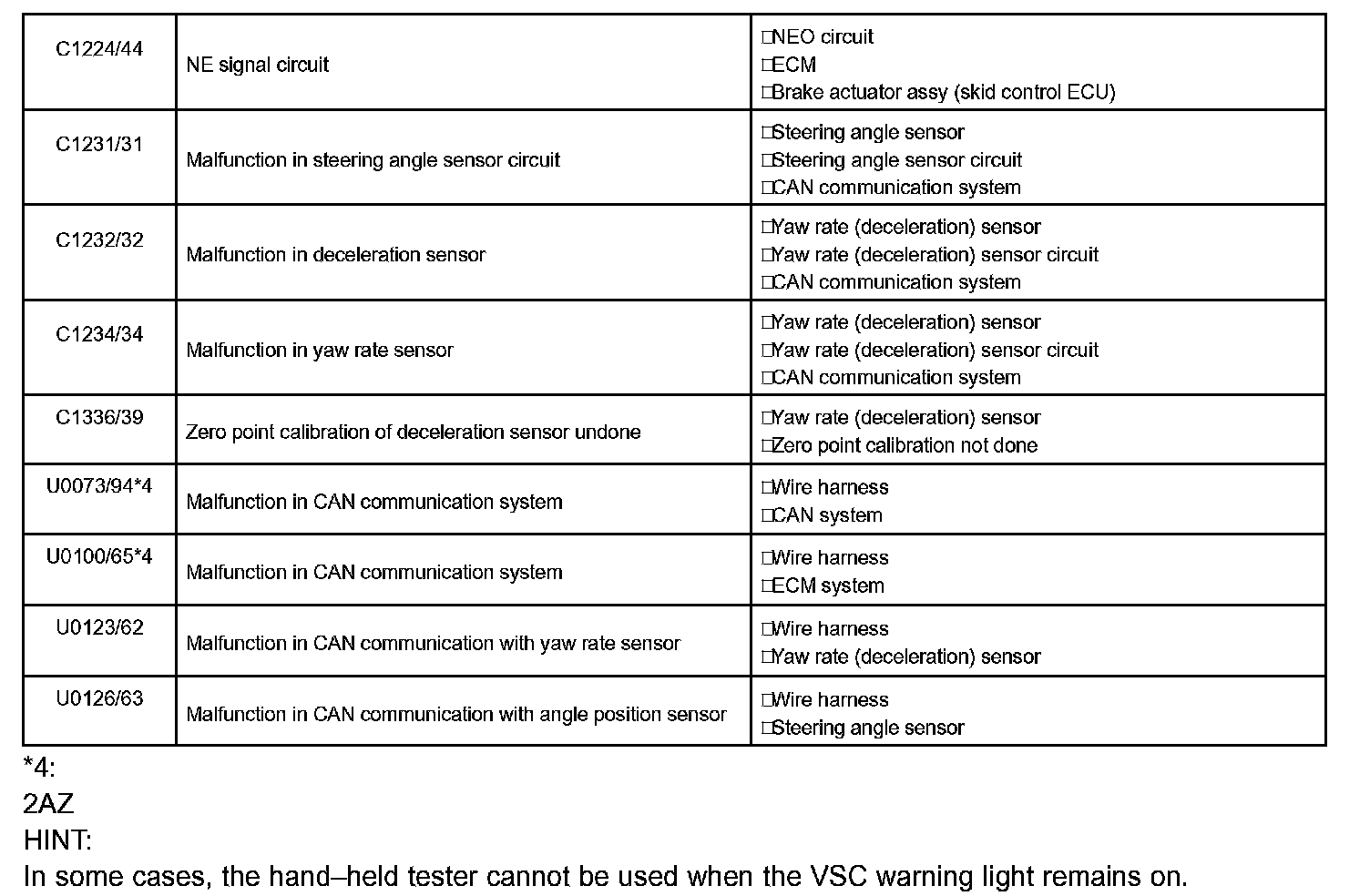

C1224/44 - U0126/63:

DTC chart of VSC:

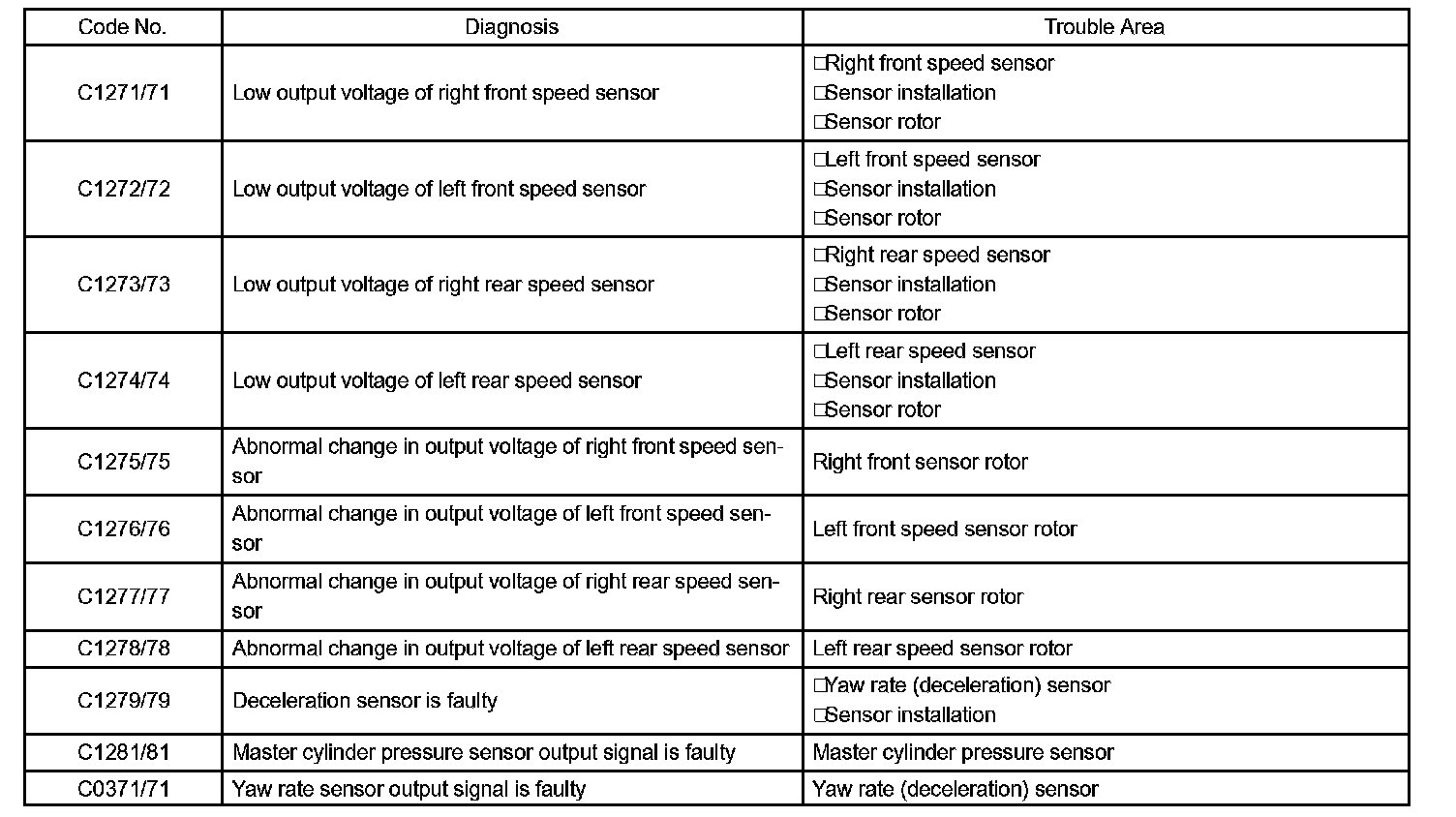

C1271/71 - C0371/71:

DTC of sensor check function:
