Radio, Stereo, and Compact Disc

DIAGNOSTIC TROUBLE CODE CHART

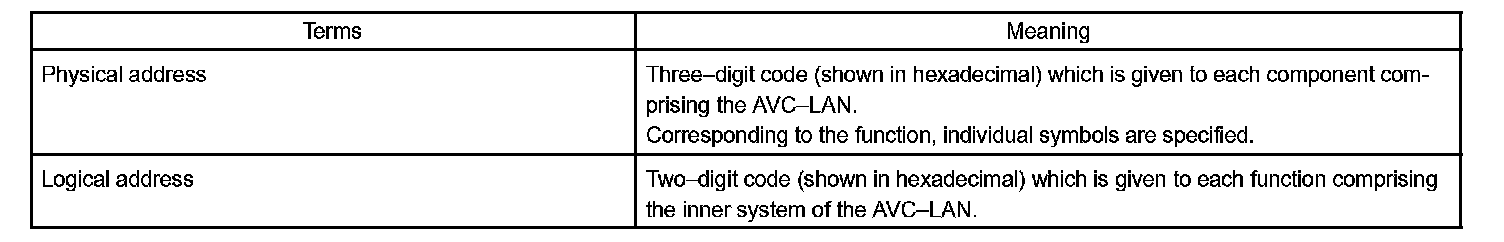

HINT: Titles for each unit are stated in the following order: physical address (parts name).

1. 190 (RADIO RECEIVER ASSEMBLY)

HINT:
- *1: Even if no failure is detected, trouble codes may be stored depending on the battery condition or voltage for starting the engine.
- *2: The code is stored 180 seconds after the power supply connector is disconnected after engine start.
- *3: The code may be stored when the engine key is turned 1 minute after engine start.
- *4: The code may be stored when the engine key is turned again after engine start.
- *5: The code is stored 210 seconds after the master component power supply connector is disconnected with the ignition switch in the ACC or ON position.







a. Logical address: 01 (Communication control)




b. Logical address: 60 (Radio unit)




c. Logical address: 61 (Cassette unit)

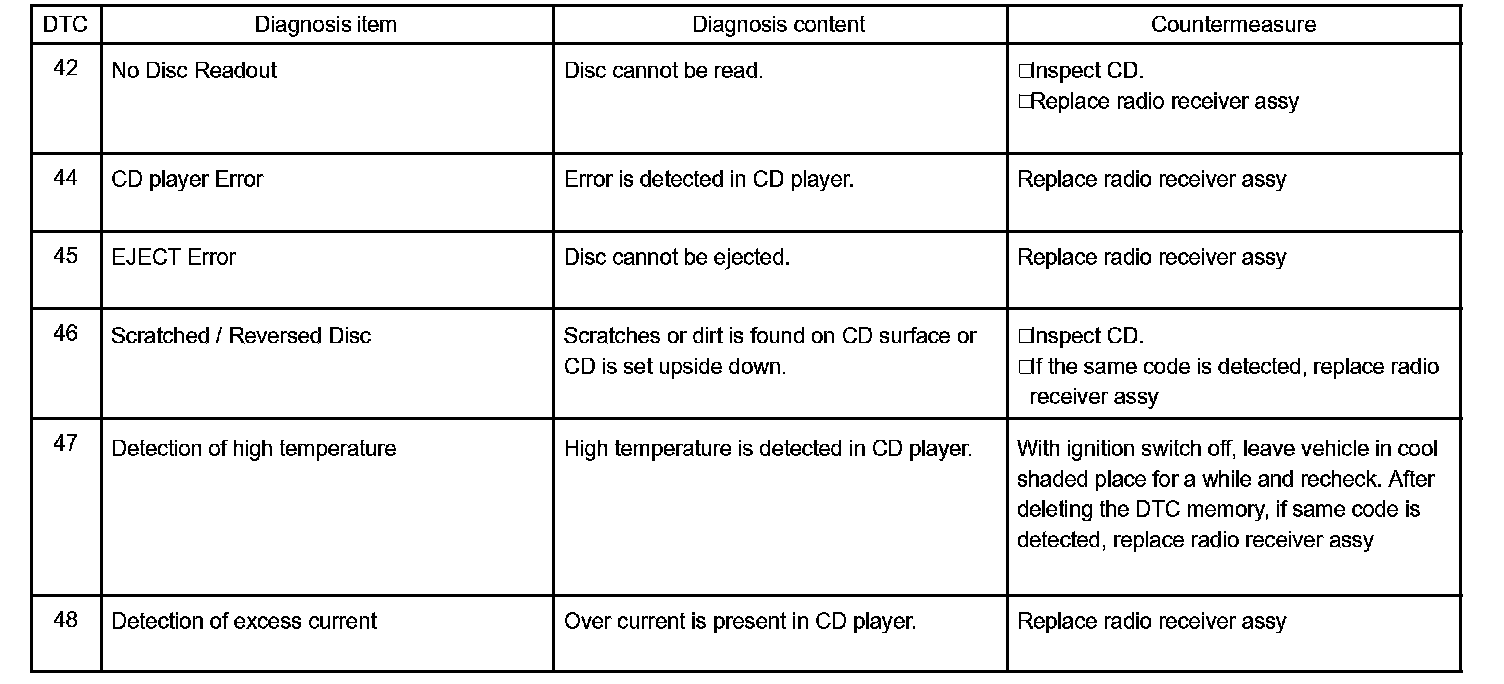

d. Logical address: 62 (CD player)

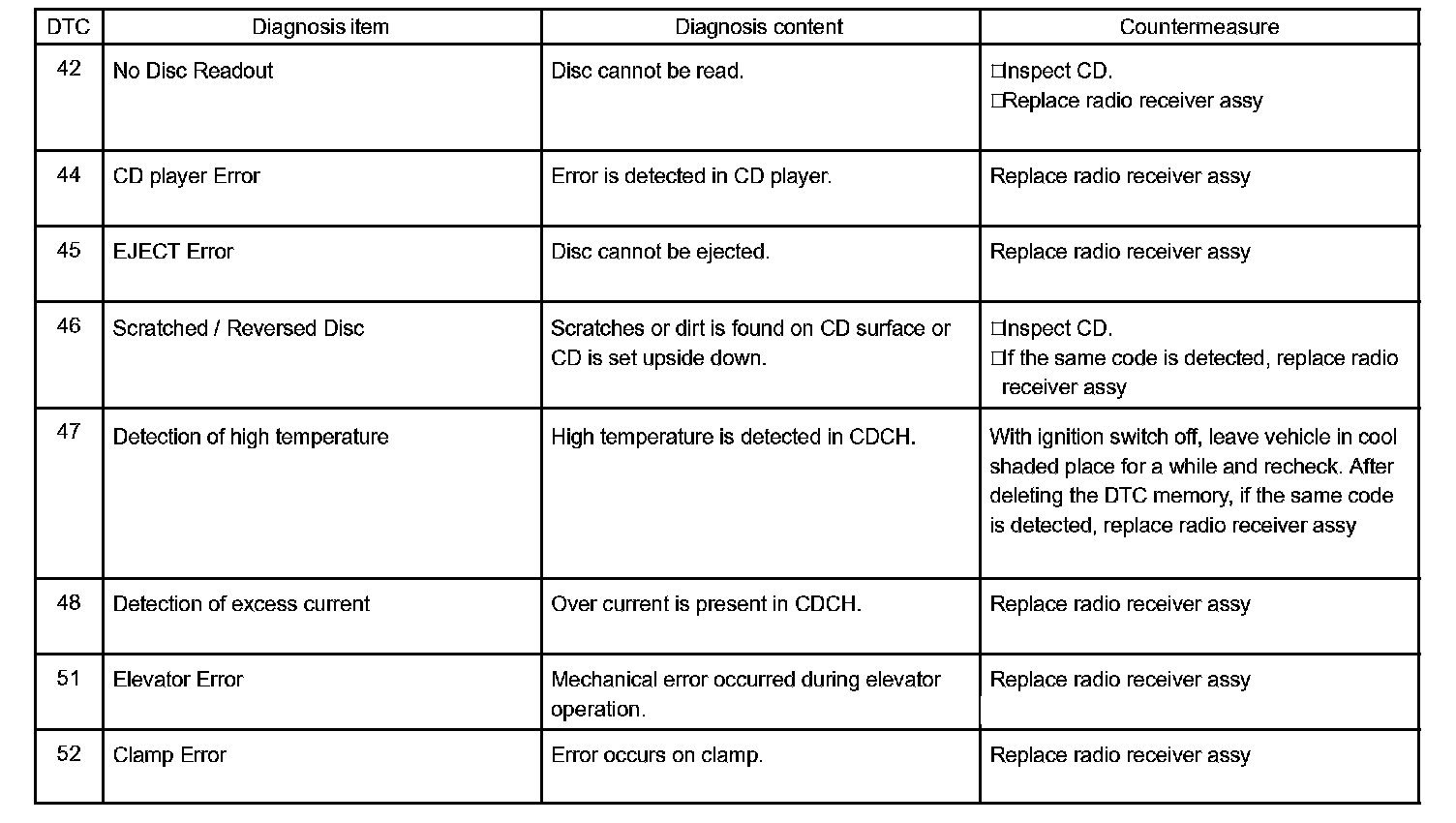

e. Logical address: 63 (In dash CD changer)
