Navigation System: Service and Repair

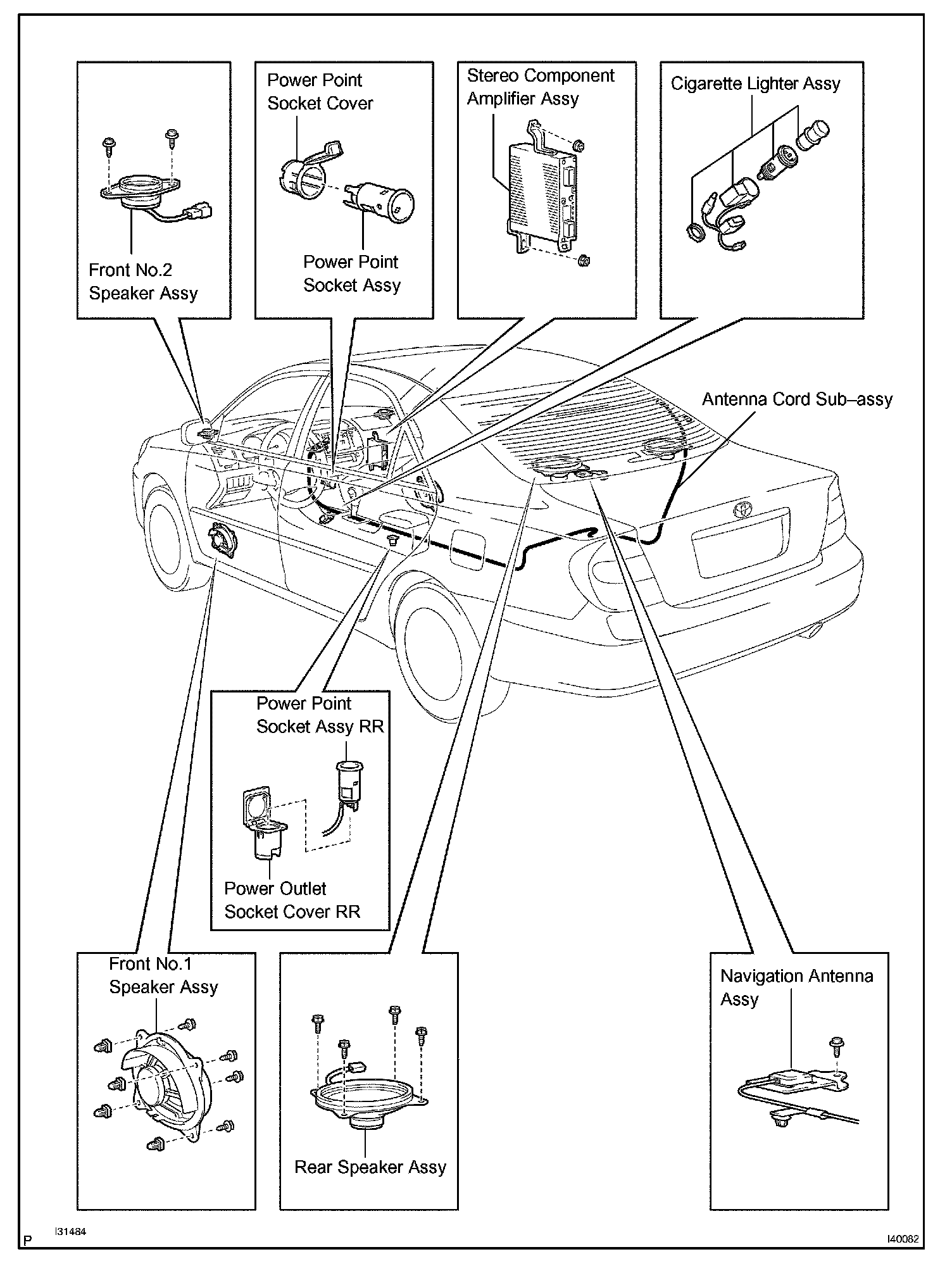

Audio & Visual System Location:

NAVIGATION RECEIVER ASSEMBLY

REPLACEMENT

1. REMOVE AIR CONDITIONER CONTROL ASSEMBLY
2. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER

3. REMOVE NAVIGATION RECEIVER ASSEMBLY
a. Insert a screwdriver at indicated point and remove the navigation receiver assembly from instrument cluster finish panel sub-assembly.

4. REMOVE RADIO BRACKET NO.1

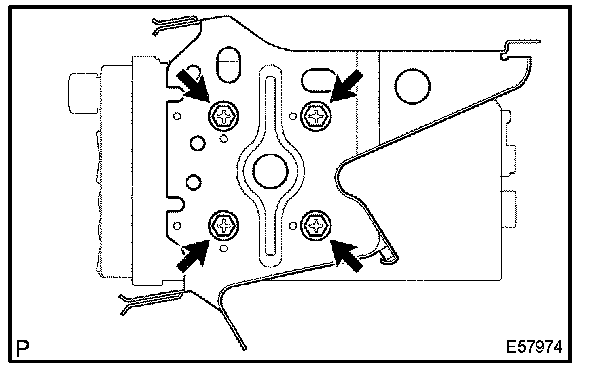

a. Remove the 4 screws and radio receiver bracket No.1.

5. REMOVE RADIO BRACKET NO.2

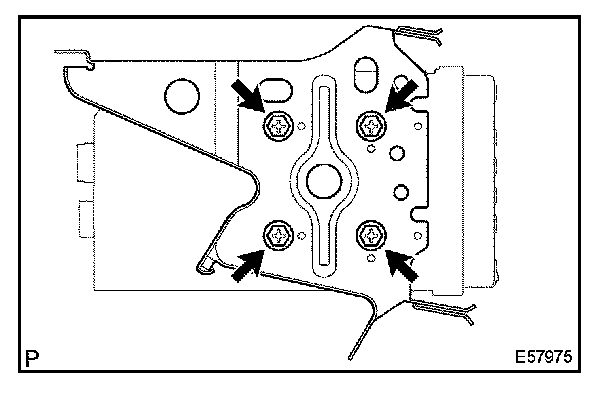

a. Remove the 4 screws and radio receiver bracket No.2.
