Antilock Brakes / Traction Control Systems: Locations

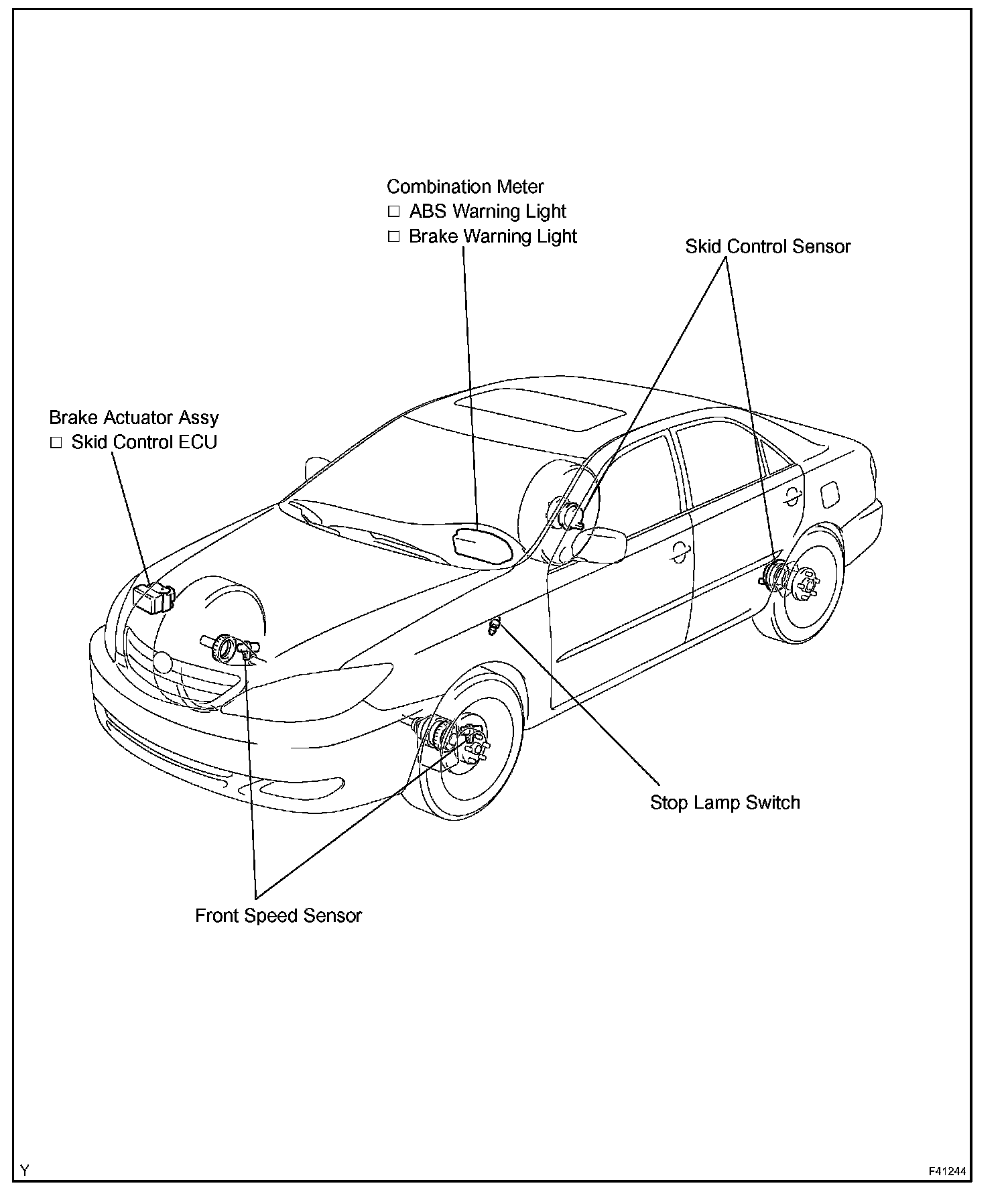

ABS With EBD System (Bosch Made):

ABS With EBD System (Denso Made):

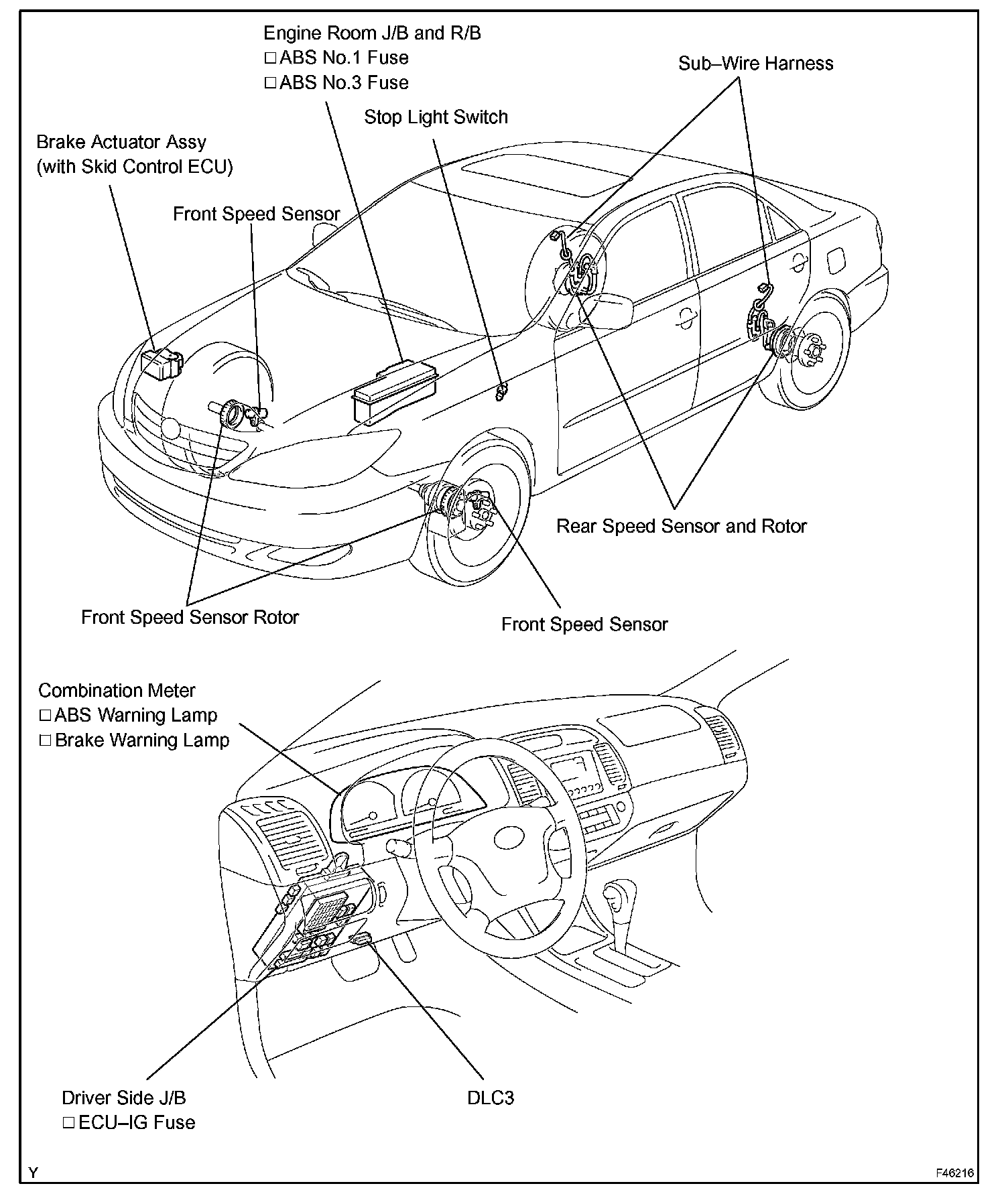

ABS With EBD & BA & TRAC & VSC System:
