Instrument Panel, Gauges and Warning Indicators

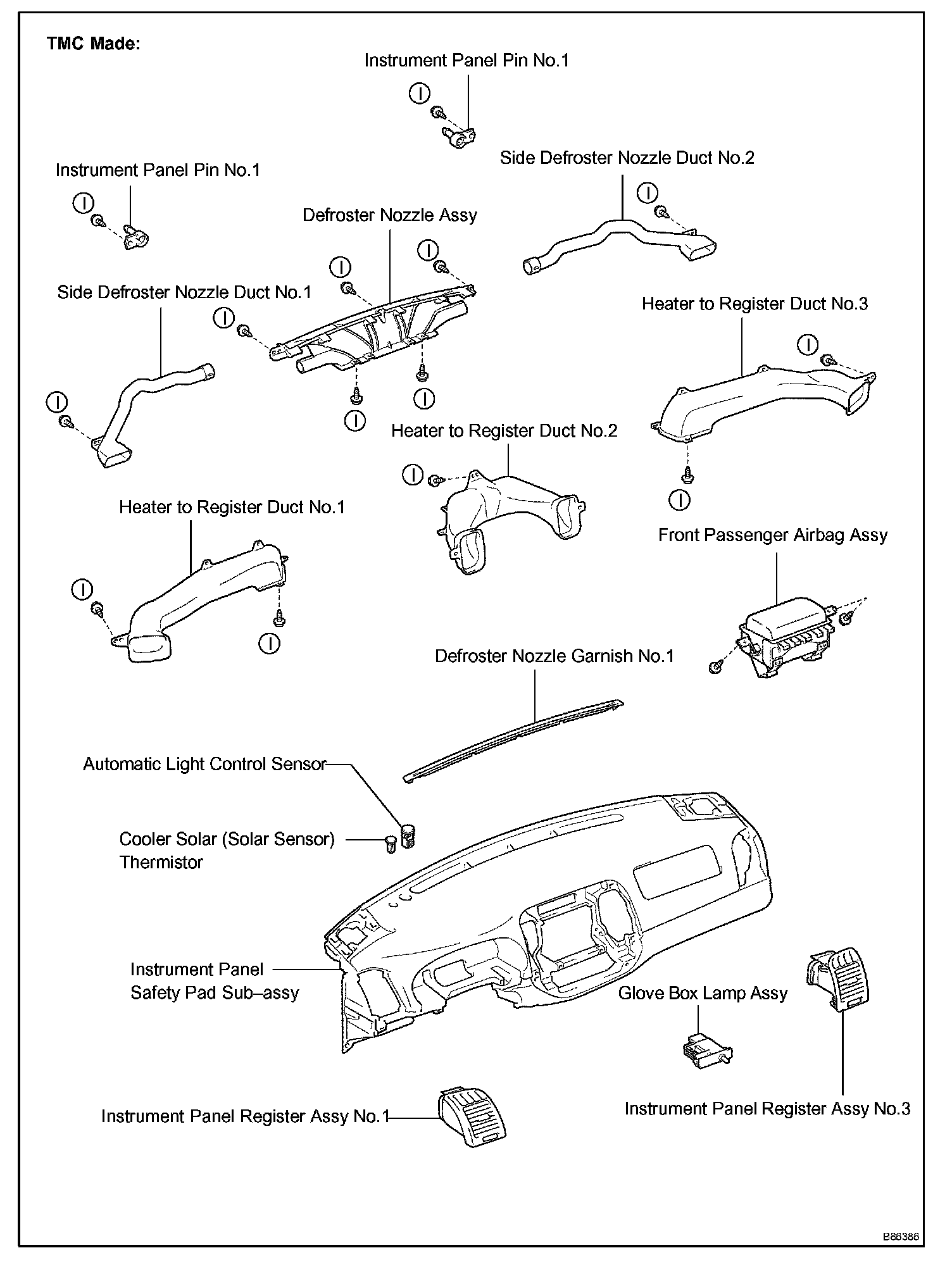

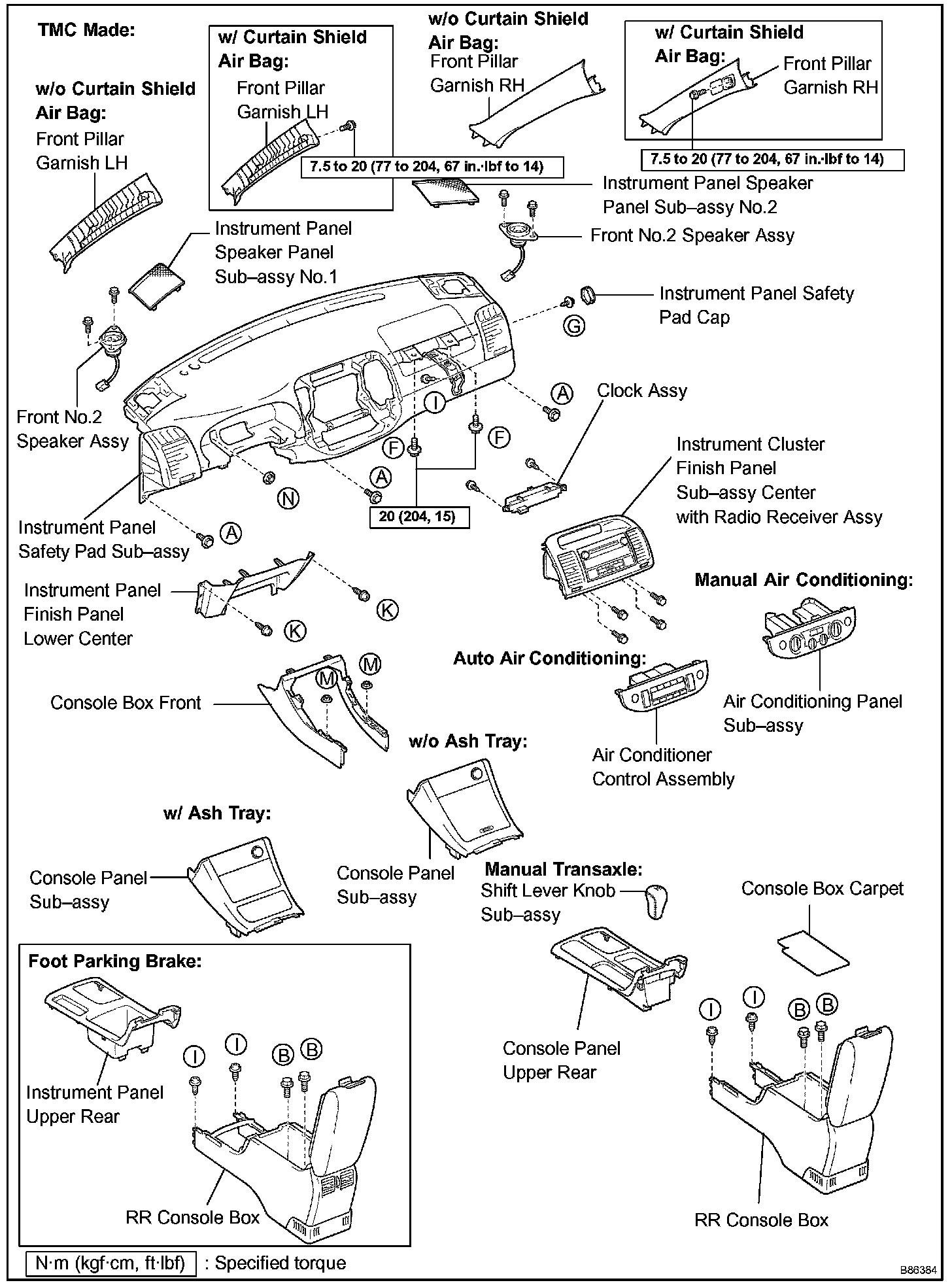

Instrument Panel/Meter (TMC Made):



Instrument Panel/Meter (TMC Made):



Instrument Panel/Meter (TMC Made):

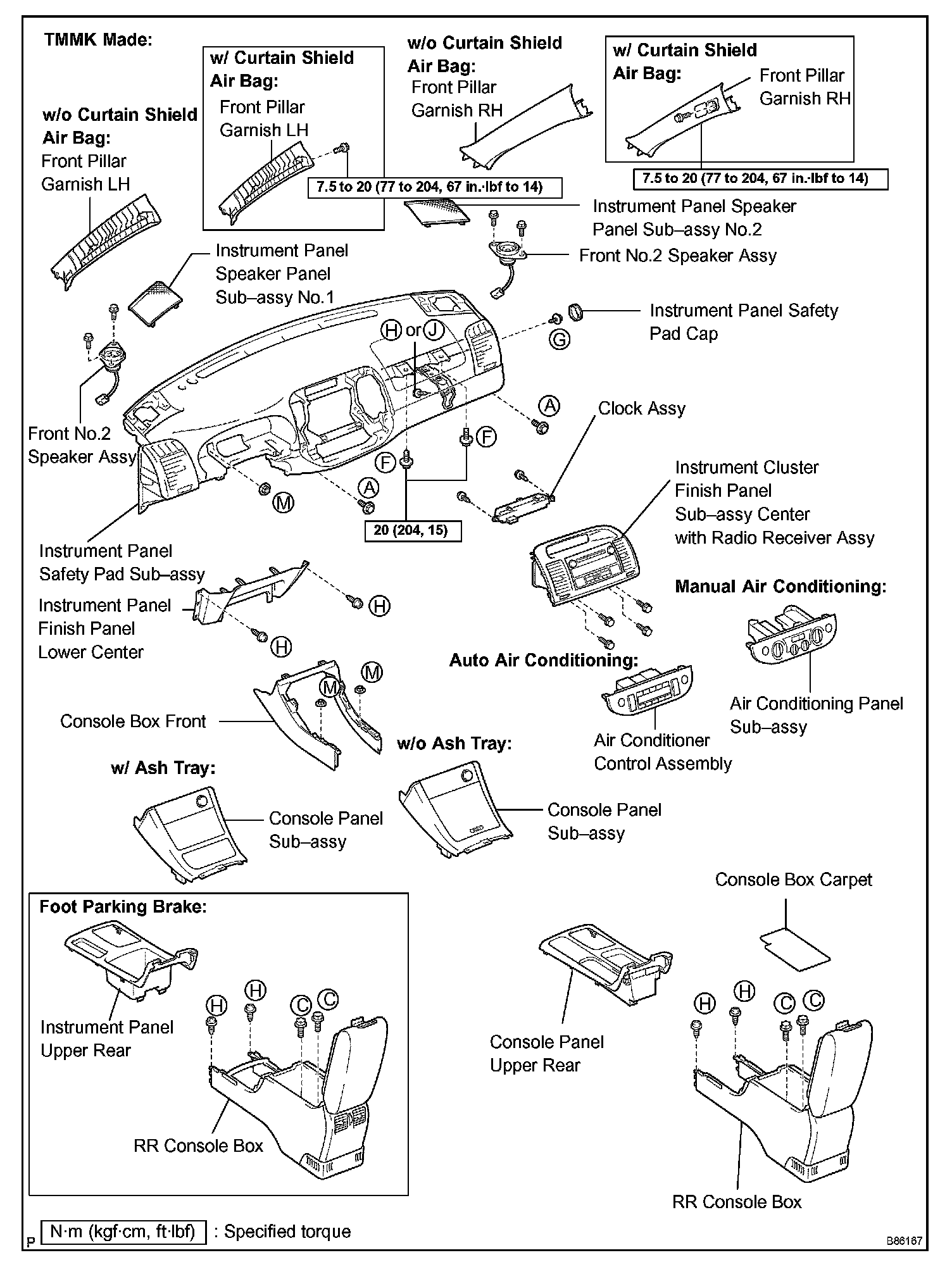

Instrument Panel/Meter (TMMK Made):



Instrument Panel/Meter (TMMK Made):



Instrument Panel/Meter (TMMK Made):
