Seats
Seats

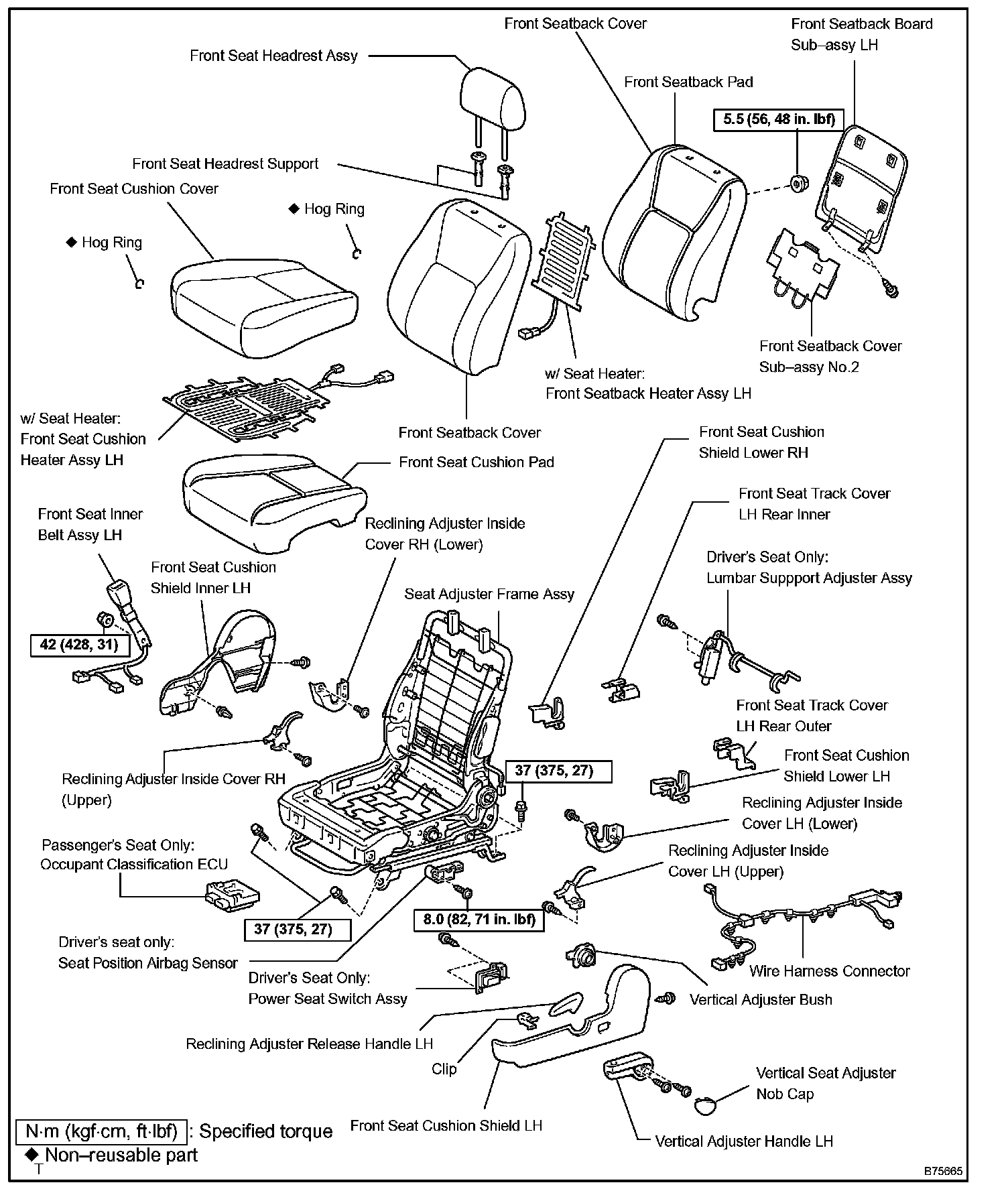

Front Seat Assembly (Power Seat Type):

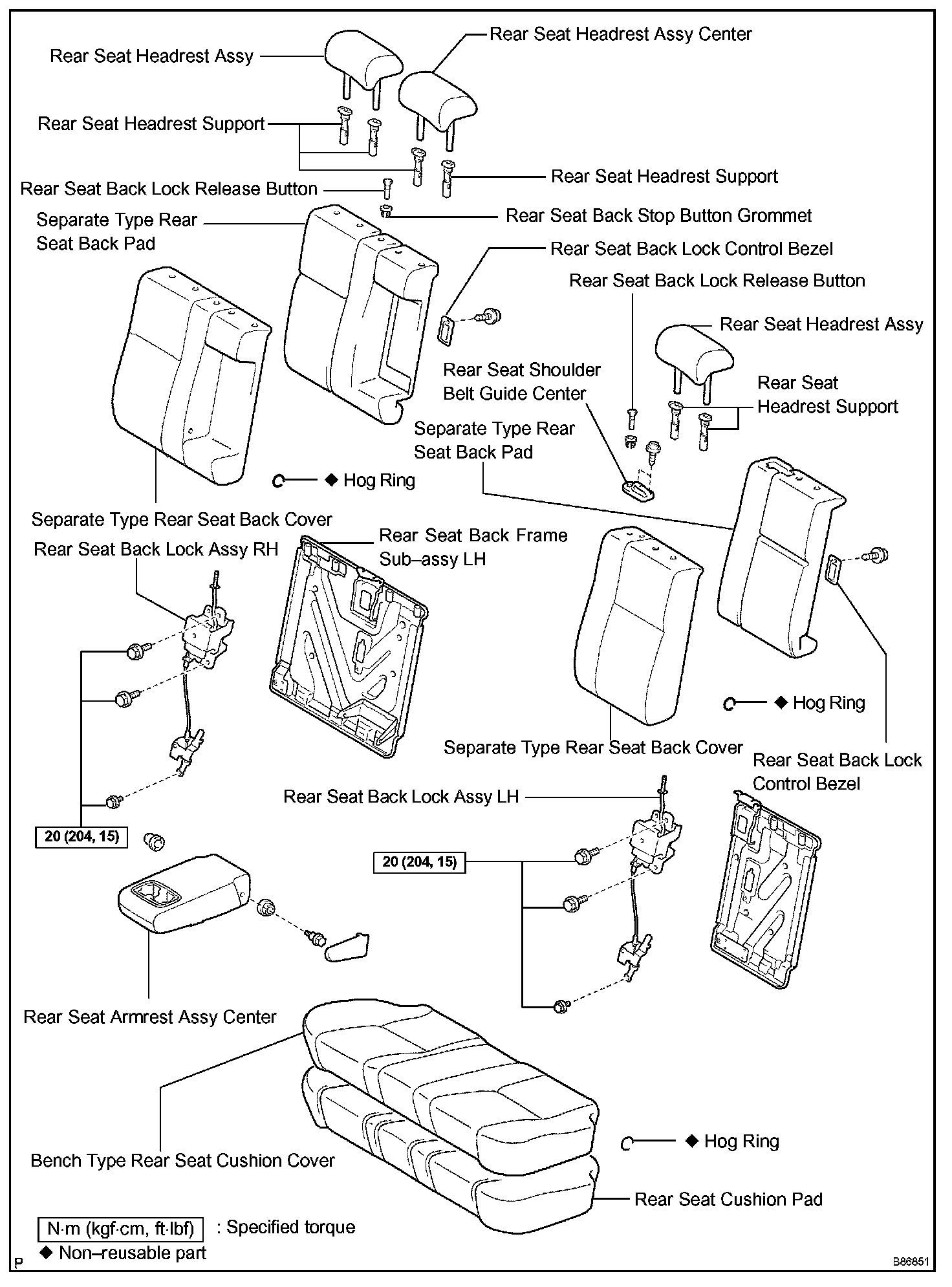

Rear Seat Assembly:
Front Seat Assembly (Manual Seat Type):
Rear Seat Assembly:
