Blower Motor: Service and Repair

Blower Assy:

BLOWER ASSEMBLY

OVERHAUL

1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
2. REMOVE HEATER TO FOOT DUCT NO.1
3. REMOVE BLOWER ASSEMBLY
4. REMOVE CLEAN AIR FILTER




5. REMOVE COWL WIRE NO.2
a. Remove the clamp and cowl wire No.2




6. REMOVE RECIRCULATION DAMPER SERVO SUB-ASSEMBLY

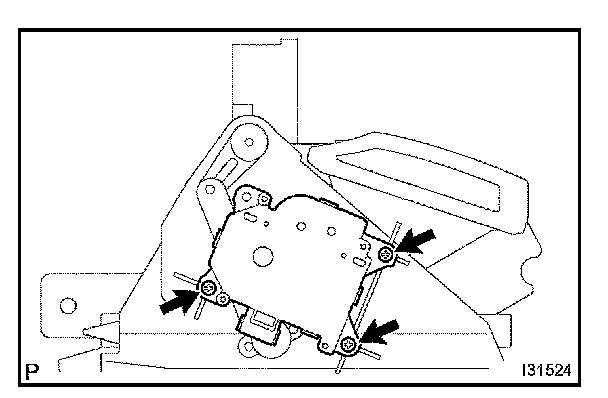

a. Remove the 3 screws and recirculation damper servo sub-assembly.




7. REMOVE INSTRUMENT PANEL WIRE NO.3
a. Manual A/C model:

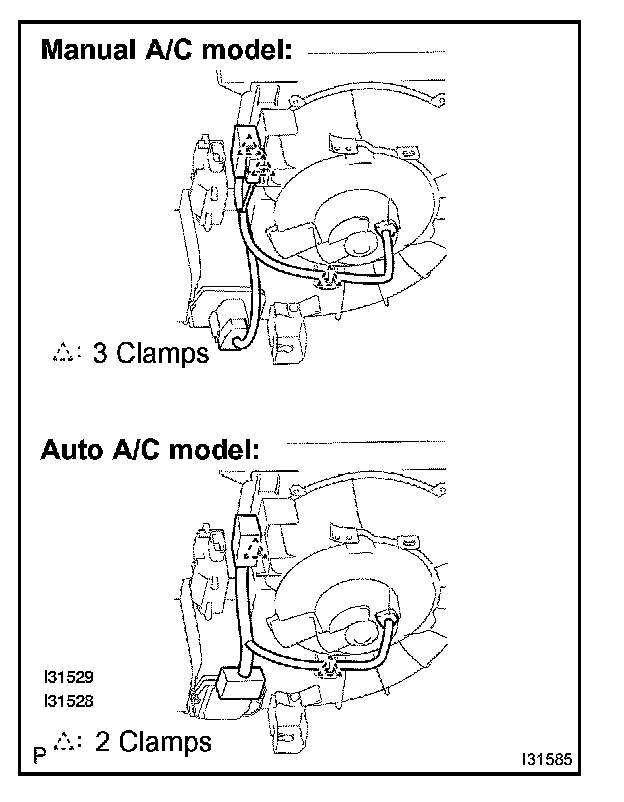

Disconnect the connectors, remove the 3 clamps and instrument panel wire No.3.
b. Auto A/C model:
Disconnect the connectors, remove the 2 clamps and instrument panel wire No.3.




8. REMOVE BLOWER RESISTOR (MANUAL AIR CONDITIONING)

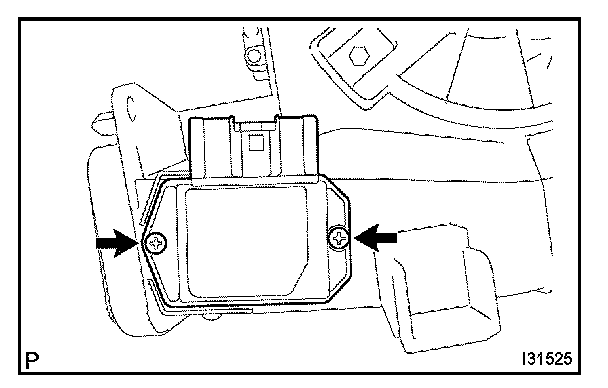

a. Remove the 2 screws and blower resistor.




9. REMOVE BLOWER MOTOR CONTROL (AUTO AIR CONDITIONING)
a. Remove the 2 screws and blower motor control.




10. REMOVE BLOWER W/FAN MOTOR SUB-ASSEMBLY
a. Remove the 3 screws and blower w/fan motor sub-assembly.

11. INSTALL BLOWER ASSEMBLY
12. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
