Blower Motor: Testing and Inspection

BLOWER W/FAN MOTOR SUB-ASSEMBLY

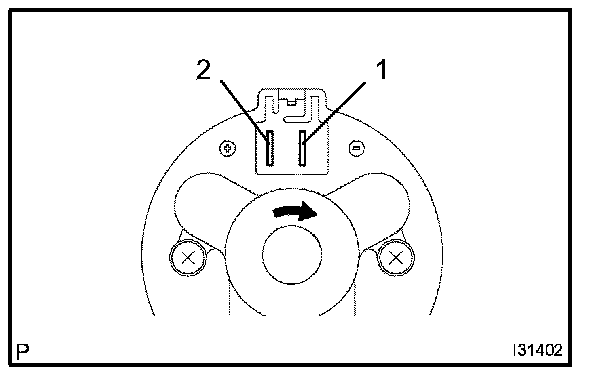

a. Connect the positive (+) lead from the battery to terminal 2 and negative (-) to terminal 1, then check that the motor operation smoothly.
If operation is not as specified, replace the blower motor.
