Cabin Air Filter / Purifier: Service and Repair

Air Conditioning Filter

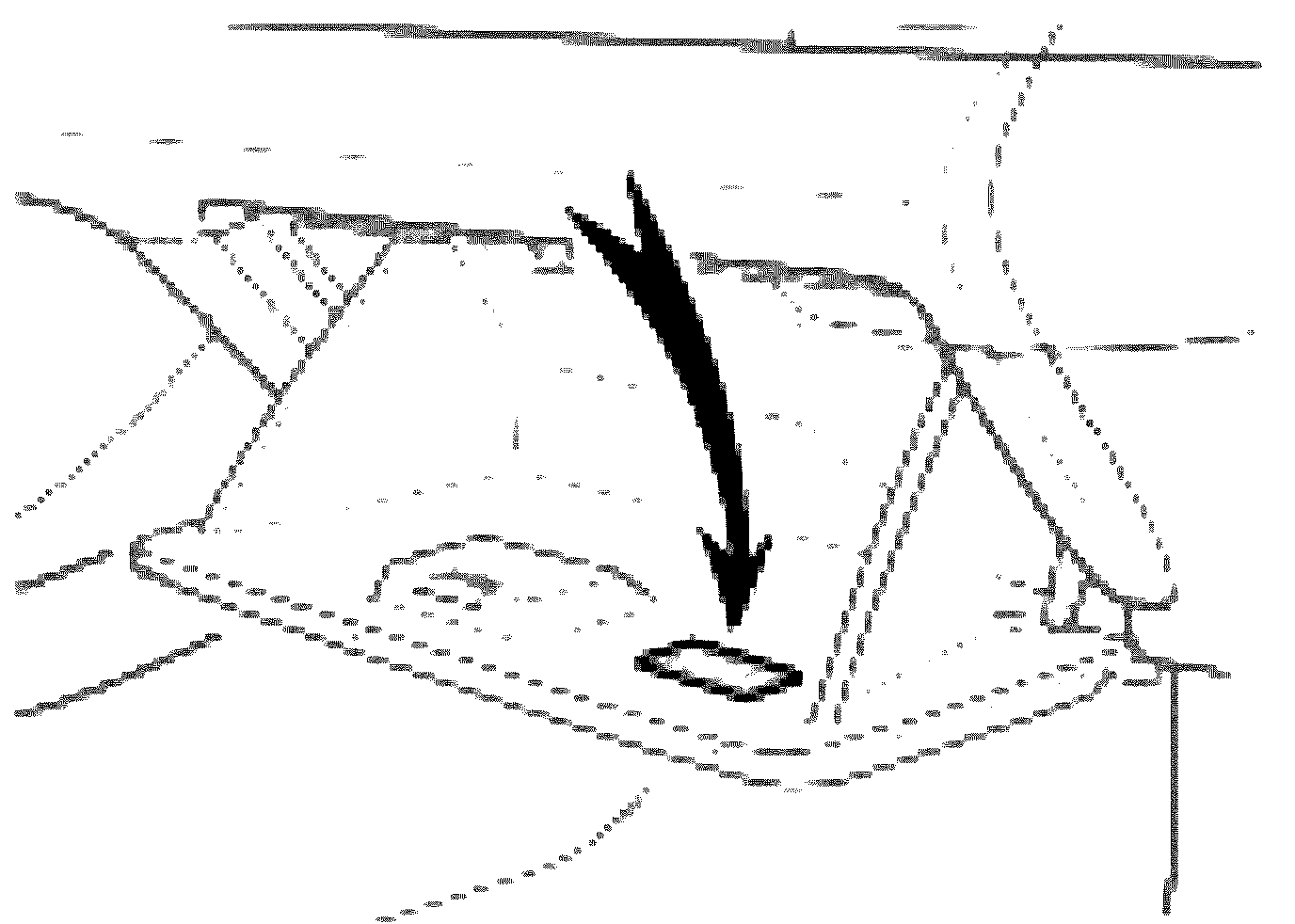

The air conditioning filter information label is placed inside the glove box as shown and indicates that a filter has been installed.

The air conditioning filter prevents dust from entering the vehicle through the air conditioning vent.

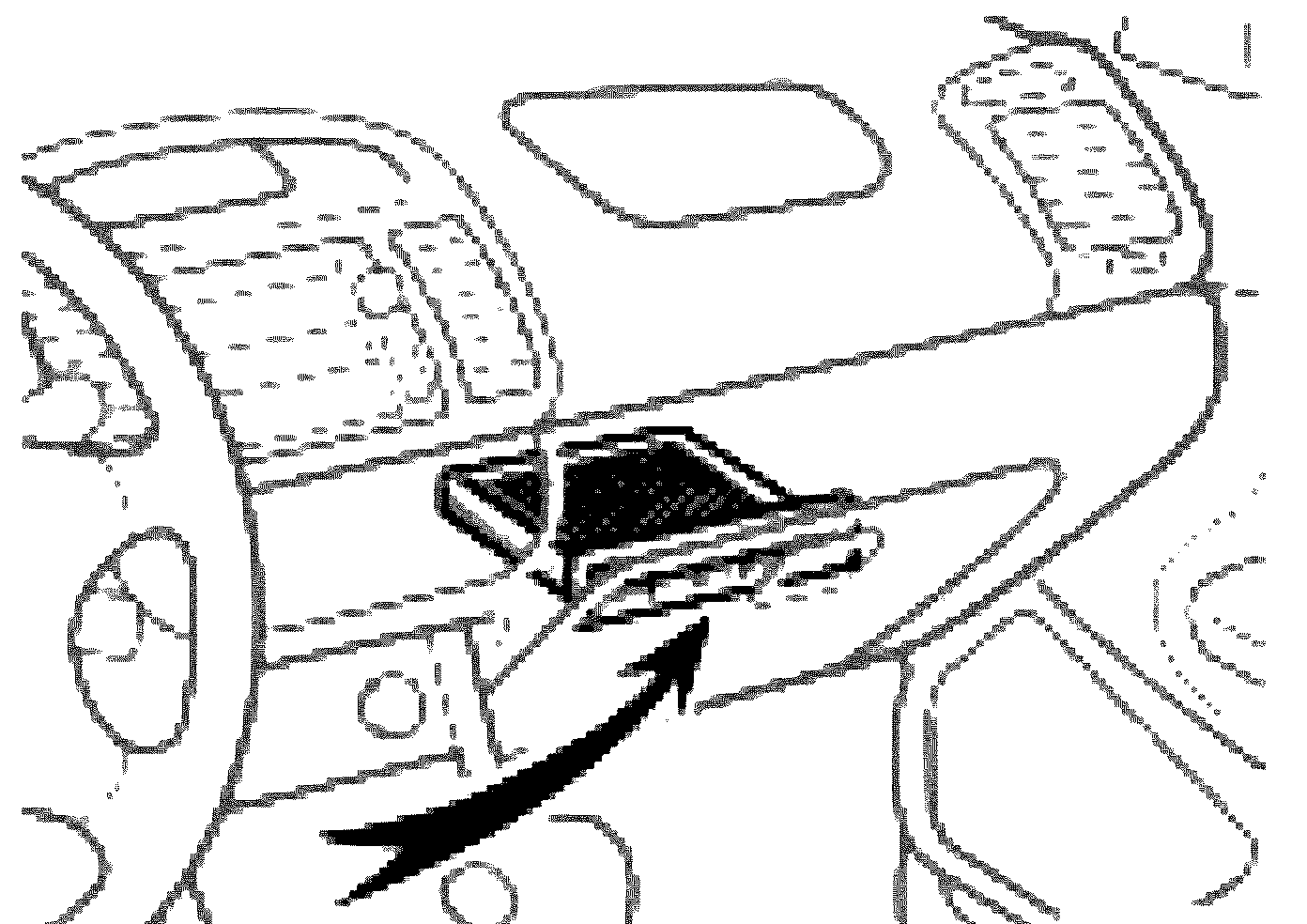

The air conditioning filter is located behind the glove box.

Checking and replacing the air conditioning filter

The air conditioning filter may clog after long use. The filter may need to be replaced if the air flow of the air conditioning and heater experiences extreme reductions in operating efficiency, or if the windows begin to fog up easily in FRESH mode.

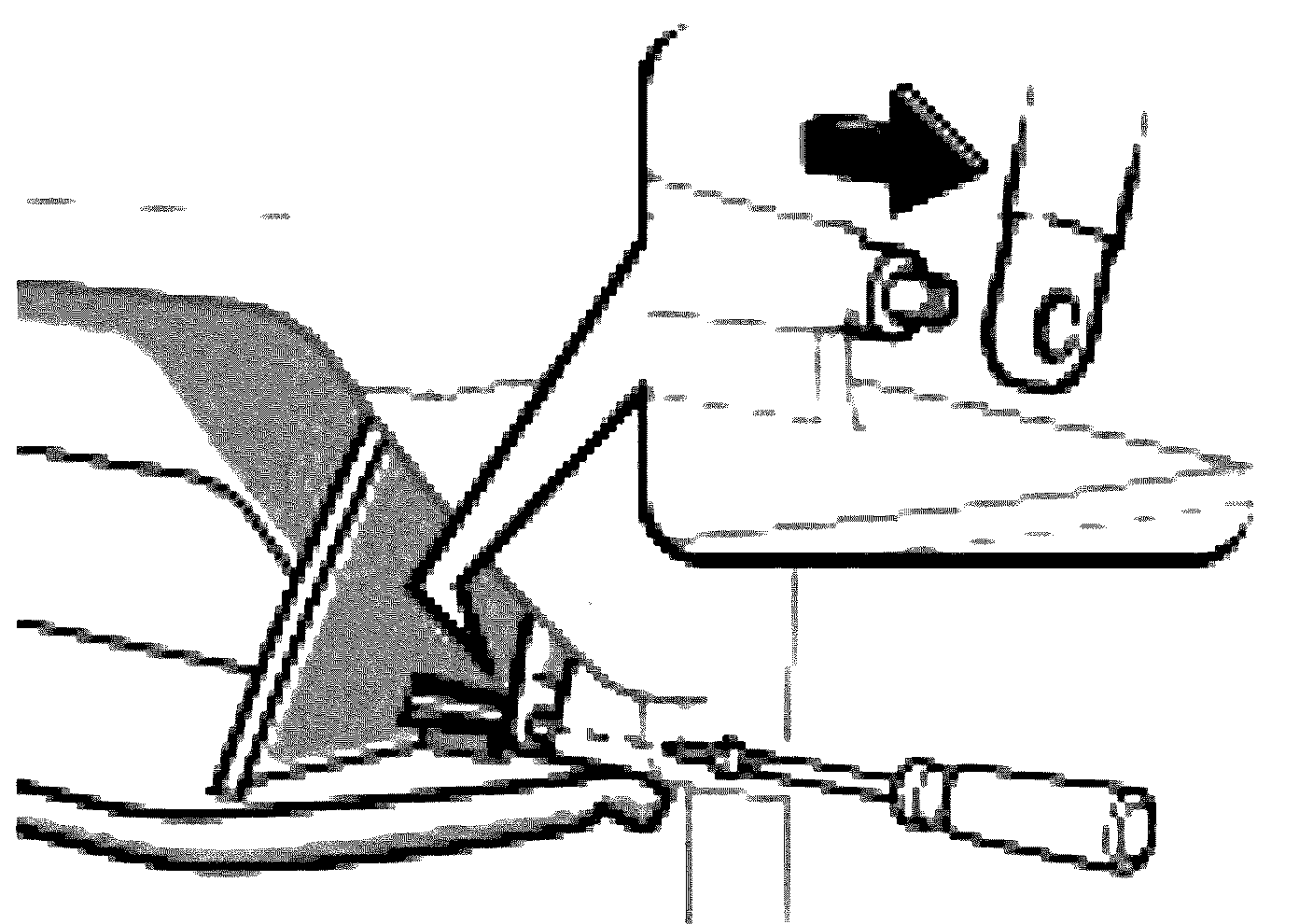

1. Open the glove box. Remove the screw with a Phillips-head screwdriver and slide the hook as shown.

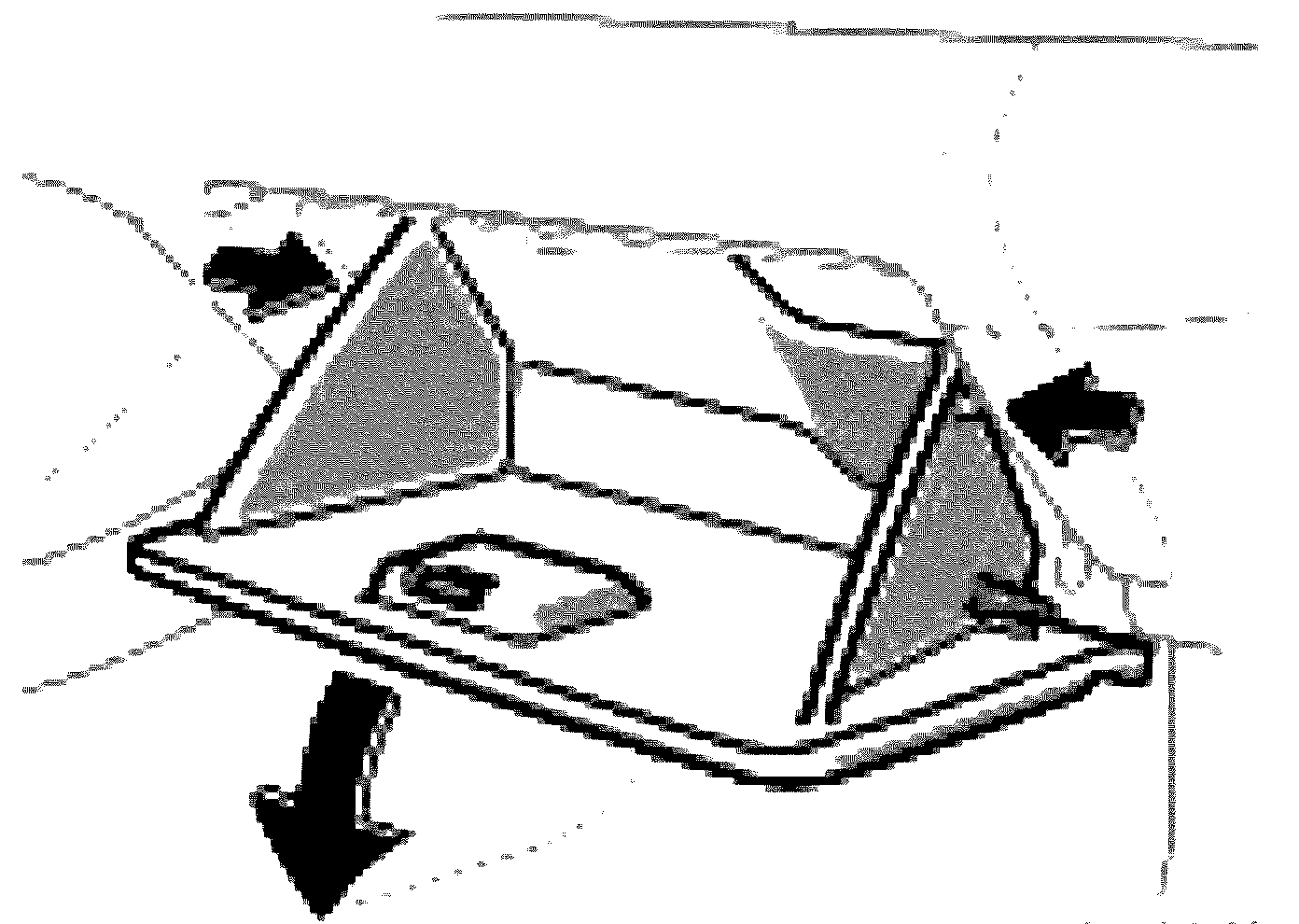

2. Push each side of the glove box to disconnect the claws.

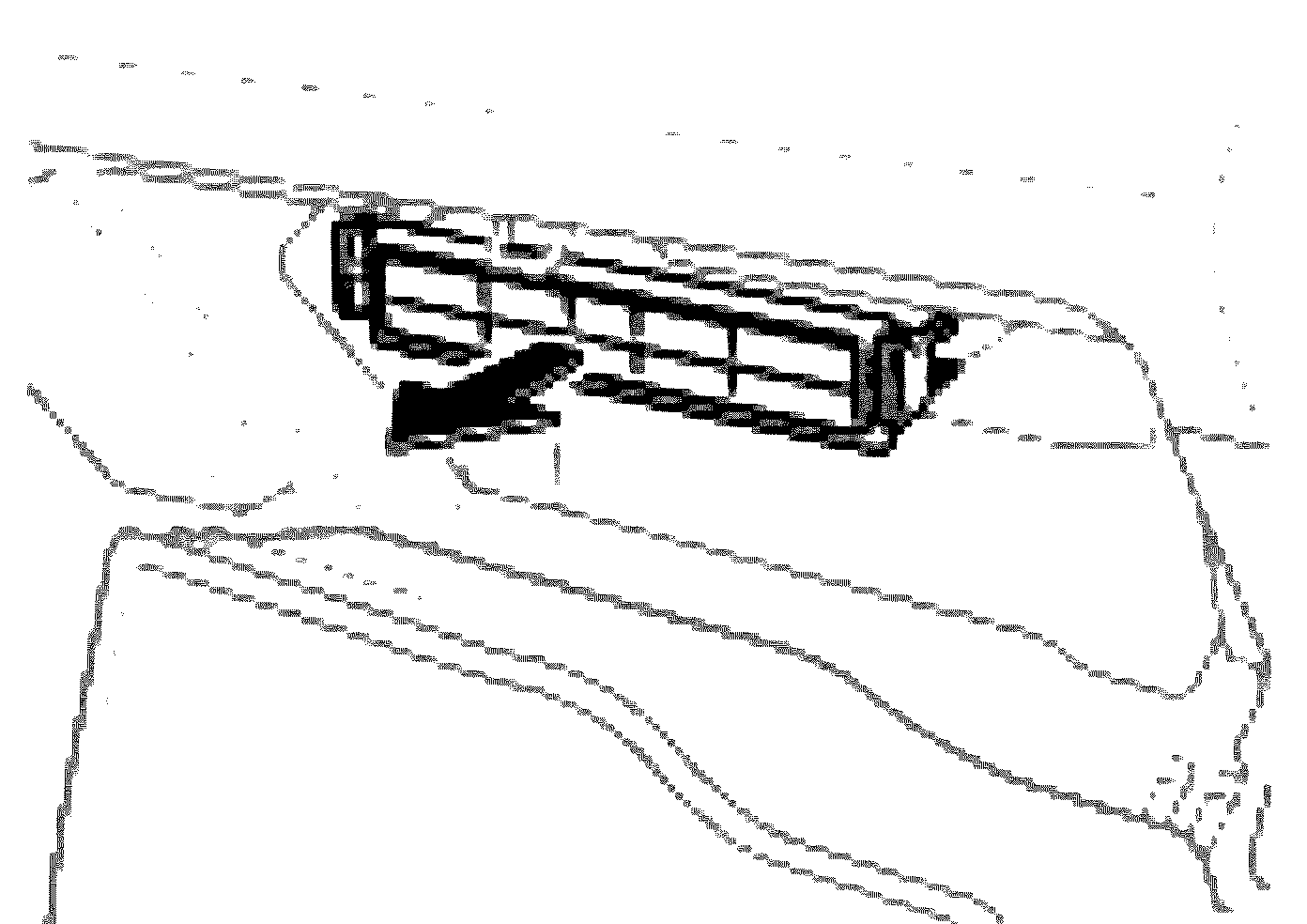

3. Remove the filter case from the filter outlet as shown.





4. Remove the filter from the filter case.
5. Inspect the filter on the surface. If it is just moderately dusty, it may be cleaned by blowing compressed air from the reverse surface. Do not wash or oil the filter.
If it is dirty, it should be replaced.

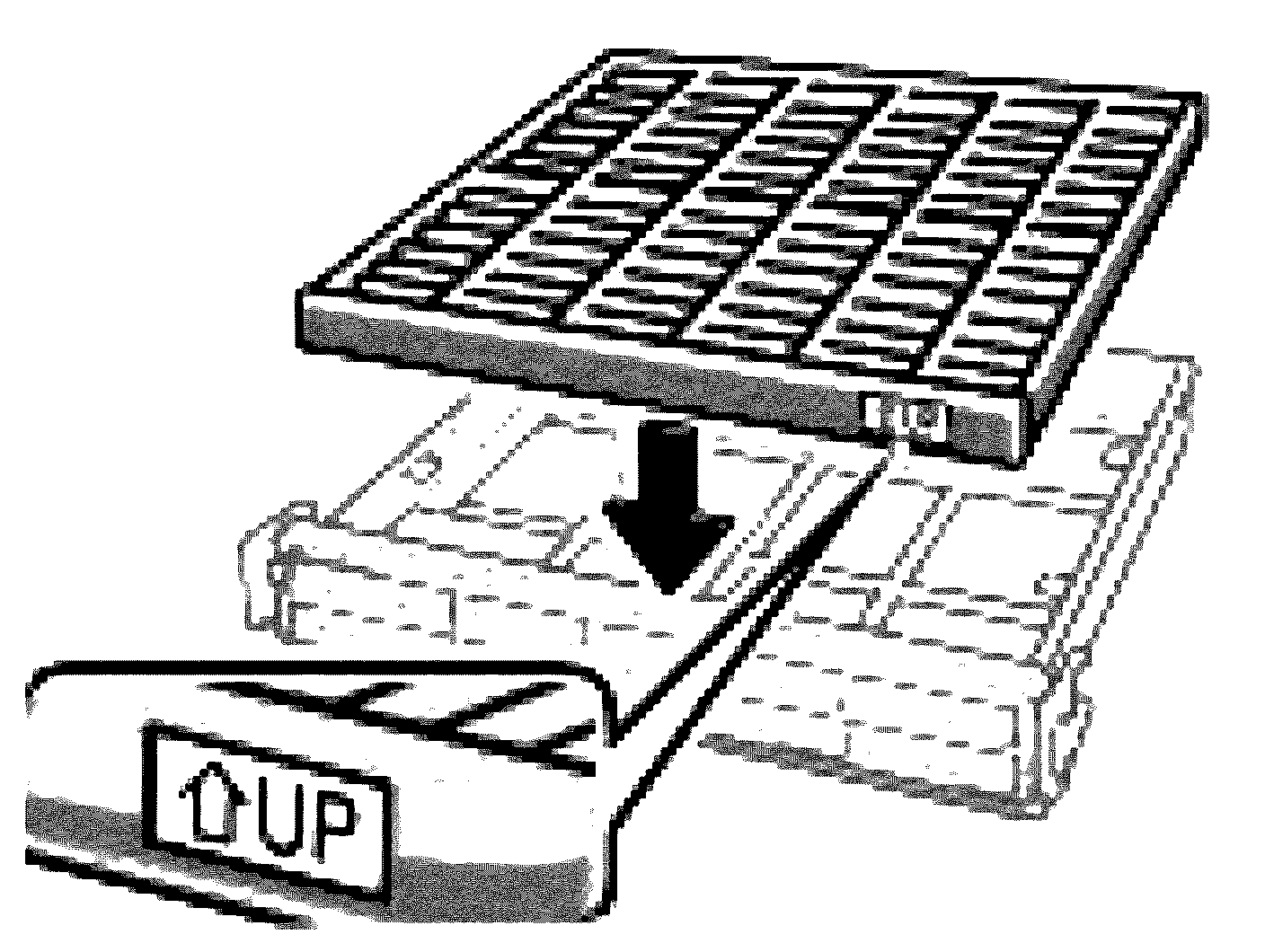

When installing the filter in the filter case, keep the "UP" mark pointing up.
