Cigarette Lighter: Service and Repair

Audio & Visual System Location:

CIGARETTE LIGHTER ASSEMBLY

REPLACEMENT

1. REMOVE FRONT ASH RECEPTACLE ASSEMBLY

2. REMOVE CIGARETTE LIGHTER ASSEMBLY

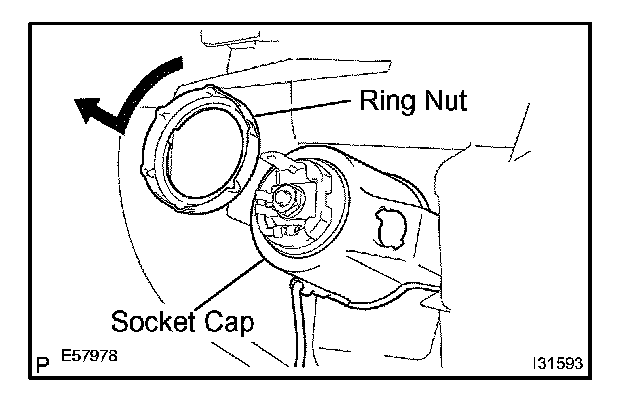

a. Rotate the ring nut counterclockwise to remove it.
b. Remove the cigarette lighter assembly from the instrument panel ash receptacle assembly.

3. INSTALL CIGARETTE LIGHTER ASSEMBLY
a. Properly position the socket at the cutout of the instrument panel ash receptacle assembly and insert them.
b. Install the socket cap.
c. Rotate the ring nut clockwise from the backside.
