Body - Moonroof Initialization Procedure

PRODUCT GENERAL INFORMATION
PG015-01
REVISED

August 17, 2001

Title:
MOON ROOF INITIALIZATION

Models
'02 - '06 Camry

Introduction

This bulletin outlines the initialization procedure for the moon roof on 2002 - 2006 model year Camry vehicles. If the battery has been disconnected, the sliding roof ECU will not be able to detect and memorize the moon roof position, resulting in the following features being inoperative:

^ One-touch tilt up and down with jam protection.

^ One-touch slide open and close with jam protection.

Applicable vehicles:
^ 2002 - 2006 model year Camry vehicles.

Initialization Procedure

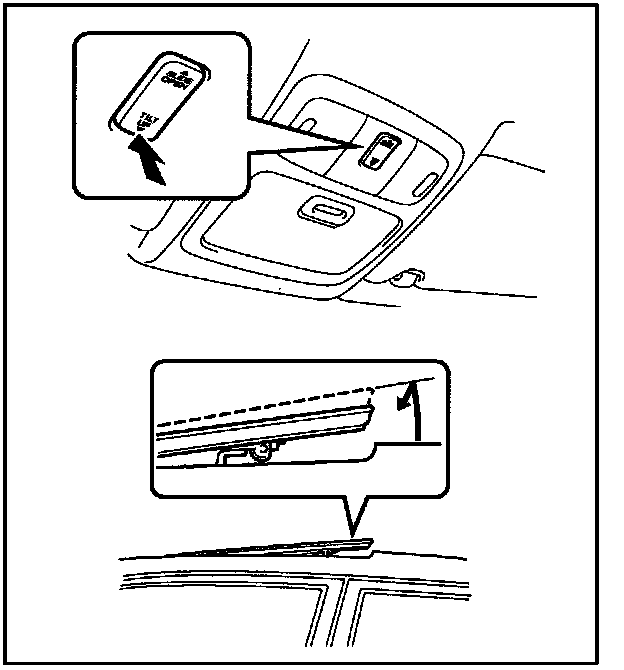

1. Push and hold down the "TILT UP" side of the switch until the moon roof tilts all the way up and then tilts down slightly (approx. 10 mm [0.39 in.] at the rear).

2. Check for proper operation of the "one-touch slide open/close" and "one-touch tilt up/down" functions by pushing the switch briefly to the "SLIDE OPEN" and "TILT UP" position.

NOTE:
Jam protection function becomes effective through initialization procedures 1 and 2.

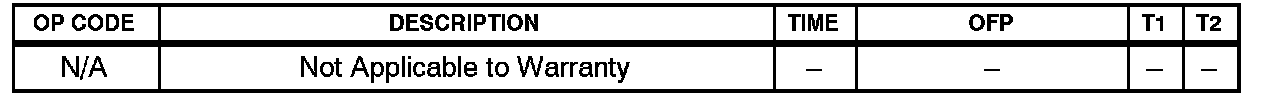

Warranty Information
