Canada - Interior - Console Storage Box Door Improvement

Bulletin
TSB2266

Issue Date
2005-08-02

Market
Canada

Title
CONSOLE STORAGE BOX DOOR

Component
BODY COMPONENT

Models
'05 Camry

INTRODUCTION:
The console storage box door for 2005 model year vehicles has been improved in order to reduce opening effort and help prevent breakage that may occur from incorrect opening procedures.

APPLICABLE VEHICLES:
- 2005 model year Camry vehicles produced BEFORE the Production Change Effective VINs shown below.






PRODUCTION CHANGE INFORMATION:






PARTS INFORMATION:






WARRANTY INFORMATION:

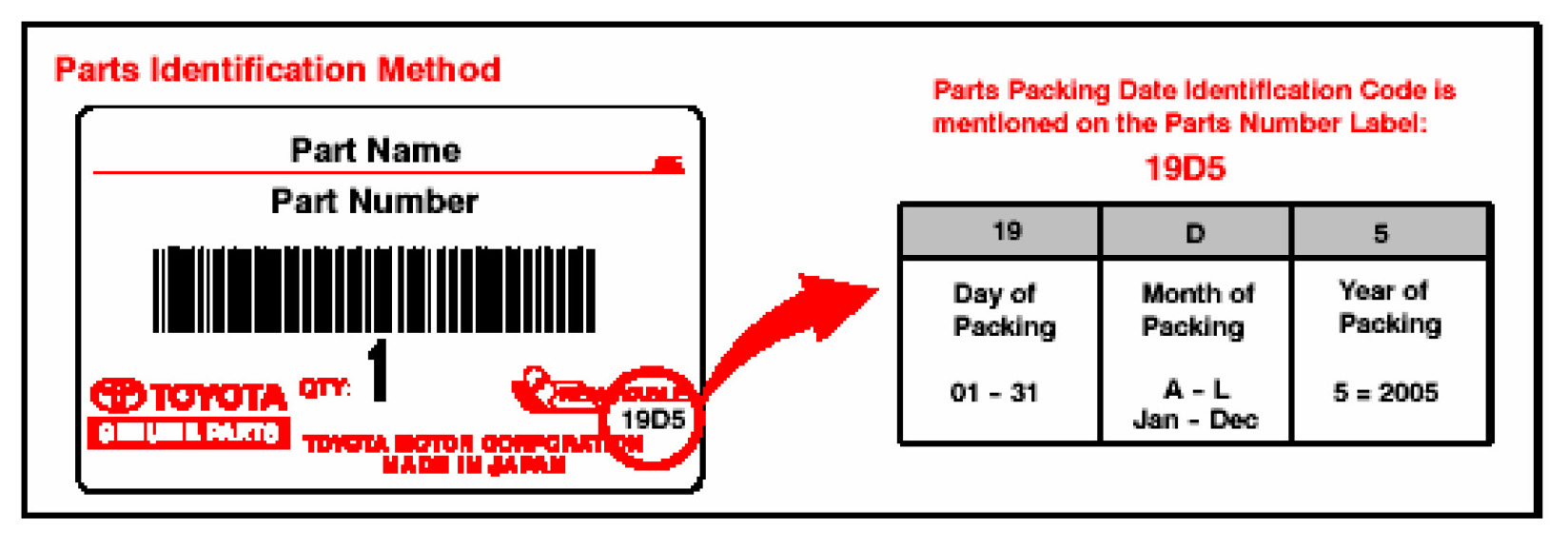

PART IDENTIFICATION METHOD:






Countermeasure became effective from "5C22T" for supply parts. Countermeasure parts can be identified by parts after the date code.

REPAIR PROCEDURE:

NOTE:
Place all removed interior parts on a protected surface to prevent damage. When disconnecting the wiring connectors, do NOT pull on the wires. Pull on the connector only.

1. Set the parking brake.

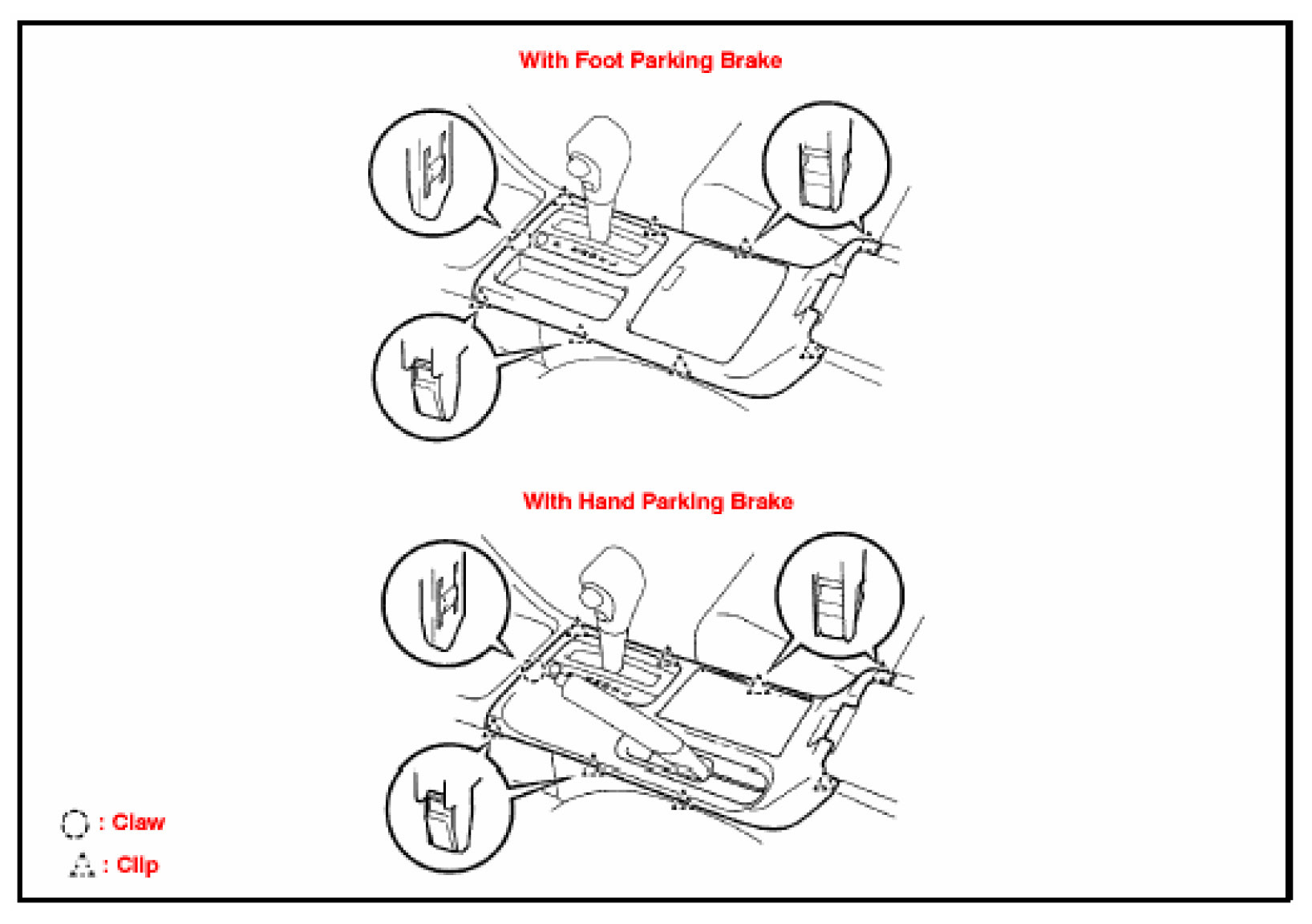

2. Using a molding remover, disengage the claw and 8 clips. Then remove the shifter garnish panel.

HINT:
Set the shift lever in the "N" position (ATM only).

3. Remove the console storage box sub-assembly.






A. Using a molding remover, disengage 4 clips.
B. Disconnect any connectors and remove the console panel sub-assembly.

4. Install the new storage box and reinstall the shifter garnish panel in reverse order.
A. Reconnect any disconnected connectors.
B. Verify that all panels fit together properly with no uneven gaps.
