Canada - Interior - Rear Seat Back Cover Wrinkled Appearance

Bulletin
TSB2657

Issue Date
October 27, 2006

Market
Canada

Title
REAR SEAT BACK COVER WRINKLED APPEARANCE

Component
ENGINE ELECTRICAL

Models
'07 Camry SE

INTRODUCTION:

Some customers may experience a wrinkled appearance on the rear seat back cover on Camry SE vehicles due to a poor fit of the seat cover. The rear seat back cover has been modified to improve its wrinkled appearance.

APPLICABLE VEHICLES:
- 2007 model year Camry SE vehicles produced BEFORE the Production Change Effective VINs shown below.

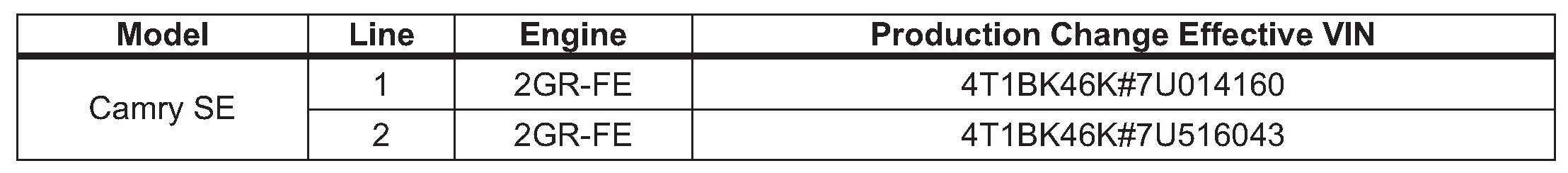

PRODUCTION CHANGE INFORMATION:

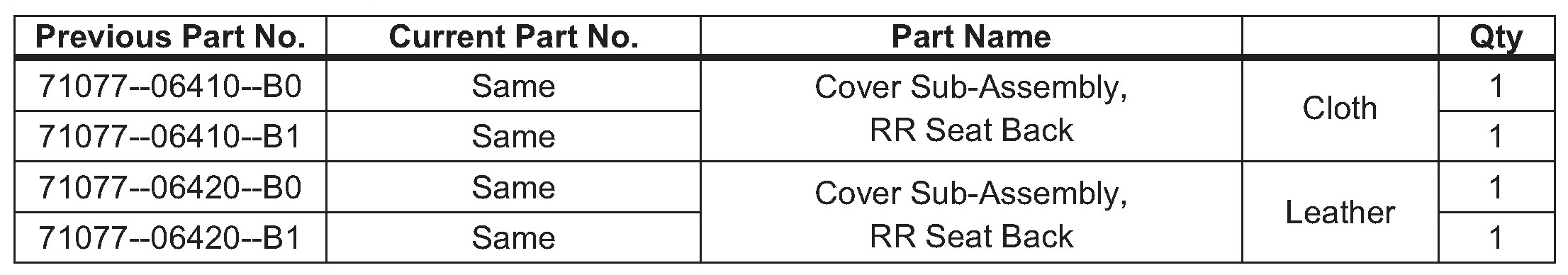

PARTS INFORMATION:






WARRANTY INFORMATION:

REPAIR PROCEDURE:

Remove and replace the rear seat back cover.
Refer to ETAS, 2007 model year Camry Repair Manual: Seat: Rear Seat Assembly (For Fixed Type): Components, Removal, Disassembly, Reassembly, and Installation.
