Interior - Console Box Door Hard to Open/Broken

BODY
BO010-05

Title:
CONSOLE STORAGE BOX DOOR

Models:
'05 Camry (TMMK)

July 5, 2005

Introduction

The console storage box door for 2005 model year vehicles has been improved in order to reduce opening effort and help prevent breakage that may occur from incorrect opening procedures.

Applicable Vehicles

^ 2005 model year Camry (TMMK) vehicles produced BEFORE the Production
Change Effective VINs shown below.

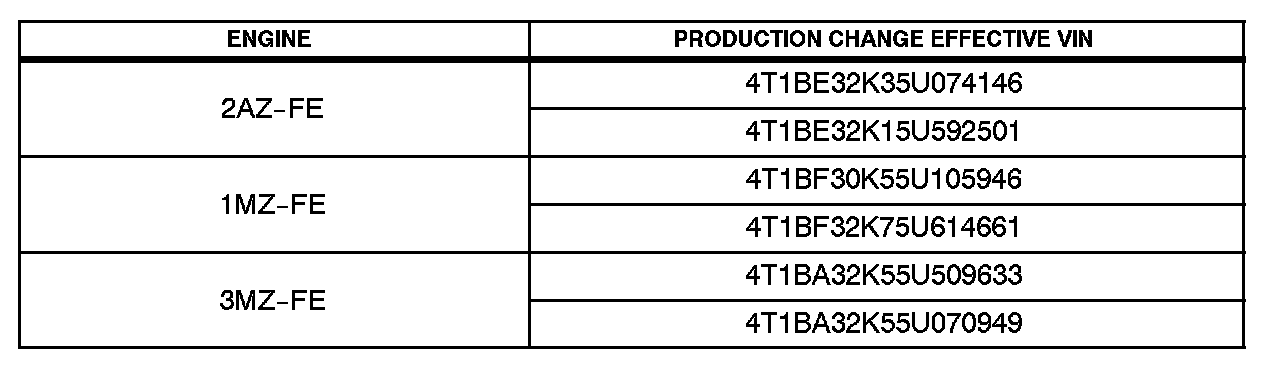

Production Change Information





Parts Information





Warranty Information

Applicable Warranty*:
This repair is covered under the Toyota Comprehensive Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.

Parts Identification Method





Countermeasure became effective from "19D5" for supply parts. Countermeasure parts can be identified after the date code below.

Repair Procedure

NOTE:
Place all removed interior parts on a protected surface to prevent damage. When disconnecting the wiring connectors, do NOT pull on the wires. Pull on the connector only.





1. Set the parking brake.

2. Using a molding remover, disengage the claw and 8 clips. Then remove the shifter garnish panel.

HINT:
Set the shift lever in the "N" position (ATM only).

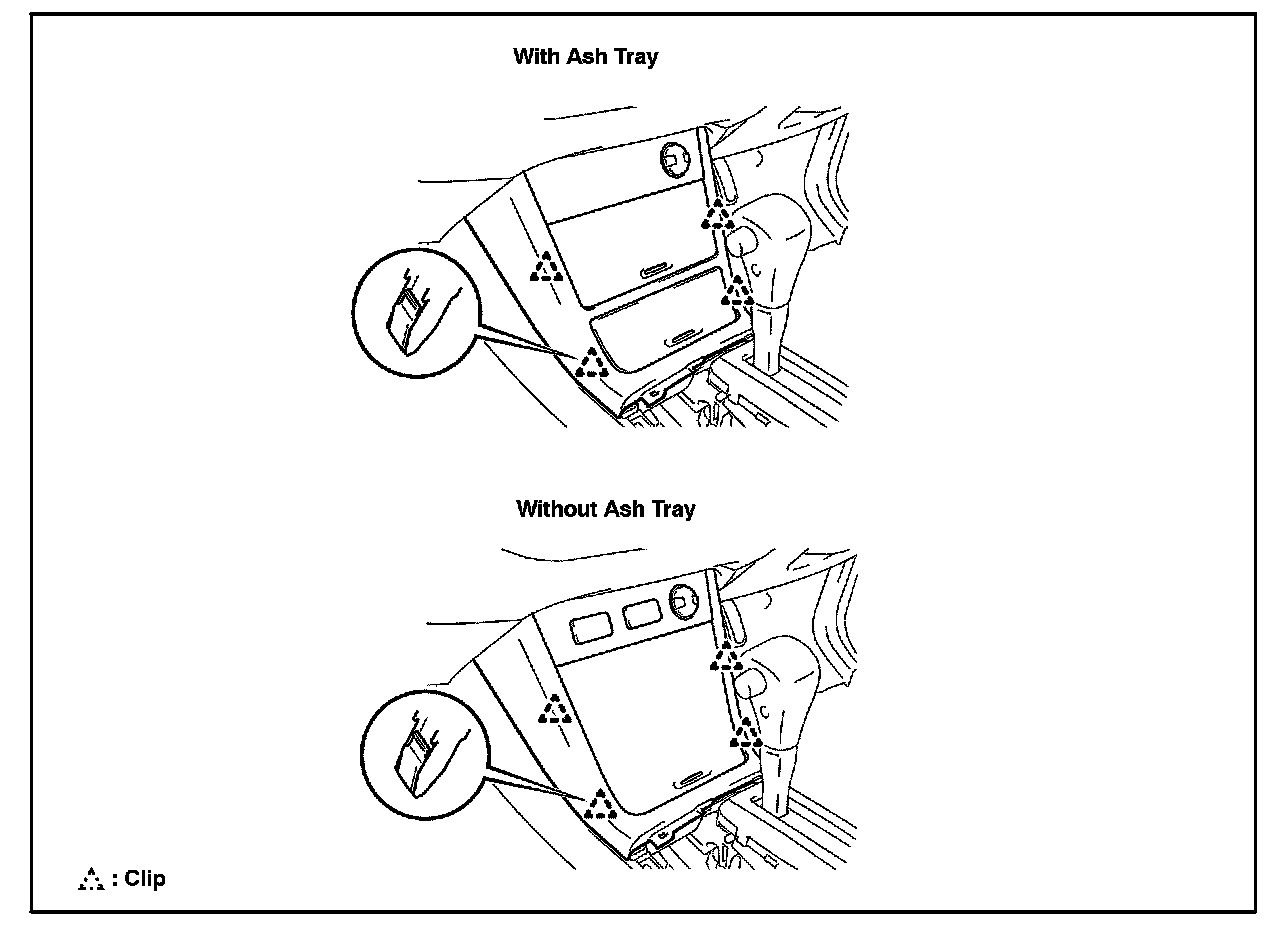

3. Remove the console storage box sub-assembly.

A. Using a molding remover, disengage 4 clips.

B. Disconnect any connectors and remove the console panel sub-assembly.

4. Install the new storage box and reinstall the shifter garnish panel in reverse order.

A. Reconnect any disconnected connectors.

B. Verify that all panels fit together properly with no uneven gaps.
