Wipers/Washers - Windshield Wiper Identification

BODY
BO031-01
REVISED

Title:
WINDSHIELD WIPER REPLACEMENT

Models:
'01 - '05 Camry

December 7, 2001

TSB REVISION NOTICE:
August 5, 2004: The applicable model years, Introduction and OEM Blade Identification information has been changed. The Service Blade Identification and Metal Plate Orientation sections have been removed.
All previous versions of this TSB should be discarded.

Introduction

The following information about windshield wiper identification and replacement is being provided to assist dealers.

Carefully inspect the wiper blade to properly identify which system is used because the two systems are NOT interchangeable.

Applicable Vehicles

^ 2001 - 2005 model year Camry vehicles.

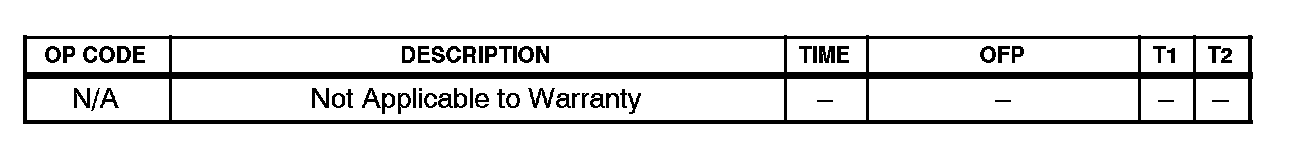

Warranty Information

OEM Blade Identification

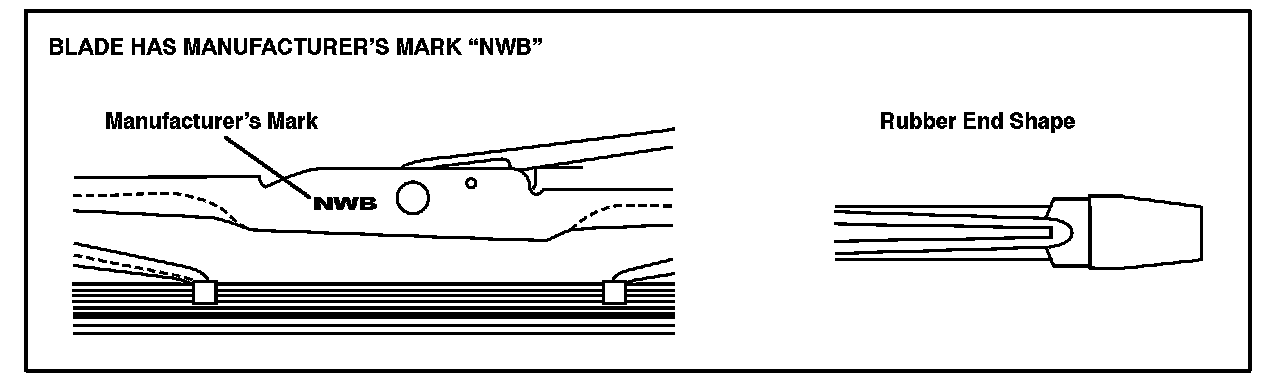

If the windshield wiper blade assembly has a manufacturing mark as shown.

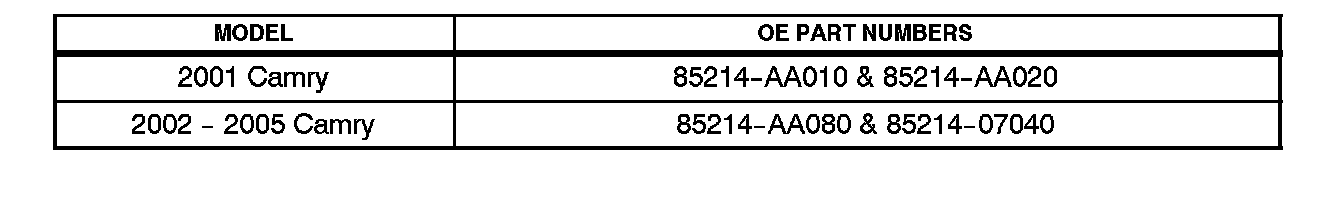

The part numbers should be used:

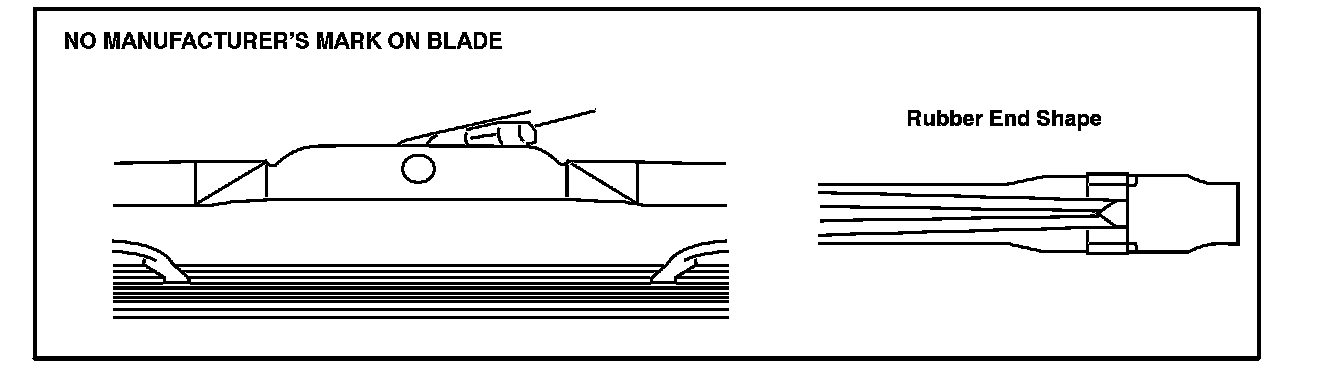

If the windshield wiper blade assembly does NOT have a manufacturing mark, as shown.





The part numbers should be used:
